Food Dedicated Milling Machine

LNJM Series Pharmaceuticals & Food Dedicated Jet Mill

General

Our company has held the key project of the Provincial Science and Technology Department named “Research on Cryogenic Ultrafine Grinding Equipment for Medicine” (Project No. 020SG011-44). We have made a breakthrough in inventing the LNJM series medicine and food dedicated grinding machine. The effective food Food Dedicated Milling Machine have been successfully introduced in engineering practice and have a good performance.

LNJM Series Pharmaceuticals & Food Dedicated Jet Mill is certificated by GMP and FDA.

1..The ultrasonic airflow makes the materials to collide and abrade each other, that ensures the purity without contamination Cooling flow keeps the temperature below 10℃ ( Normal is 10℃) during grinding, make sure the products’ natural characterthe equipment is made of stainless steel, Surface ,

2. Smoothness can achieve Ra = 0.4 um, and easy to clean

3. The outer face end seal technology(unique technology), ensures obtain the strict particle size distribution and  the precision of classification

4. Combined excellent dynamic balance and high quality imported bearing, ensures the stability of product under high speed operation

5. Collector filter material is certificated by GMP & FDA, collecting efficiency can be up to 99.99%; seal negative pressure operation without contamination

6. PLC automatic control system can connect with DCS, easy operation

7.Easy to dismantle and clean, disassembling part adopts quick bayonet connection, main parts have assisted opening device, and can customized design CIP/SIP online cleaning system

8. Assistance for URS & 3Q certification

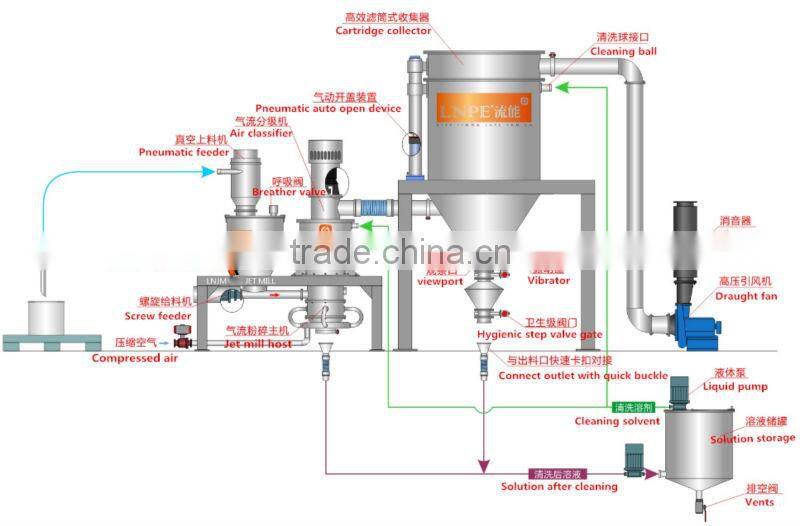

Flowchart

Features

1. High grinding efficiency  The unique multi-force field provides high efficiency in grinding soft and fibrous materials.

For example, wall of ganoderma can be broken efficiently.

2.  Keeping the original property of materials  Ideal cooling flow field prevents the Chinese medicine materials from going

 bad due to the rising of local temperature. The natural properties of medicine and health care products can be remained in cryogenic grinding.

3. No contamination and easy to clean with smooth inner surface. Besides, it has small covering area,

4. low noise emission, no vibration and wide range of application. The products meet the pharmaceutical GMP (Good Manufacturing Practice) standard.

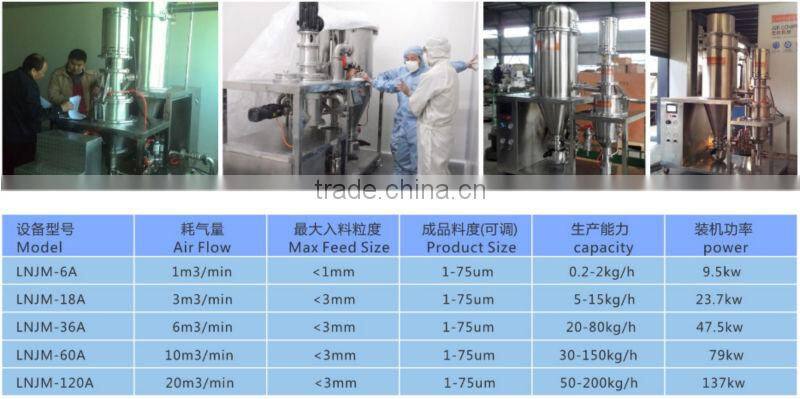

Technical Data

 Personalized design to solve the affairs on grinding and classification.
