Home > Products > Testing Bench > Diesel Pump Test Bench

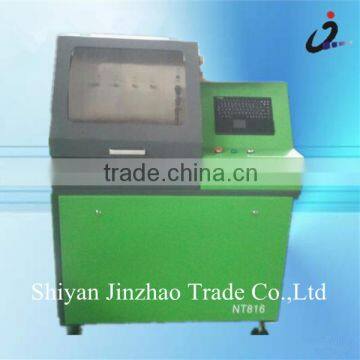

Diesel Pump Test Bench
- 10 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Henan, China | Brand Name | Nanyang Nantai | |
Model Number | CR-NT816 | Power | Electronic | |
Usage | Auto Testing Machine |
Product Description
Specifications
Fuel Injection Pump Test Bench1. High test precision
2. Output Power:7.5-15KW
3. Brand: Nanyang Nantai
4. Model:CR-NT816
Fuel Injection Pump Testing Bench
Functions:
1. Full-automatically detect injection volume of diverse common-rail oil pump, return volume, pump chamber pressure, oil supply pressure, sealing performance, performance of measuring unit ZME control valve, equip domestic flow sensor for monitoring flow, pursuant to initial data, judge whether single index and overall property are qualified or not.
2. Full-automatically detect various solenoid valves controlling injection volume and return volume of common-rail injector under different working conditions such as rating, idling, correction, pilot injection, equipped with domestic flow sensor for implementing flow monitoring, pursuant to initial data, judge whether single index and bulk property or oil injectors are qualified or not.
3. Pump nozzle and electronic unit pump can be checked through fixture and additional system.
4. Diverse electronic high pressure oil pump such as VP37 VP44 can be tested by means of additional system.
5. Windows system and humanized operating procedure, client can add data by himself, save printed data and customer information.
6. Multi-machine network and remote control are available.
Equipment Characteristics:
1. High degree automation: Automation applied in product detection.
2. High import configuration takes up 50% of equipment cost.
3. Flow sensor for implementation of the oil mass detection and full closed-loop control.
4. Compact universal test bench can successively complete test for 4-6 injectors in one setup.
5. Remote monitoring is convenient for service and software upgrading.
Specifications:
Power | 5.5KW,7.5KW,11KW,15KW,18.5KW |
Adjustable rotation speed range | 0~4000rpm |
Double series of graduates | 45/150CC |
Volume of oil tank | 100L |
Temperature stabilization | 40±2°C |
Test oil filtering unit | 5μ |
DC. Supply | 12/24V |
Feed pressure | 0~0.4MPa (low), 0~4MPa (high) |
Air pressure (MPa) | -0.03~0.3 |
Rack travel range | 0~25mm |
3-phase power supply | 380V/50Hz or on request |
Flywheel inertia’s moment | 0.8kg/m2 |
Center height | 125mm |
Output power | 7.5kw~15kw |
Overall dimensions | 200X90*170CM |
Net weight (kg) | 1000 |
Average trouble-tree working time of test stand | ≥2500h. |
Product Display:
Qualification:
Warehouse:
Packing:
Loading:
Contacts:
