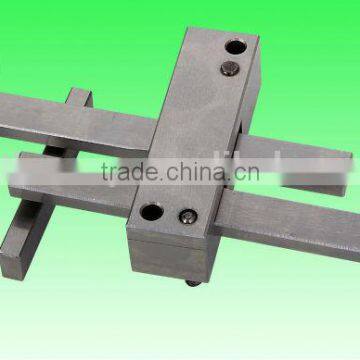

HASCO Standard Latch Locks Z170/ Parting Lock Sets

FOB Price

USD $58.34 - $100 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	B-15		Shaping Mode	Plastic Injection Mould
Product Material	Steel		Product	Other, plastic injection mold

Feature:

A minimum of two latches must be mounted symmetrically
In such a way as to prevent tilting of the plate to be drawn.
The reference surfaces of the housing with base plate , the control bar and the latch bar with spacers must be exact at the same height and right-angled to the direction of the mould opening movement
This latch lock is the precise standardized item, please do not apply together with other own customer machined parts, we will not be responsible for any anomaly caused by it.
It should be installed in the precise mould base.
If need to maintain, please remove the latch locks first.
After installed, carry out a functional test, check whether the Individual parts of the latch lock units moves smoothly or the stroke is applicable. Recommend testing on Matched molds machine or Injection machine, NO Lifting Machine.
