Heating and Cooling Plastic Mixer Unit
- SHANGHAI/ZHANGJIAGANG PORT
You May Like
Product Details
| Condition | New | Mixer Type | Screw | |
| Application | Powder | Place of Origin | Jiangsu, China | |
| Brand Name | XINKE | Model Number | SRL-W | |
| Max. Loading Capacity | 640L | Voltage | according to customer | |
| Power(W) | 7-110 kw | Dimension(L*W*H) | according to different capacity | |
| Certification | CE, ISO90001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

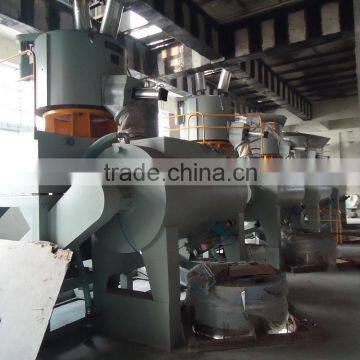

HEATING AND COOLING MIXER
1. SRL-Z series mixer units are widely used in mixing, drying, colouring all kinds of resin such as PVC, PP, PE. They can also be used in dryness of ABS and polycarbonate, and mixing hydroxybenzene, aldehyde resin.
2. The unit consists of one mixer and one cooling mixer. The materials from hot mixer get into the cooling mixer automatically to be cooled, so remained gas is eliminated, and agglomeration is avoided.
3. Absorbing advanced foreign technology and PLC control system, we designed SRL-Z series heating/cooling mixing unit, which offers high automatic level, good mixing effect, complete function, compact structure, and perfect appearance. The unit is widely used in mixing, drying and coloring various plastics.
Main Technical Parameter
| Model | SRL-W 200/500W | SRL-W 300/600W | SRL-W 500/1000W | SRL-W 500/1600W | SRL-W 800/2000W | SRL-W 800/2500W | SRL-W 1000/3500W | SRL-W 800*2/4000W |
| Total volume(L) | 200/500 | 300/600 | 500/1000 | 500/1600 | 800/2000 | 800/2500 | 1000/3500 | 1600/4000 |
| Effective volume(L) | 150/320 | 225/384 | 375/660 | 375/1024 | 560/1280 | 560/1600 | 750/2240 | 1120/2550 |
| Production capacity(kg/h) | 370~400 | 550~600 | 800~1000 | 800~1000 | 1300~1500 | 1300~1500 | 1800~2000 | 2600~3000 |
| Main shaft speed(r/min) | 490/980/70 | 480/964/70 | 441/886/60 | 441/886/51 | 330/660/51 | 330/660/51 | 330/660/51 | 330/660/51 |
| Motor power(kw) | 30/42/7.5 | 40/55/11 | 47/67/1.5 | 47/67/18.5 | 83/110/18.5 | 83/110/22 | 110/150/30 | 83/110*2/37 |
| Heating power/cooling medium | 6kw/water | 9kw/water | self-friction/water | |||||
| Weight | 3.5 | 3.8 | 7.8 | 8.5 | 10.5 | 11 | 12 | 13 |
Professional manufacturer in China
1, Our company positively absorbed the Germany and Italy advanced tech on the basis of the original tech.
2, Experience tell us: the higher purity of the recycled raw material, the added value is higher, it will achieve expected investment effect more.
3, The recycling washing granulating production line should take full consideration to the costs of recycling, cleaning, reliability, tech control ,degree of automatics and the suitable cost of investment. It can urge us to progress continuously.
About us
To develop various (PVC,PE,PPR,ABS etc )pipe production line, profile production line ,single/double screw extruder, mixing machine and kinds of plastic auxiliary machines, also can make the machinery non-standard products.Waste plastic recycling equipmen-PET flakes washing line,PP,PE film washing and granulating production line, plastic crushers, plastic dewatering machine, mineral water bottle label remover etc.
We invite the experts in this field to research and produce this machine. The recycling washing granulating production line should take full consideration to the costs of recycling, cleaning, reliability, tech control ,degree of automatics and the suitable cost of investment. It can urge us to progress continuously.
