Product Details
| Place of Origin | Zhejiang, China | Brand Name | Olingen | |
| Model Number | OBB-1 |
Product Description
Wall tile backer board
Specifications
1. Waterproof and insulating XPS
2. Easy to cut and assemble
3. Wet room, shower room
4. Ready to tile
5. ISO certificated

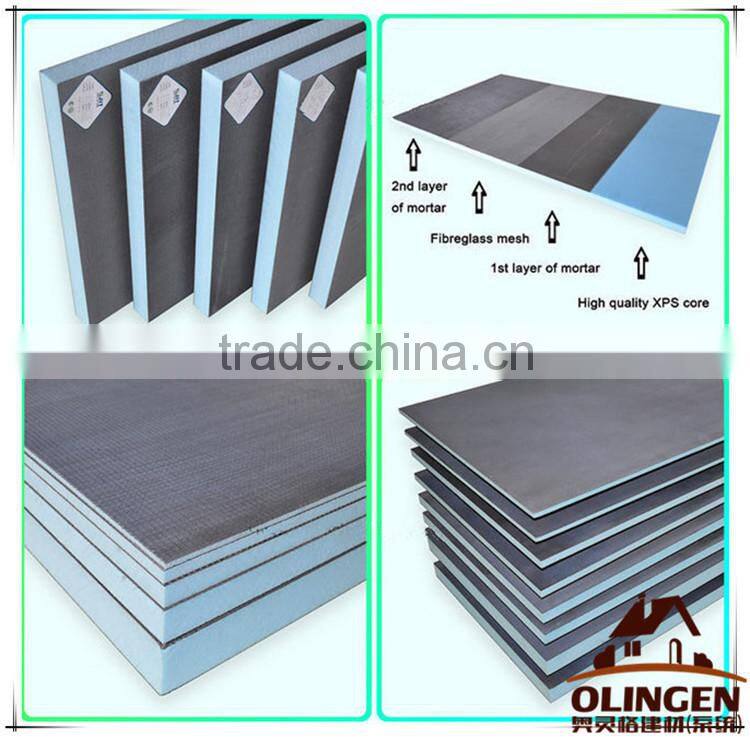

Olingen tile backer boards are manufactured using a high-density and waterproof extruded polystyrene core(XPS) with a polymer modified, glass fibre reinforced cement coating on both sides, which adds rigidity and strength to the board and shower trays.
Made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.
SIZE AVAILABLE :
| Standard dimensions and weight | |||
| Short board | Thickness(mm) | Weight(kg/m²) | Length *width(mm*mm) |
| 6 | 2.7 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 10 | 3.1 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 12 | 3.2 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 20 | 3.5 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 30 | 3.8 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 50 | 4.3 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| Standard dimensions and weight | |||
| Long board | Thickness(mm) | Weight(kg/m²) | Length *width(mm*mm) |
| 6 | 2.7 | 2440*600 | |
| 2500*600 | |||
| 10 | 3.1 | 2440*600 | |
| 2500*600 | |||
| 12 | 3.2 | 2440*600 | |
| 2500*600 | |||
| 20 | 3.5 | 2440*600 | |
| 2500*600 | |||
| 30 | 3.8 | 2440*600 | |
| 2500*600 | |||
| 50 | 4.3 | 2440*600 | |
| 2500*600 | |||
Customized sizes and package can be provided as well.
The thickness is not than 80mm
The Width is not than 1200mm
Main applications:
1.Wall and floor insulation for interior and exterior.
2.Underfloor heating
3.Waterproof and insulating projects for wet areas such as bathroom, kitchen, swimming pool,spa.

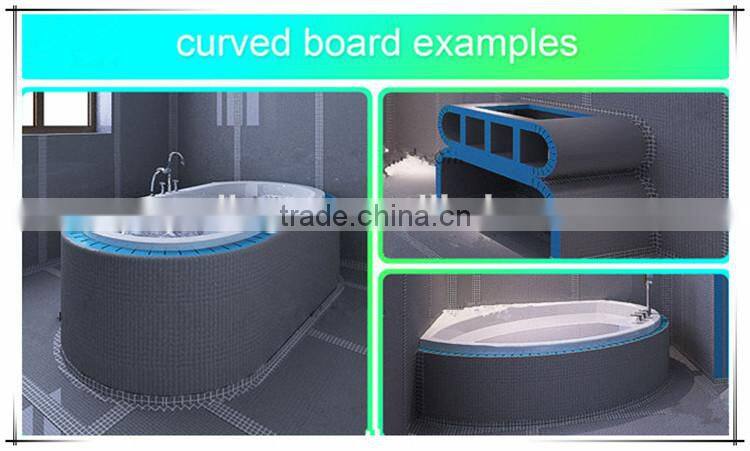

4.Enclosures for bathtubs, columns, steps and water pipes.
