Cement and Glass Fiber Mesh Reinforced XPS Board

Specification:

1. Waterproof and insulating XPS

2. Thickness:4mm~100mm
3. Light weight, easy to cut and assemble

4. ISO certificated

Product Description



Cement and Glass Fiber Mesh Reinforced XPS Board

Advantages of XPS Backer Board

Olingen board is an innovative underlayment for ceramic and natural stone tiles -- suitable for all construction areas and for installation over metal and wooden stud frames, green masonry, and renovation surface.

For this purpose, Olingen board offers the following properties:

• Impact resistant and rigid
• Waterproof and temperature resistant
• Vapour retardant
• Thermally insulating
• Quick and easy to handle and transport
• Easy to cut (with a utility knife)
• Suitable for use on any kind of backgroud substrate
• Suitable for freestanding partition walls, shelves, coverings and similar surfaces

A tile backing you can rely on

Tiling practice today is demanding. Designers want scope, contractors need speed and satisfied clients are paramount. OLINGEN thermal construction board delivers even/time.

OLINGEN thermal construction is so much more than just an item of building material. It combines a number of impressive properties in one product.

Manufactured to the highest specification, OLINGEN tile backer board is the benchmark for dimensionally stable, impervious and durable tiling boards. Shower or steam room, house or hotel, OLINGEN tile backer board is the safe choice. Common installation failures due to water ingress or unsuitable materials such as plywood or plasterboard are banished to the past.

It is available in different thicknesses and has become a genuine all-rounder because it is so flexible and easy to process.

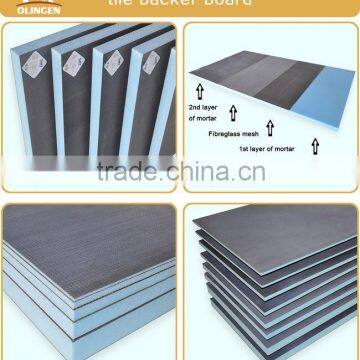

The strength of OLINGEN thermal construction is the composite construction. The hard extruded foam core is reinforced both sides with a fiber glass mesh and special mortar. Strong and lightweight, OLINGEN thermal construction is recommended for use over any substrate or construction. No longer is it necessary to render and plaster new walls or remove old tiles or plaster. Use OLINGEN thermal construction and tiling can start straight away.

Create partitions, insulate a floor for electrical under floor heating, or make a bath panel. OLINGEN  board is the versatile board for all tiling. Whether it is being used as a carrier material on a wall, to clad old substructures and pipes, as a substructure system on the floor, or used to create bathroom furniture, for example, each shape, however sophisticated it is, can be produced individually with OLINGEN thermal construction boards.

Applications

1. as a watertight layer on walls and floors in wet rooms and bathrooms.

2. as an insulation layer in under floor heating to avoid heat loss.

3. as partition walls in wood or steel frames.

4. substitute for gypsum board and fiber cement board; insulation and waterproofing; lighter so

that more easily to install.

5. As enclosures for bathtubs, water pipes, etc.

6,Can very easily and fast formed to be small shelves, washbasins, shower benches and soap

boxes.

7. Combining with OLINGEN curved/shapeable boards, kinds of decorative models can be made with your infinite creativity.

 Type & Size accordingly

The board has the following tolerances:thickness:± 2mm  width:± 2mm   length:± 3mm

 Related Products

 Installation Examples

Company Information



Zhejiang Olingen Building Materials System Co., Ltd is specialized in the producing, designing, selling and installing of building materials. Over the past decades, our company has been constantly expanding its size and developing its production system by resorting to its strong technical research and development capabilities. Its main products include culture stone, gravel, brick, EPS component, soft tile, polystyrene cement products and other building materials alike.



We always adhere to the business philosophy of “best product quality, timely technical service” and the management mode of “normalization, standardization, systematization”. Our sincerity, humility and provenance enable us to work with high sense of responsibility, vocation and urgency. By strictly adhering to ISO 9001 production management system as required, we provide our customers with high-quality products and satisfactory services.

Feel free to contact us if any item is interested to you.

Q1. Why choose Olingen ?

Olingen Buliding Materials is professional and in this field 20 years. We consistently use genuine raw materials including Portland cement, Bayer pigments, BASF adhesive and other aggregate materials for production assuring the quality and reliability of our products. Our products have passed CE and Eurofins Test, the materials are eco-friendly and no harmful for human body, the products can be safely to be used in interior and exterior wall decoration

Q2. Can you provide samples before confirm the order?

A: Yes, we are happy to send you samples for testing purpose, but we need charge delivery cost

Q3. What is your MOQ ?

 The MOQ of 200sq.m for per item, but less than 200 is also available.

Q4. What is your estimated time of delivery?

 About 25 days. Because the main raw material is cement, it needs around 20days to maintain the products to guarantee the strength.

Q5. What is your payment terms?

 T/T,Western Union, Paypal,etc.
