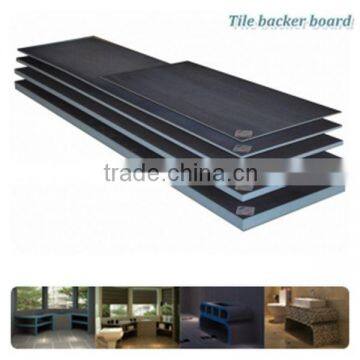

extruded polystyrene foam insulation tile backer board
- SHANGHAI or NINGBO
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Olingen | |
| Model Number | XPS tile backer insulation board |
Product Description
Product name | extruded polystyrene foam insulation tile backer board |
Composition | XPS core,Alkali Mesh,Polymer Mortar Layer |
Quality | Grade A |
MOQ(SQM) | 100 Pieces |
Application | Exterior Wall or Interior Wall |
Loading port | Shanghai Port |
Payment terms | T/T 30% deposit, balance to be paid before shipment |
Delivery time | 25-30 days after receiving 30% deposit |
Characteristics | Eco-saving,Lightweight,moisture-proof,easy construction,acid resistance. |
Quality sample | Offer free sample on your courier account (DHL.UPS.TNT.FEDEX.ECT) |
Usage | wet areas , wash room,ect. |
Standard dimensions and weight
| Thickness(mm) | width(mm) | length(mm) | Weight (kg/m²) | packaging |
| 6 | 600 | 1250 | 2.7 | 20pcs/carton |
| 10 | 600/900 | 1250/2500 | 2.9 | 20pcs/carton |
| 12 | 600/900 | 1250/2500 | 3.0 | 20pcs/carton |
| 20 | 600/900 | 1250/2500 | 3.2 | 10pcs/carton |
| 30 | 600 | 1250/2500 | 3.4 | 10pcs/carton |
| 50 | 600 | 1250/2500 | 4.3 | 6pcs/carton |
Technical Properties
| Property | Assessed to | Rating |
| Xps Density | DIN 53420 | 36 ± 0.02 kg/m3 |
| Thermal Conductivity | EN 12167 | 0.033 W/m.K |
| Compressive Strength (10% deflection) | EN 826 | 300 kPa (30 tonnes/m2) |
| Flexural Strength | ASTM C203 | 0.30 ± 0.02 MPa |
| Water Absorption (2-day immersion) | ISO2896 | 0.2% by volume |
| Water Absorption (Capillary) | DIN 53428 | Zero |
| Water Vapour Diffusion Resistivity (µ) | DIN 52615 | 110 - 225 µ |
| Water Vapour Permeability | ASTM E-96 | 0.028 ng/Pa.m.s |
| Maximum Tile Loading Weight | CERAM121107 | 60kg/m2 |
| Flammability | EN 13501 | Class E |
| Impact Sound Reduction | BS-ISO140- | dLw = 21 |
| EU controlled substances conten | N/A | none |
Applications
Features
Zhejiang Olingen Building Material Systems Co.,Ltd Specialized in production,design,sales and installation of building materials for 20 years.Its main production include:artificial stone/ brick ;gravel,EPS components,XPS cement products.
