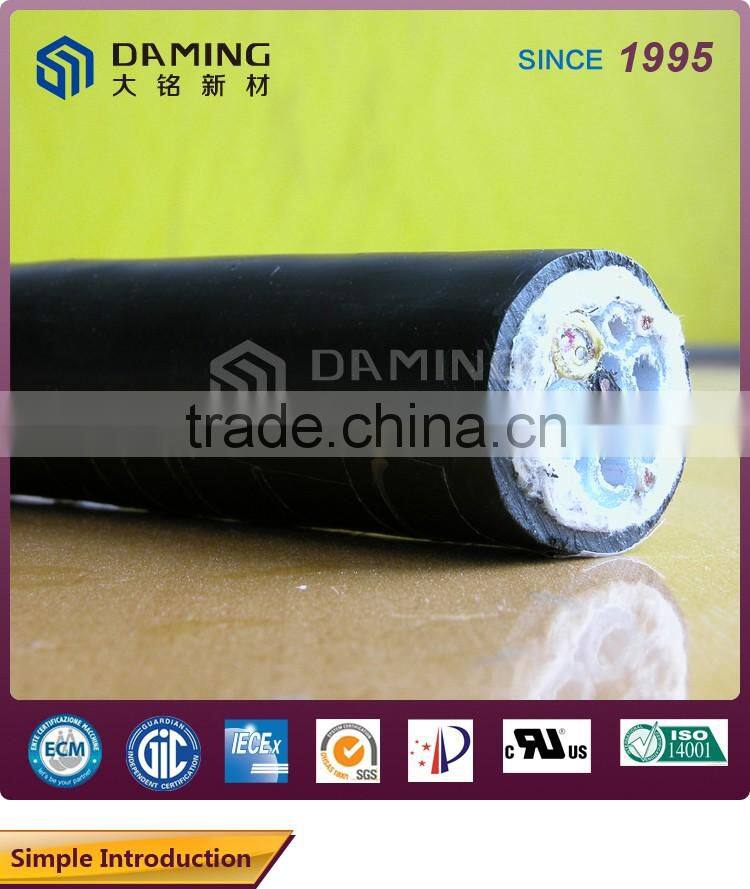

China Supplier Heat Trace Sample Composite Pipe With Electric Heating Cable

Use many kinds of sample tubes, such as Teflon PFA, FEP, PVDF, PE, Nylon, 316SS, and 304SS and so on.
The sample tube can bear the corrosion of various acids and alkali, compressive strength is 1.0Mpa, no leakiness.
The sample tube can work under the temperature lower than 200 deg C for a long time.

The heat preservation is adiabatic efficiently, light and fire retardant. The self-regulation heating belt or the constant output heating belt maintains the sample temperature.
The temperature inside the sample tube keeps 40 deg C to 180 deg C under the ambient temperature of -20 deg C and the wind speed of 15m/s.

It suits different conditions, shield and insulate each system with the aluminum braid or the metals silk braid, attain the function of fire prevention, anti-electrostatic and electromagnetic shielding. If necessary, add the waterproof membrane and the jacket which can strengthen fire retardant and defend the ultraviolet ray.

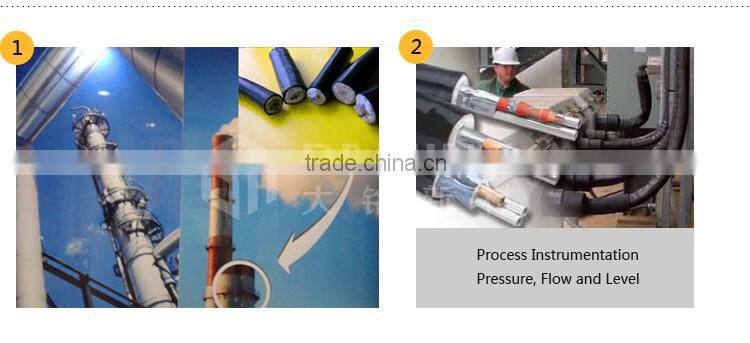

(1)Anti-corrosion electrically heat tracing
tube bundles  is a important part of environmental analysis monitoring system.
As for the heat tracing cable can self
regulating the temperature, so it can
maintain the tube in some degree
temperature, then can keep the collect
sample stay same with initial state. Of
course ensure the environmental analysis
monitoring system can continuous and
corrective collect sample gas.

(2)Analytical / CEMS
Process Analysers,
Continuous Emissions Monitoring

Small diameter lines are heated for many reasons including freeze protection (winterization), reduced
viscosity, and keeping gas samples above their dew point. These can be critical for process accuracy,
emissions compliance, and even plant operation. Steam and electrically traced instrument tubing bundles
represent lower installed costs and increased reliability for flow, level and pressure transmitters (as examples).

  1.

  Min radius of curvature
  is 0.5m



  2.

  Max continuous installing
  length is150m



  3.

  Min installing temp -10
  deg C.(Take measure
  when it is between -30
  and -40 deg C)

  4.

  Min fixed distance: 5m
  in vertical direction, 2m
  in horizontal direction

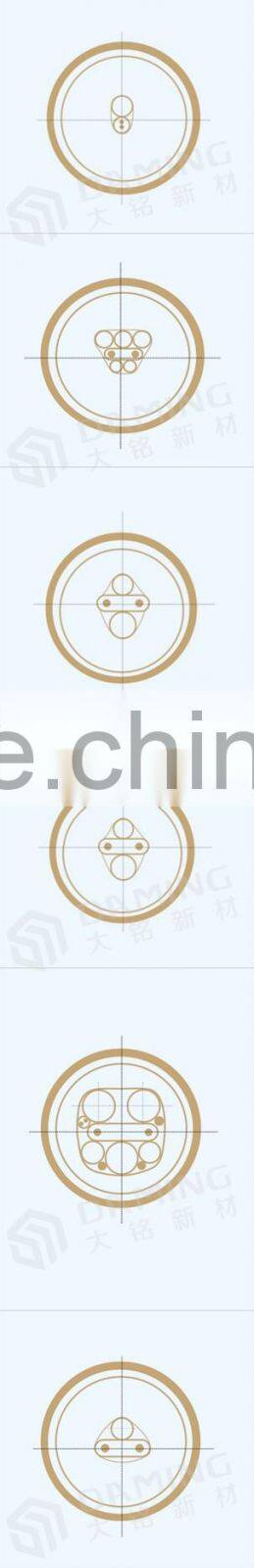

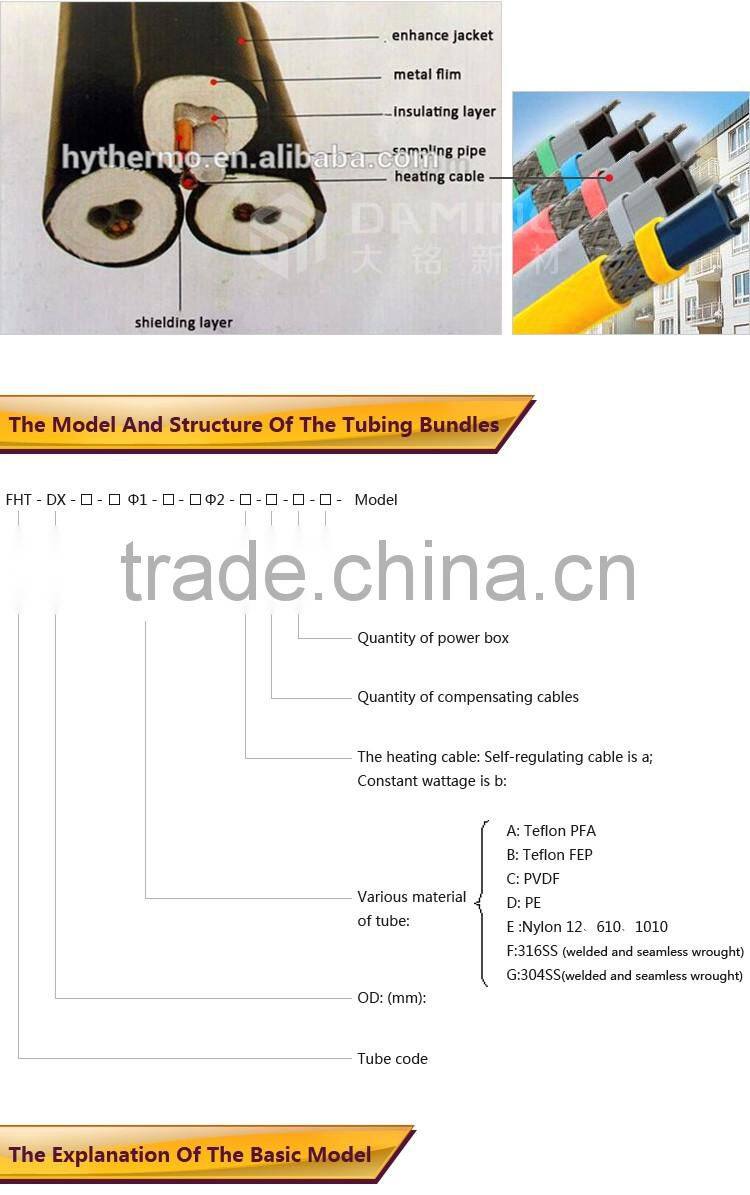

   FHT-D42-A1Φ6-b-0-0-E

        OD: 42mm

        One Φ6 sampling pipe ,Teflon PFA material

        Constant wattage heating cable HGW-30/2JP

        Reinforce PE sheathed

   FHT-D42-A5Φ6-ad-0-0-E

       OD: 42mm

        Five Φ6 sampling pipe ,Teflon PFA material

        Self-regulating heating cable DBW-25-220-P

        Reinforce PE sheathed

   FHT-D42-B1Φ8- A1Φ6-ag-0-0-E

       OD: 42mm

       One Φ8 sampling pipe ,Teflon FEP material,

       one Φ6 sampling pipe, Teflon PFA

       Self-regulating heating cable GBW-60-220-P

       Reinforce PE sheathed

   FHT-D42-B2Φ8-ag-0-0-E

       OD: 42mm

       Two Φ8 sampling pipe ,Teflon PEP material,

       Self-regulating heating cable GBW-60-220-P

       Reinforce PE sheathed

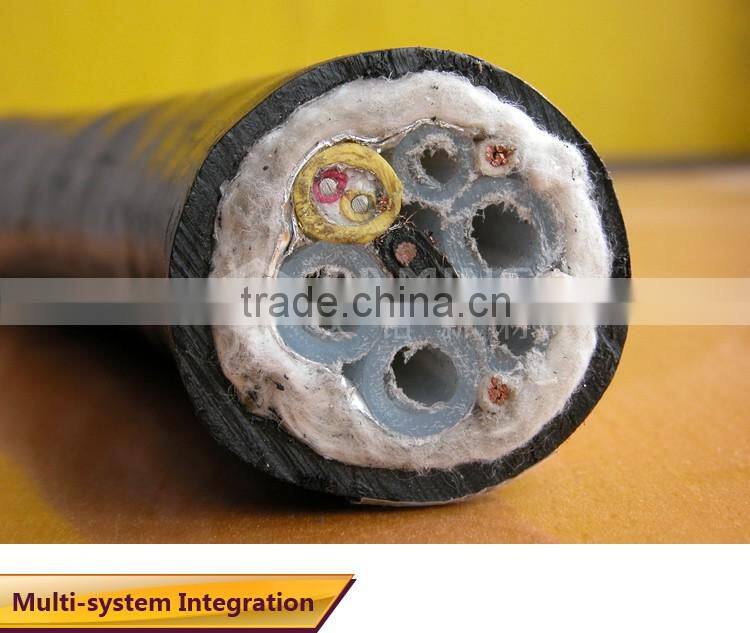

   FHT-D45-B3Φ9.5- 2Φ6-a-1-3-E

       OD: 45mm

       Three Φ9.5 sampling pipe , twoΦ6.5 sampling

       pipe. Teflon FEP material,

       One self-regulating heating cable

       One compensating cable

       One power cable

       Reinforce PE sheathed

   FHT-D42-A1Φ6-ag-0-0-E

       OD: 42mm

       One Φ6 sampling pipe ,Teflon PFA material

       Self-regulating heating cable GBW-60-220-P,

       Rated voltage 110Vac. Maintain temp 100-120 deg C.

       Reinforce PE sheathed

  A cost effective solution for water freeze protection and low
  temperature maintenance.

  Tube Temperature Range: 5°C to 65°C

  Maximum Exposure2: 85°C power off

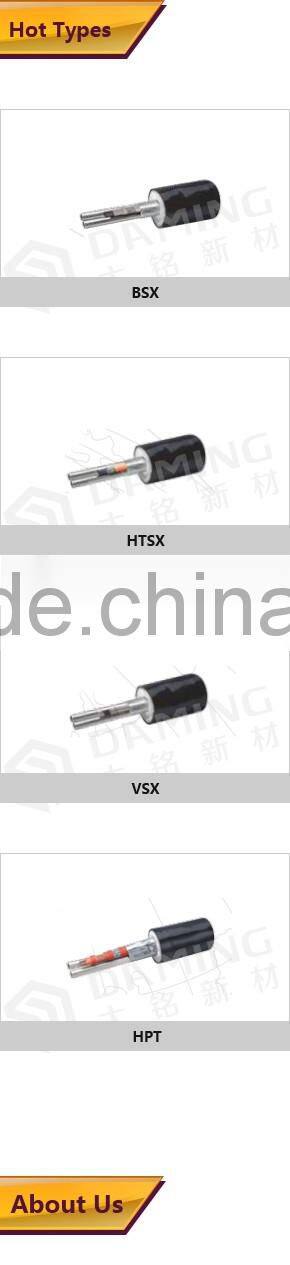

Tube Trace® with middle temperature self-regulating heating cable(Similar to HTSXTMtype of Thermon)

  Primarily used for process temperature maintenance or freeze
  protection where temperature exposure to steam purge is expected.

  Tube Temperature Range: 5°C to 121°C

  Maximum Intermittent Exposure2: 250°C power off

  A high performance heat trace specifically for process temperature
  maintenance or freeze protection where high temperature  exposure
  is a consideration.

  Tube Temperature Range: 5°C to 150°C

  Maximum Intermittent Exposure2: 250°C power off

Tube Trace® withconstant wattage heating cable (Similar to Power-Limiting HPTTM type of Thermon)

  Tube Temperature Range: 5°C to 204°C

  Maximum Exposure2: 260°C power off

    Payment Methods

    Commission fee

    Arriving days after paying

    T/T

    No commission fee

    3-5 working days

    PAYPAL

    3.9%+0.3 USD

    Instant

    WESTERN UNION

    No commission fee

    Instant

    ESCROW

    Alibaba calculate it

    Instant

    MOQ

    2000 meters.

    Trade Terms

    Exw / FOB /CIF
    Or you can ask you agency in China to operate for you

    Payment Terms

    Amount below 5000USD 100% TT advance;
    Amount over 5000USD 30-50% TT advance, 50%-70% TT before delivery
    Amount below 1000USD Paypal can be used; West union also is acceptable

    Services

    1. We provide OEM service.
    2. We provide customers with special quality checking work.
    3. We provide buying service to help customers find what they need.
    4. If there are any other special request for making better cooperation, we
        will do our best.

    Remarks

    1. OEM service are available.
    2. Less Than Container orders can be acceptable. You can tell us your trust
        agency in China to arrange the transport or ask them call us.
    3. Customer-made cartons, shipmarks, and label are available. The minimal
        order quantity are required. You can forward us before ordering.

    HS Code

    6301100000
