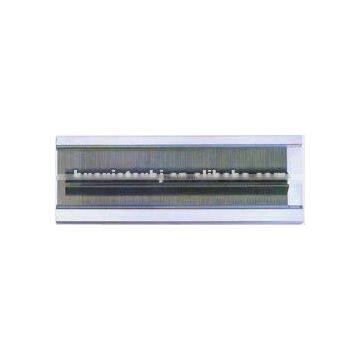

Reed for Toyota Air Jet Loom

FOB Price

US$ 0.01 - 999.99 / Piece

1 Piece(Min. Order)

Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	Reed for Toyota Air Jet Loom		Use	Weaving Machinery
Type	Reed

Product Description

Specifications

We supply all kinds of reeds for air jet looms and water jet looms. Quality is good, prices are reasonable.

The special reed wire is manufactured with imported stainless band,and designed to the optimal geometrical shape according to the hydrodynamics.After the special disposal of polishing the surface of the reed wire is smooth,bright,and unique in color,also has the characteristics of standard in shape and stable in atmospheric pressure.The read wire is suitable for various reeds for air jet loom.

Thickness(mm):
0.12,0.14,0.15,0.16,0.17,0.18,0.20,0.22,0.24,0.26,0.28,0.30,0.33,0.35,0.37,0.40,0.45,0.50,0.60,0.70

Thickness of Reed wire

dents/10cm	Thickness of Reed wire mm
dents/10cm	dents/10cm	Range
40-60	0.60	0.50-0.60
61-80	0.50	0.45-0.50
81-90	0.45	0.40-0.45
91-100	0.40	0.35-0.45
101-110	0.35	0.30-0.40
111-120	0.30	0.28-0.35
121-140	0.28	0.26-0.35
141-160	0.26	0.24-0.30
161-180	0.24	0.22-0.30
181-200	0.22	0.20-0.28
210-220	0.20	0.18-0.24
221-240	0.18	0.16-0.22
241-260	0.16	0.14-0.18
261-320	0.14	0.14-0.16

Technical Standard

Material

Steel No.Chemistry composition	C	Si	Mn	P	S	Cr	Ni	HV	Classification
SUS301	0.15	1.0	2.0	0.04	0.03	16.0-18.0	6.0-8.0	500-520	Austenite
SUS304	0.08	1.0	2.0	0.04	0.03	17.0-19.0	8.0-10.0	400-450	Austenite
SUS420J2	0.26-0.40	1.0	2.0	0.04	0.03	16.0-18.0	6.0-8.0	500-520	Martensite

Reed for Toyota Air Jet Loom

Type	α	H	J	h1	h2	h3	d	k
TOYOTA JAT500	12⁰	122	113	12(16)	18(23)	56	8	5.5
TOYOTA JAT600,JAT710	12⁰	122	113	12(16)	18(23)	56	8	5.5

Model number	α	H	J	h1	h2	h3	d	k
SULZER R. L5200	6⁰	120	113	12	18	56	8	6
DORNLER	6⁰	119	113	12	18	57	8	6
NISSAN LA40A	12⁰	113	105	12	18	52.5	8	5.5
NISSAN LA51A	12⁰	122	113	12	18	56	8	5.5
JETTIS	12⁰	110	105	12	18	51	8	6
GUUNE	6⁰	119	112	12	18	57	8	6
