Home > Products > Healds and Drop Wires > Flat Steel Healds-280,330,300,380,302

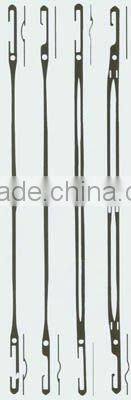

Flat Steel Healds-280,330,300,380,302

FOB Price

US$ 0.0001 - 9.999 / Piece

10000 Pieces(Min. Order)

Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	280,330,300,380,302		Use	Loom
Type	Other, healds

Product Description

Specifications

Top qulaity carbon steel, spring steel, austenitic and martensitic stainless steel.

Closed Type Flat Steel Healds

Types,Specifications of Closed Type Flat Steel Healds

CSType CD

Type CPType

Type		Cross Section	Length
Kind	Shape	W¡ÁT	Distance Between end loops
C closed type	(S)Simplex (D)Duplex (P)Duplex	2.20¡Á0.30	280 330 300 380 302 420
		2.34¡Á0.35
		2.50¡Á0.35
		2.60¡Á0.40
		2.80¡Á0.40
		2.50¡Á0.30

Type of thread eye			Type of end loop
Position of the Thread eye	Code	Size	Code	upper loop	lower loop
U Æ«ÉÏ £¨5¡¢10MM£© C ÖÐÐÄ	1	5.0¡Á1.0	-1 -2 -3 -4
	2	5.5¡Á1.2
	3	6.0¡Á1.5
	4	6.5¡Á1.8
	5	7.0¡Á2.0

Schematic diagram of mail-eye for closed flat steel heald

Main paraemter technique of flat steel heald

Hardness HV 410-510
Mail-eye roughness Ra<1.6¦Ìm
Strength resistence 10.8-12.8MPa
Angle 30¡ã¡À5¡ã
Resilence culve radiu R=L/¦Ðsemicircle diameter,recovered after release
Products made of carbon steel nickelaged

Open Type Flat Steel Healds

Types,Specifications of Open Type Flat Steel Healds

OCType OJType OCPType OJPType

Type		Cross Section	Length
Kind	Shape	W¡ÁT(mm)	Distance Between end loops
O open type	(J)Simplex (JP)Duplex (C)Simplex (CP)Duplex	5.50¡Á0.23	280 382 302 407 331 432 356
		5.50¡Á0.25
		5.50¡Á0.30
		5.50¡Á0.38
		5.50¡Á0.40

Type of thread eye			Type of end loop
Position of the Thread eye	Code	Size	Code	upper loop	lower loop
U Above Centre £¨5MM£© C In Centre	2	5.5¡Á1.2	-5 -6 -7
	4	6.5¡Á1.8
	5	8.0¡Á2.5
	6	8.0¡Á3.8

Schematic diagram of mail-eye for open flat steel heald
