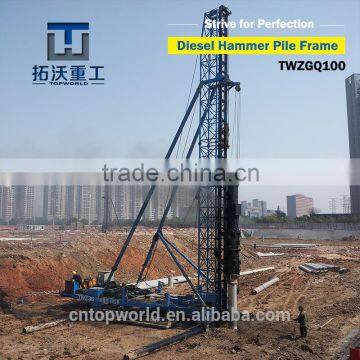

Brand New Diesel hammer Piling Frame TWZGQ100

Brand New Diesel hammer Piling Frame TWZGQ100

Piling frame is a kind of specialized machine for hoisting and guiding work in piling engineering. It can be equiped with the diesel hammer, hydraulic hammer, vibratory hammer, and drilling rig.

Topworld walking type piling frame is developed and enjoying good market owing to its lower cost and high working efficiency.

1. High verticality of pile

The underframe can be levelled by 4 rise cylinders, whether the construction site level or not, and also can adjust oblique support cylinders, all these can ensure the verticality of guide standard, much better piling verticality than other kinds of piling frames.

2. Low operation cost, high efficiency

Comparing with traditional piling frame, Topworld pile frame dont need paving crosstie, it save the forest resources and manpower (can save 1-2 workers),  shorten the auxiliary operation time, and increase the working efficiency. It can suit rough terrain.

3. Quick and flexible movement

This machine adopts hydraulic footstep underframe, utilizing 4 rise cylinders, long and short ship travel mechanism, the machine can move quickly and flexibly, and also it is easy to operate.

4. Small ground pressure, low gravity center

The long ship and short ship slideway structure increase the ground contact area, thereby decrease the ground pressure, enable the machine works at soft site. On the other hand, the long ship and short ship weight lower the gravity center of machine, increase the stability of machine.

5. Safe operation

Tipping prevented device is equipped to avoid the possible tipping accident.

The sensors installed on the rise cylinders can detect the stress, when the piling frame begins to tip, it can warn or cut the dangerous movements.

 7. Multi-purpose works can be achieved

This piling frame not only can hold the diesel hammer, but also can hold vibratory hammer, hydraulic hammer, long auger drilling rig, and diagram wall equipment in piling engineering.

Our factory can make the frames according to your option of the euipment.
