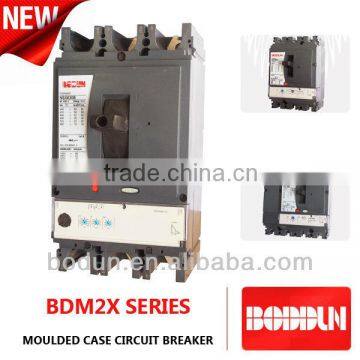

BDM2-X 3P 630A MOULDED CASE CIRCUIT BREAKER

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Ningbo Wenzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BODUN
Model Number	BDM2X	Type	Moulded Case
Poles Number	3

Product Description

Specifications

1,IEC60947-2 Standard.
2,Up to 1600A.
3,3,4Pole.
4,Reasonable Price and Perfermance.

BDM2X Moulded Case Circuit Breaker ( MCCB )

Application
BDM2X series moulded case circuit breaker is one of breaker which adopts international
advanced design, manufacture technology to develop. The rated insulating voltage is 750V,
suitable for AC 50Hz(60Hz),rated working voltage 690V or below, rated working current is
12.5A to 1250A of circuit and used in distributing electric energy, and non-frequent breaking
in the normal conditions , protecting the current equipment from overloadunder voltage,
circuit breaker with rated frame current 400A or below,can be used in mousecage motor’s
non-frequent start, breaking during working, protecting motor from overload, short circuit
undervoltage,the product conforms to IEC60947-2 standard.

Type	Pole	Rated Insulating Voltage(V)	Rated Operating Voltage(V)	Rated Ultimate Short Circuit Breaking Capacity Icu(KA) at 380/415V(KA)	Rated Service Short Circuit Breaking Capacity Lcs at 380/415V(KA)	Operation Performance		Utilization Category
Type	Pole	Rated Insulating Voltage(V)	Rated Operating Voltage(V)			ON	OFF	Utilization Category
BDM2X-100N	3,4 Pole	750	690 And Below	25	25	1500	8500	A
BDM2X-100H				70	70	1000
BDM2X-100L				170	150	1000
BDM2X-160N				36	36	1000	7000
BDM2X-160H				70	70	1000
BDM2X-160L				150	150	1000
BDM2X-250N				36	36	1000
BDM2X-250H				70	70	1000
BDM2X-250L				150	150	1000
BDM2X-400N				45	45	1000	4000
BDM2X-400H				70	70	1000
BDM2X-400L				150	150	1000
BDM2X-630N				45	45	1000
BDM2X-630H				70	70	1000
BDM2X-630L				150	150	1000
BDM2X-1250N	3Pole			50	37.5	1000
BDM2X-1600N	3Pole			50	37.5	1000

Trip units main technical parameter

Type	Rated Current In(A)	Note
BDM2X-100	12.5,16,20,25,32,40,50,63,80,100
BDM2X-160	16,20,25,32,40,50,63,80,100,125,160	T adjustable (0.8-1ln) M adjustable (0.8-1ln)
BDM2X-250	160,180,200,225,250
BDM2X-400	315,350,400
BDM2X-630	400,500,630
BDM2X-1250	800,1000,1250	T adjustable (0.8-1ln) M fixed
BDM2X-1600	1000,1250,1600	T adjustable (0.8-1ln) M fixed
