Home > Products > SMD Downlight > 4inch Samsung SMD3020 12w ultra slim led downlight 95lm/W

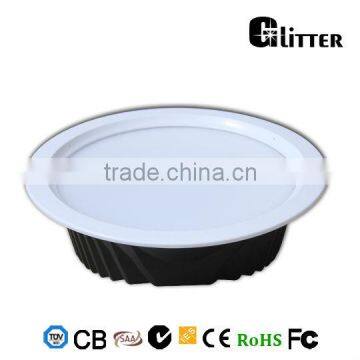

4inch Samsung SMD3020 12w ultra slim led downlight 95lm/W
- Shenzhen
- T/T Credit Card
You May Like
-
4inch Samsung SMD3020 12w high power led downlight 95lm/W
-
4inch Samsung SMD3020 12w led downlight price 95lm/W
-
5inch 18W SMD3020 Samsung 18W led downlight 95lm/W with SAA/C-Tick/CE/CB approved
-
5inch 18W SMD3020 Samsung 18W adjustable led downlight 95lm/W with SAA/C-Tick/CE/CB approved
-
6inch 22W Samsung SMD5630 dimmable led rectangular downlight 95lm/W with SAA/C-Tick/CE/CB certificates
-
6inch 22W Samsung SMD5630 dimmable led downlight malaysia 95lm/W with SAA/C-Tick/CE/CB certificates
Product Details
LED Light Source | Sumsung SMD3020 | Warranty(Years) | 5 | |
Input Voltage(V) | 220 | Lamp Power(W) | 12 | |
Lamp Luminous Flux(lm) | 1000 | Lamp Luminous Efficiency(lm/w) | 95 | |
Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 40 | |
Working Lifetime(Hour) | 50.000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | IP44 | Certification | C-tick, GS, PSE, SAA | |
Model Number | DL-S2-12W | Brand Name | Glitter |
Product Description
Specifications
1.12w ultra slim led downlight2.Samsung SMD3020 as the light source and aluminum alloy for the shell.
3. Up to 95lm/w, CRI>85
4inch Samsung SMD3020 12w ultra slim led downlight 95lm/W with SAA/C-Tick/CE/CB certificates
Features and Advantages:
a. LED: Samsung SMD5630 Imported From Taiwan
b. Ture Color Lighting,High CRI Ra85
c. Certificates:SAA, C-Tick,CB, CE, GS, RoHS,FCC
Technical Specifications
A: Electrical Data
No. | Item | Description | |
1 | Dimension | Ø130x70mm | |
2 | Construction Hole Size | Ø115mm | |
3 | Voltage | AC85-265V | |
4 | Current Frequency | 50/60 Hz | |
5 | Power | 12W | |
6 | LED Type & Qty | 44pcs SMD3020 | |
7 | Beam Angle | 60 degree | |
8 | Color Temp. | Warm white | 2800-3500K |
Neutral white | 3800-4500K | ||
Cool white | 5500-6500K | ||
9 | Lumen | Warm white | >900lm |
Neutral white | >980lm | ||
Cool white | >1100lm | ||
10 | Color Rendering Index | >80 | |
11 | Material | Cover: PMMA, Housing: Aluminum 6063 | |
12 | Operating temperature | -20~+50 °C | |
13 | Humidity | 20-85% | |
14 | Certificate | CE, RoHS, SAA, TUV,C-Tick | |
15 | Luminaires Class | Ⅲ |
Packing Information
Item | Single Box Packing | Carton Package | |||||
QTY/Box | Box Size | G.W. | QTY/CTN | Carton Size | G.W. | Volume Weight | |
DL-S2-12W | 1pc | 135x135x100mm | 0.45kgs | 40pcs | 710*300*440mm | 17.85kgs | 18.75kgs |
Application
Widely used in hotels, display, shopping mall, gym, underground parking,
corridors, exhibitions, clubs, family illumination, other indoor lighting.
Dimension (Unit: mm)
Installation:
Certificates:
Ageing Test(18-24 hours):
Warranty
3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the rights for final explanation of aforesaid terms.
Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
Any colors, any logo acceptable. Leave an inquiry to know more details about pricing, packing shipping and discount.
