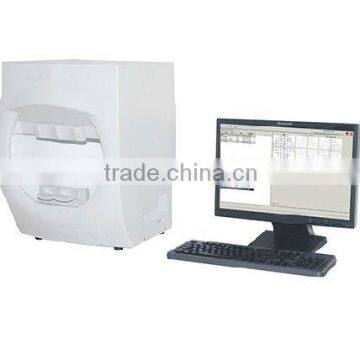

computer visual field analyzer eye perimeter

Specifications

The new generation smart perimeter with advanced test program will more competitive than existing perimetry brand because of it's value and accessibility.Smart body can be beffer configured in your workroom.

Specifications

1.Maximum temporal range (degrees): 90°

2.Test mode: Static test

3.Visual field testing distance: 30cm

4.Background illumination: 31.5asb

5.DB value range: 0-40db

6.Stimulus duration:200ms

7.Patient reaction time: System Default & Auto-adaption

8.Stimulus Size: Goldmann Ⅲ

9.Stimulus Colour: White & Red

10.Test Mode:

ØThreshold test program: Macula

10-2

24-2

30-2

60-4

Nasal step

ØScreening test program: C-40

C-76

Nasal step

FF-81

FF-135

ØSpecialty test program: Esterman monocular

Esterman binocular

Superior 36

ØUser-defined test:Available for storaging 10 program

11.Test strategy

ØAuto-interactive test (40% testing duration shortened compared with Full threshold tes, without decreasing the test accuracy)

ØFull threshold test

ØFast threshold test

ØAge corrected screening test

ØSingle stimulated screening test

12. Analysis Software

ØCreditability analysis

ØSingle field analysis

Ømulti fields analysis

ØGHT (Glaucoma Hemifield Test)

Øprogression analysis

13.Report Plots

ØDB Value

ØGrayscale

Ø3D Image

ØTotal deviation

ØPattern deviation

ØTotal probability

ØPattern probability

ØBebie curves

14. Fixation monitoring: physiologic scotoma monitoring,Video eye monitoring & tracking curve plot, Eye position deviation alarm

15. Automatic Pupil Measurement

16. Ambient light automatic measurement
