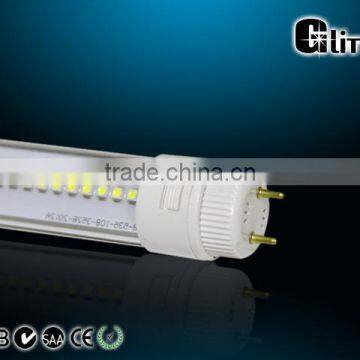

TUV CB SAA C-TICK approved 1200mm IP65 16W 100lm/W tube cooler
- Shenzhen
- T/T Credit Card
You May Like
-
TUV CB SAA C-TICK approved 1200mm IP65 16W 100lm/W cooler led tube
-
TUV CB SAA C-TICK approved 1200mm16W 100lm/W high performance freezer tubes
-
CE ROHS certified china wholesale hot sale round led panel,30w led ceiling panel round, 5 years warranty
-
8 inch Round Led Panel Lighting,30w led round flat panel light, CE(EMC&LVD)/ROHS apporoved
-
CE/ROHS cerfified 30w round flat ceiling led light, 240mm round panel light led, 75lm/w, ra80,AL+Glass, 5 years warranty
-
6 inch Round Led Panel Lighting,30w led round flat panel light, CE(EMC&LVD)/ROHS apporoved 5 years warranty
Product Details
| LED Light Source | Everlight SMD3528 | Surface Treatment | Other, Aluminum+PC | |
| Input Voltage(V) | AC85-265V | Lamp Power(W) | 16 | |
| Lamp Luminous Flux(lm) | 1600 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Other, 2700-6500K | Working Temperature(℃) | -40, 50 | |
| Working Lifetime(Hour) | 50000 | IP Rating | IP65 | |
| Certification | CE, C-tick, EMC, GS, LVD, PSE, SAA | Base Type | G13 | |
| Brand Name | Glitter | Model Number | T8-03-12-00 |
Product Description
Specifications
Approved by TUV,SAA,C-tick,CBAnti-fog and moisture-proof.
Isolated Driver.Single-end Power Input, with Led starter.
Freezer/fridge Led tube Item No.: T8-03-12-00
Features / Advantages :
- High lighting efficiency: 100 lm/W with Everlight SMD3528. 110 lm/W with clear cover !!
- TUV,SAA,CB,PSE approval
- No rewiring. Single-end power supply with Led starter.
- All components under special treatment, works well in temperatures between -40°C-40°C
- Isolated driver, 3years warranty.
Data Sheet:
Item No. | T8-03-12-00 |
Dimension | 1198x 26mm (4FT) |
Power | 16W |
Voltage | AC85V - 265V 50/60HZ |
LED Type | SMD3528 |
LED Quantity | 204 pcs |
Luminous Flux | 1600 lm |
Color Temperature (CCT) | 2800-3500K, 4000-4500K, 5500-6500K |
Beam Angle | 140° -180° |
Color Rendering Index (CRI) | Ra 75 |
Power Supply Efficiency | >90% |
LED Luminous Efficiency | ≥100 lm/W |
Power Factor (PF) | >0.95 |
IP Rank | IP 65 |
Certificate | TUV,SAA,C-TICK,CB,PSE |
Photometric data( 110 lm/W with clear cover ):
Installation:
Application
Refrigerator
Supermarket
refrigerated storage
Packing Information:
1. 50 CM T8 | 25 pcs/Carton, Carton size (LxWxH): 495*218*220mm, G.W.: 6.70 kgs/Carton, With Fragile Mark outside. |
2. 60 CM T8 | 25 pcs/Carton, Carton size (LxWxH): 645*218*220mm, G.W.: 9.0 kgs/Carton, With Fragile Mark outside. |
3. 90 CM T8 | 25 pcs/Carton, Carton size (LxWxH): 945*218*220mm, G.W.: 12.0 kgs/Carton, With Fragile Mark outside. |
4. 120 CM T8 | 25 pcs/Carton, Carton size (LxWxH): 1245*218*220mm, G.W.:15.0 kgs/Carton, With Fragile Mark outside. |
5. 150 CM T8 | 25 pcs/Carton, Carton size (LxWxH): 1545*218*220mm, G.W.: 20.0 kgs/Carton, With Fragile Mark outside. |
6. 180 CM T8 | 25 pcs/Carton, Carton size (LxWxH): 1845*218*220mm, G.W.: 24.0 kgs/Carton, With Fragile Mark outside. |
