Home > Products > COB Downlight > SHARP COB1215 Fire rated High CRI 85: Ra85 5 years warranty SAA,GS,CE,RoHs

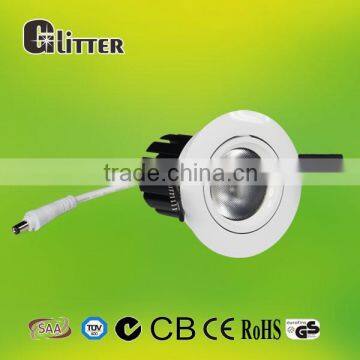

SHARP COB1215 Fire rated High CRI 85: Ra85 5 years warranty SAA,GS,CE,RoHs
- Shenzhen
- T/T Credit Card
You May Like
-
2015 Chinese factory good quality 10W led COB downlight cool white fire-rated COB Downlight
-
LED COB downlight 10w, fire proof
-
Long life span Adjustable beam angle 10W led COB downlight , easy installation LED COB Downlight with 5 years warranty
-
Long lifespan with Adjustable beam angle 10W led COB downlight , easy installation LED COB Downlight with 5 years warranty
-
2014 factory price Adjustable beam angle 10W led COB downlight , easy installation LED COB Downlight with 5 years warranty
-
High quality 75mm 10W led COB downlight with CE , Top 1 sale LED COB Downlight
Product Details
LED Light Source | SHARP COB 1215 | Warranty(Years) | 5 | |
Input Voltage(V) | AC85-265V | Lamp Power(W) | 15 | |
Lamp Luminous Flux(lm) | 1200 | Lamp Luminous Efficiency(lm/w) | 80 | |
Color Temperature(CCT) | Other, 2700-6500K | Working Temperature(℃) | -20, 50 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | IP44 | Certification | C-tick, CE, EMC, FCC, GS, LVD, SAA | |
Brand Name | Glitter | Model Number | CL-15-01 |
Product Description
SHARP COB Downlight CL-C1-15W
Feature:
- *1070 AL Housing*Cold Forging Heat Dissipation
- *Thermal Conductivity: 2.6
- *Unique Lens Just For Perfect Replacement Of Halogen
- *SHARP COB
- *Adjustable light angel
- *Isolated Driver, CB,GS,SAA approval
Application
Hotels, Display, Shopping Mall,Gym, Underground Parking,Corridors, Exhibitions, Clubs.
Family illumination and other indoor lighting.
Dimension(Unit:mm)
Technical Specification
Item No. | CL-15-01 |
Dimension | Ø96x90mm |
Construction Hole Size | Ø85mm |
Power | 15W |
Voltage | AC85V - 265V 50/60HZ |
LED Type | SHARP COB 1215 |
LED Quantity | 1 pc |
Luminous Flux | 1200 lm |
Color Temperature (CCT) | 2800 -3500K, 4000 - 4500K, 5500 - 6500K |
Beam Angle | 15 ,25 ,35 ,60 degree |
Color Rendering Index (CRI) | Ra 85 |
Power Supply Efficiency | >90% |
LED Luminous Efficiency | 80 lm/W |
Power Factor (PF) | >0.95 |
Fire rated | V0 class |
IP Rank | IP 44 |
Material | The acrylic lens, Housing:Aluminum 1070 |
Luminaires Class | Ⅲ |
Operating temperature | -20~+50 °C |
Certificate | SAA, CB, GS |
Warranty | 5 years warranty |
Light Distribution Curve & Max CD Distribution Curve
Illumination Cone Curve
Packing Information:
Item | Single Box Packing | Carton Package | |||||
QTY/Box | Box Size | G.W. | QTY/CTN | Carton Size | G.W. | Volume Weight | |
CL-C1-10W | 1pc | 135x135x100 mm | 0.45kg | 40pcs | 710x300x440 mm | 17.85kg | 18.75kg |
Safety Assurance:
1. Insulation Resistance
The IR shall be at least 50MΩ when apply 500Vdc between primary and secondary
2. Dielectric Strength (Hi-pot)
Input To Output 3750Vac 60Hz 1minute ≤3MA
When AC voltage of 3.75KV is applied, and the voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage in 1s, and held at that value for 60s
between the inputs.and output and between the input and housing, the current sensitivity shall be le ss than 5mA. After this test, the adapter shall exhibit no electrical and mechanical
abnormalities.
3. Leakage Current
The leakage current shall be less than 0.25m A for class II when power supply is operate maximum input voltage and maximum load.
4. Safety Standard
IEC:60598-1:2008
EN60598-1/A11:2009
IEC61347-1/A1:2010
EN61347-2-13:2006
IEC61347-2-13:2006
EN61347-1/A1:2011
IEC62031:2008
EN62031:2008
IEC62471:2006 IEC62471-2:2009 Passed:
EN62471:2008 EN61195:1999 EN62493:2010: Passed
5. EMI/EMS Standard
EN55015: Passed
EN61000-3-2: Passed
EN61000-4-2: Passed
Warranty
5-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the rights for final explanation of aforesaid terms.
Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
