Immersion Flange Heater With Waterproof Coverbox
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Type | Immersion Heater | Power Source | Electric | |
| Place of Origin | Shanghai, China | Brand Name | AUZHAN | |
| Model Number | SOIJ |
Product Description
Specifications
1,Nickel chrome resistance wire2, Brass hex. flange head, sus304,316L,incoloy heating element
3,IP65 waterproof cover box.

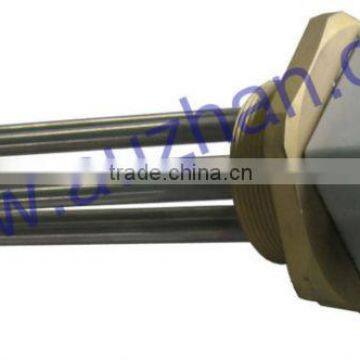

Immersion flange heater with waterproof cover box
Heating element diameter: 10mm Length: 340mm Voltage: 440V Power: 1500W
Feature:
1,Easy to install, control and maintain
2,It has a waterproof cover box, can be used in bad environment. For many applications: water, oil, heat transfer fluid, and corrosive solutions, Gas, Steam
3,High power is available, various material
4,Safe and efficient
Water immersion flange heater are custom designed in a various shapes to address client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.
Tubular heaters are produced using incoloy , stainless steel, aluminum, bundy and copper sheath materials and also there is huge variety of selection of termination styles available.
When ordering please specify
Diameter and length of the heating tube. Spec for the flange head.
Wattage and voltage
Type of terminal
Drawing of special type configuration

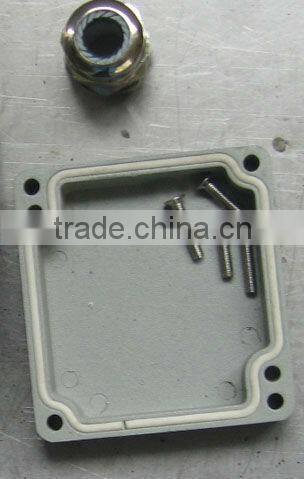

Please see the following picture for waterproof cover box:

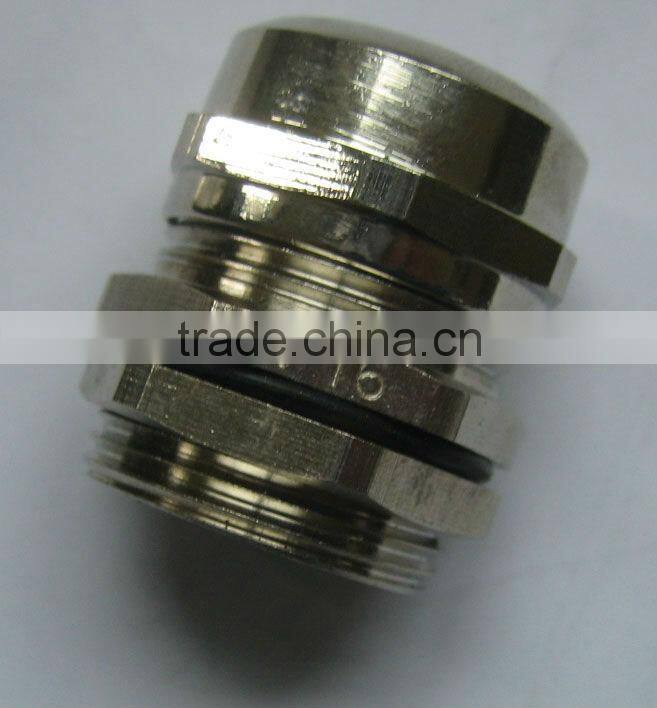

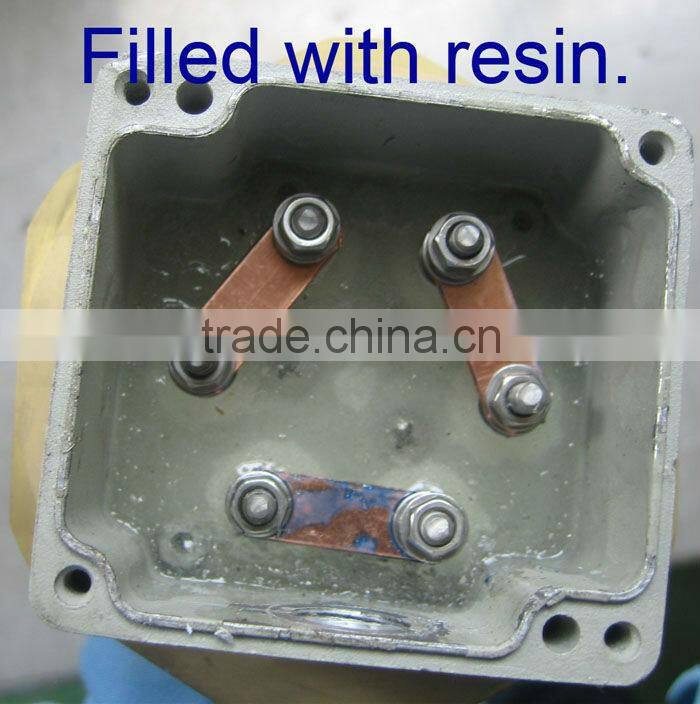

PG16 Cable lock / wash for cover box/ filled with resign cover box
