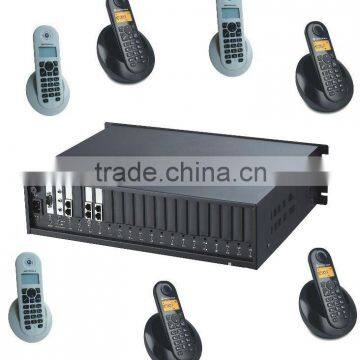

DECT 16~120lines Wireless PBX

•PBX Configuration:

Analog Capacity: 4 Outside lines,16 extensions expand to 32 Outside lines,112 extensions max.;

Cordless Capacity: 2~8 Base station,192 cordless extension max;

Max. Digital E1 PRI :1 * 30dB+ (1PRI + 120EXT);

•PBX Feature List:

CORDLESS SPECIFICATION:

DISTANCE:

1. 1.8km from Base-station to PBX;

2. 50m~300m from Cordless extension to Base-station;

AT EACH BASE-STATION:

1. Max. support 4-concurrent Call simultaneously ;

2. Register 8~32 Cordless extension;

3. Max. 1.8km distance to main PBX;

BASE-STATION FEATURE:

1. Frequency Range: 2400mHz~2483.5mHz ;

2. Code Type: FHSS,TDD & TDMA;

3. Modulation: FSK,32Kbits/s,ADPCM,G.726

4. Wifi: compatible

5. Roam: yes, incoming & outgoing

CORDLESS EXTENSION CARD:

1. Include 2,4,8 ports;

2. As add-on card to Miracall Digital PBX;

3. As bridge of Base-station & PBX;

4. Support Simultaneous information & Roam management;

CORDLESS PHONE :

1. LCD display;

2. Blue back-ground lamp;

3. Page;

4. Free Tranfer key;

5. Earphone;

6. 50-number memory;

7. Re-dial last 10 numbers;

8. Max. can check 40 incoming number ;

9. Standby :80hours, 5-hour conversation ;

10. 50~300m distance;

11. Low-power alert;

12. Caller ID;

13. 5-type Melody ,5-level volume control;

14. Lock & un-lock Key button;

15. WIFI Compatible ;

16. Support roam among base-stations;

17. NI-MH Battery: 750mAH;

18. Separate Charger ;

RECEIVING CALL FEATURES
1. Idle Extension Hunting
2. Uniform Call Distribution (UCD)
3. DISA (direct inward system access)
4. Log-in & log-out
5. Hand-free Answering back
6. Do Not Disturb (DND)
7. Call Forwarding
- All
- Busy
- No-answer
8. Call Pickup
9. Call Splitting
10. Call Transfer

MAKING CALL FEATURES
11. Account Code Entry
12. Emergency Call
13. Walking Account Pin
14. Line Prefer Outgoing
15. Operator Call (dial “0”)
16. Outside Line Access Selection
17. Polarity Reverse Detection
18. Preferred Line Assignment (outgoing)
19. Paging
- to all key phones
- External PA system
- Pickup
20. Toll Restriction
21. Toll Restriction Override by account
22. Intercom Calling
23. Intercom Call Restriction
24. Intercom Caller ID

MEMORY DIALING FEATURES
25. One-touch Dialing
26. Redial
- Last number
- Saved number
27. System Speed Dialing
28. Pickup Dialing (hotline)

INCOMING CALL FEATURES
29. Direct in Line (DIL)
30. Intercept Routing
31. CO Line Ringing Assignment
32. Call Waiting
33. Station Queue

CONVERSATION FEATURES

34. Hand-free Operation
35. Microphone Mute
36. Handset Operation
37. Flash / Recall
38. Limited Call Duration
39. Parallel Connection
40. Busy Tone Detection

HOLDING FEATURES
41. Call on Hold
42. Call Splitting
43. Music on Hold
44. Consultation Hold

SYSTEM FEATURES
45. Auto-Day/Night Switch
46. Flexible Extension Numbering
47. Outgoing Message (OGM)
48. Power Failure Transfer
49. Programming (PC,SLT,PT)
50. SMDR Billing System
51. Time Service
52. Timed Reminder

GROUP FEATURES
53. Conference Call
54. Extension Group
55. Trunk Group
56. Pickup Group
57. Boss/Secretary Group
58. Queue Group

BUSY LINE FEATURES
59. Auto- Callback on Busy
60. Executive Busy Override
61. Call Waiting Tone

OPTIONAL FEATURES
62. Battery Backup
63. Door phone /opener
64. DSS Console
65. SMDR / PC Program software

•PBX Specifications:

Power : AC110V or AC220V,50-60Hz;

Power Consume: Max. 50W;

Cross Distortion: › 70dB;

Backup Battery: 24VDC, 7aH
