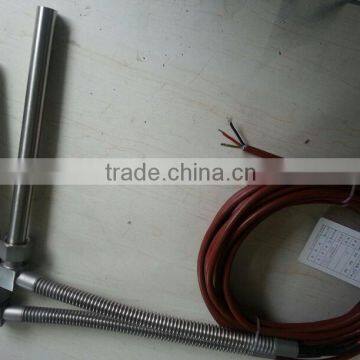

Mould Cartridge Heater
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other | |
| Power Source | Electric | Place of Origin | Shanghai, China | |
| Brand Name | auzhan | Model Number | SOIH | |
| Certification | CE / UL | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
various specification avaliableCartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable forpacking machinery, heat sealing, labelling machines and hot stamping applications.
Technical Specification:
1.Sheath material: SUS304,321,316,Incoloy800,840
2.Wattage Tolerance: +5%, -10%
3.Resistance tolerance: +10%, -5%
4.Voltages available: 380V,240V, 220V,110V,36V,24V or 12V
5.Max operating temp: 800ºC
6.Length tolerance: ±1 mm
7.Diameter tolerance: -0.02mm
8.Standard Cold Zone: 5-10mm;
9.Delivery time: 7-10 working days.
10.Thermocouple Location: type J or K are available
11.Insulation resistance (cold): ≥ 500 MΩ;
12.Maximum leakage current (cold): ≤ 0.5 mA;
When you inquire the cartridge heater, please specify the following details:
1.Tube diameter;
2.Tube length;
3.Tube material:stainless steel304 etc.
4.Lead wire:20cm/1.5m/2m/3m etc.
5.Thermocouple attached is availabe if you need.
