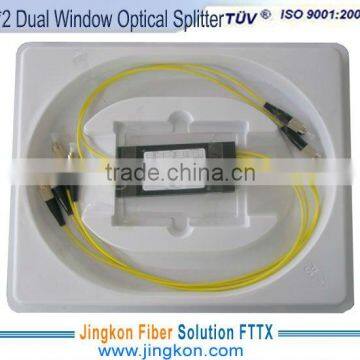

1x2 Dual Window Optical Splitter

FOB Price

Negotiable / Set

10 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Jingkon
Model Number	1*2 Box Module FBT Fiber Splitter

*1x2 Box Module FBT Fiber Splitter
*Fusion Biconic Splitter Technology
*RoHS,TLC,ISO9001,Telcordia GR-1221

1*2 FBT Optical Fiber Splitter with FC/PC Connector

Main Parameter:

TECHNICAL SPECIFICATIONS
Optical characteristics
Wavelength		1310±40nm 1550±40nm
Fibre type		G652B/D
Directivity		≥55dB
Return loss		≤-55dB
TDL		Signal path:≤0.10dB; Tap path≤0.15dB
		Split Ratio
		90/10	80/20		70/30		60/40	50/50
IL1(dB)	Signal side	≤0.65	≤1.25			≤2.0	≤2.7	2.7-3.6
	Tap side	9.6-11.3	6.5-7.8			4.7-6.0	3.6-4.7	2.7-3.6
PDL(dB)	Signal side	≤0.10	≤0.15			≤0.15	≤0.15	≤0.15
	Tap side	≤0.15	≤0.15			≤0.15	≤0.15	≤0.15
Construction
Dimensions				Un-cased:250um fibre: Φ3.0×45mm Cased:900um fibre:L90×W20×H10mm Cased:2.0mm fibre: L90×W20×H10mm
Fibre taills				250um,900um or 3.0mm,different lengths available
Connectors				According to requirements(see coding)
Environmental
Operating temperature range				-40-+75°C
Storage temperature range				-40-+85°C
Packing				Individual blister type

Applications:
*FTTX (FTTP, FTTH, FTTN, FTTC)
*Passive Optical Networks (PON)
*Local Area Networks (LAN)
*CATV Systems

*Test Equipments
