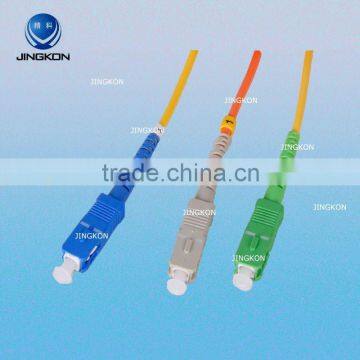

Fiber Optic Pigtail

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JINGKON
Model Number	fiber optic pigtail

fiber optic pigtail
SC/APC connector
9/125

fiber optic pigtail

Description		Patchcord
Item NO.	Test Item		Unit	Standard & Requirement
1	Appearance		/	No crack, No scar, good conformability
2	Ferrule polished end		/	No scar, No spot
3	Insertion loss		dB	SM≤0.2
4	Return loss		dB	PC≥60,
5	Radius of curvature		nm	10 ≤ r ≥25
6	Curvature eccentricity		um	<50
7	Fiber core undercut		nm	<50
8	Fall apart test		dB	H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
9	Repetitiveness		dB	Insertion loss change< 0.1,Return loss change< 5
10	Insert & pull out		/	Max: 2KG
11	Tensile strength		dB	0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
12	Anti-contortion		dB	2.5Kg ,200times, 10times/minutes, ±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion
13	Package		/	Clean, Correctitude, No dirt
14	Allowable bending radius		mm	15mm
