Home > Products > Fiber Optic Pigtail > Fiber Optic Pigtail FC/APC-SX-SM 2.0

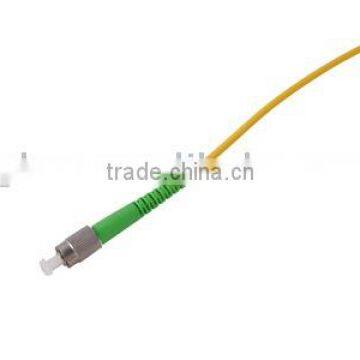

Fiber Optic Pigtail FC/APC-SX-SM 2.0
- Ningbo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JINGKON | |
| Model Number | FC/APC-SX-SM 2.0 |
Product Description
Specifications
Low insertion loss High return loss High temperature stability Good repeatity,High interchange abilityWe are manufacturer of FIBER OPTIC PIGTAIL products
1. Product specification
Insertion loss ≤ 0.2dB
Return loss ≥ 60dB
Repeatability ≤ 0.1dB
Interchangeability ≤ 0.2dB
Operating temperature -20-+60º C
Storage temperature -40-+60º C
2. Features
Low insertion loss
High return loss
High temperature stability
Good repeatity
High interchangeability
Simplex and duplex are available
3. Application
Optical fiber communication system
Optical access networks
LAN
Optical fiber sensors
Optial fiber data communication
Optical fiber CATV
Optical fiber testing equipment
4. Other style -ST, FC, LC, MTRJ, E2000, DIN, D4, MPO patch cord are available.
5. Order guide
Fiber cores: Simplex, duplex
Fiber diameter(mm): Φ 0.9, φ 2.0, Φ 3.0
Fiber length; User-defined
Fiber type; Singlemode(G. 652, G655), multimode(50/125)/(62.5/125)
Interface type pc, upc, apc
Connector type SC, FC, LC, ST, MTRJ, DIN, D4, E2000, MPO
Every patch cord has passed strict test, so we can promise the quality. If you are interested in our products, welcome your inquiry, we sincerely hope to set up good business relationship with any real buyers.
Contact Us
- Ningbo Jingkon Fiber Communication Apparatus Co., Ltd.
- Contact nameChristophe Lu Chat Now
- Phone0086-574-65786650
- Address NO. 22 Yupan Road,Baiyanshan Industrial Zone,Ningbo city ,Zhejiang Province, China., Ningbo, Zhejiang
