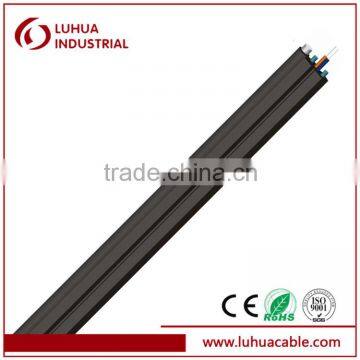

FTTH Fiber optical cable with FRP Strength member and steel messenger

FOB Price

USD $0.05 - $0.06 / Meter

50000 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Luhua or OEM
Model Number	FTTH fiber optical cable

FTTH Fiber optical cable with FRP Strength member and steel messenger

Characteristics

Special fiber provides high bandwidth and excellent communication transmission property

Two parallel strength members ensuring good performance of crush resistance to protect the fiber

Simple structure, light weight and high practicability

Novel flute design, easily strip and splice, simplify the installation and maintenance

Single steel wire as additional strength member ensuring good performance of tensile strength

·Fiber Parameters

No	Item		Unit	Specification
No	Item		Unit	G.657A1
1	Mode Filed Diameter	1310nm	μm	9.0±0.4
1	Mode Filed Diameter	1550nm	μm	10.1±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non- Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding -Cladding Concentricity Error		μm	≤12.0
8	Water Cutoff Wavelength		nm	λcc ≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3
10	Macro-Bending Loss	1turn ×radius @1550nm	dB	≤0.75
10	Macro-Bending Loss	1turn ×radius @1550nm	dB	≤1.5

Cable Parameters

Mechanical and Environmental Characteristics

1. from 1km to 4km or other required,1 drum with cartoon box, 18drums/pallet

2. pakcing size:depend on cable size and packing length

3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
