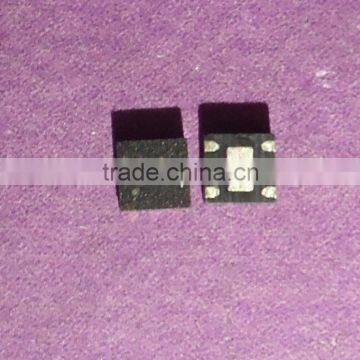

RICHTEK RT8010PQW RT8010 (D5V D5J D5A...) 1.5MHz, 1A, High Efficiency PWM Step-Down DC/DC Converter
US$ 0.5 - 1.5
/ Piece
1 Piece(Min. Order)
- SZ/HK
- Credit Card PayPal
You May Like
-
RICHTEK Model code: ZD (ZDJ ZDW ZDK) DFN-6
-
RICHTEK Model code:00 (00 EE,00 EC,00 EF,OO...) DFN-10
-
RICHTEK Model code:0A=, (0A=ED,0A=EF,0A=EM,OA=ED,OA=EM...) DFN-10
-
RICHTEK Model code:0D= (0D=EG,0D=EF,0D=EL...) QFN-20
-
RICHTEK Model code:0E= (0E=EC,0E=EF,0E=EL...) QFN-20
-
RICHTEK RT9148ZQW RT9148 Model code:0E (0E8,0E6,0EG,0EK,0ER,OE8,OE6,0E...) DFN-6,20V, 350mA, Rail-to-Rail Operational Amplifier
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | RT8010PQW | Type | Drive IC | |
| Brand Name | RICHTEK | Place of Origin | Taiwan, China |
Product Description
Product Description
Product Description
The RT8010/A is a high efficiency Pulse-Width-Modulated (PWM) step-down DC/DC converter. Capable of delivering 1A output current over a wide input voltage range from 2.5V to 5.5V, the RT8010/A is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or from other power sources such as cellular phones, PDAs and hand-held devices.
Two operating modes are available including : PWM/Low-Dropout autoswitch and shutdown modes. The Internal synchronous rectifier with low RDS(ON) dramatically reduces conduction loss at PWM mode. No external Schottky diode is required in practical application.
The RT8010/A enters Low Dropout mode when normal PWM cannot provide regulated output voltage by continuously turning on the upper P-MOSFET. RT8010/A enter shut-down mode and consumes less than 0.1μA when EN pin is pulled low.
The switching ripple is easily smoothed-out by small package filtering elements due to a fixed operating frequency of 1.5MHz. This along with small WDFN-6L 2x2 and WQFN-16L 3x3 package provides small PCB area application. Other features include soft start, lower internal reference voltage with 2% accuracy, over temperature protection, and over current protection.
Terms
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packing & Delivery
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Our Services
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
