Home > Products > IC Brand List > L6219DS L6219 , DUAL FULL-BRIDGE PWM MOTOR DRIVER

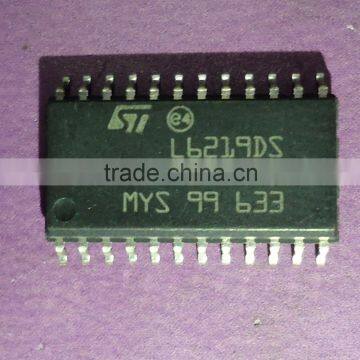

L6219DS L6219 , DUAL FULL-BRIDGE PWM MOTOR DRIVER

FOB Price

US$ 0.5 - 2 / Piece

1 Piece(Min. Order)

Port SZ/HK
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

D/C	10+	Package	SSOP
Model Number	L6219DS	Type	Drive IC
Brand Name	ST	Place of Origin	Taiwan, China

Product Description

The L6219DS motor driver is designed to drive both windings of a

bipolar stepper motor or bidirectionally control two dc motors. Both

bridges are capable of sustaining 45 V and include internal pulse-width

modulation (PWM) control of the output current to 750 mA. The outputs

have been optimized for a low output saturation voltage drop (less than

1.8 V total source plus sink at 500 mA).

For PWM current control, the maximum output current is deter-

mined by the user's selection of a reference voltage and sensing

resistor. Two logic-level inputs select output current limits of 0, 33,

67, or 100% of the maximum level. A PHASE input to each bridge

determines load current direction.

The bridges include both ground clamp and flyback diodes for

protection against inductive transients. Internally generated delays

prevent cross-over currents when switching current direction. Special

power-up sequencing is not required. Thermal protection circuitry

disables the outputs if the chip temperature exceeds safe operating

limits.

The L6219DS is supplied in a 24-pin surface-mountable SOIC. Its

batwing construction provides for maximum package power dissipation

in the smallest possible construction. This device is also available on

special order for operation from -40°C to +85°C or to +105°C. A lead-

free version (100% matte tin leadframe) is also available.
