Best quality Phenolic Insulation Foam Board Machinery in China

Specifications

Phenolic Insulation Foam Board Machinery:

The best insulation materials, very hot in China, take up 70% building materials in european country.

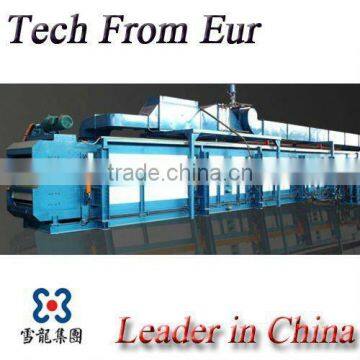

XL-FQ series Phenolic Insulation Foam Board Machinery is a professional machine for manufacturing sandwich panels of which the core material is Phenolic Insulation Foam Board Machinery production line and of which both layers is embossed aluminum foil or colored steel. The thickness of phenolic panel is 20-200mm, the width 1, 200mm and the length according to customers' requests. The sandwich panels are used as the air ducts in central air conditioning. The Phenolic Insulation Foam Board Machinery production line can used to make other insulation panel as long as the surface material is changed. The working principle of the Phenolic Insulation Foam Board Machinery production line is as below: Mix the raw materials with a certain ration in a container and then pour the mixture on the interlayer of the sandwich panel. Then the raw materials has the chemistry reaction of foaming and solidifying. In the end the automatic tracking cutting machine cuts the panels into a certain length.

Specifications:

1)     the panel thickness scope : 20 – 70mm

2)     Embossing aluminum foil thickness : 0.06 – 0.12mm

3)     The core panel material density :60 – 65 kg/m3

4)     Standard panel size : 4000 × 1200 mm (L×W)

5)     Manufacturing speed : 1 – 4 m/min

6)     Stirring speed : 4500 r/min

7)     Installation power : 198 kw

8)     The machine dimension : 45920×5365×3636 mm (L×W×H)

Applications: Used for producing PU and PF (Phenolic Insulation Foam Board Machinery production line) panels with aluminum foil on both sides or one side, PU and PF panels with colored steel or zinc-coated steel on both sides and other non-metal panels.

The components and its functions:
The components include: The aluminum foil embossing machine, the raw material distributor the aluminum foil/colored steel pre-heating installation, the material-baffling mechanism, the automatic tracking cutting machine, the roller supporters and brackets. All the components can be individually adjusted.

Delivery time: 60 days
