EPS Sandwich Panel Press Machine--High Efficiency

Specifications

Product Name: EPS Foam Sandwich Panel Machine
Model: XL-FH Series

1. BASIC DATA & TERMS:

Capacity: 0-4.5m/min, 400, 000 SQM/Year

Characteristic: Horizontal, continuous production,Stepless frequency control, cut by required length, Electrical Heating.

Factory Area: Around: 2000m², temperature: Higher than 20 degree

Required Power Supply: 32 KVA and 380V/50Hz

Manpower: 2-4 persons per eight (8) hour shift

Dimension: 45000*4500*2700mm

Machine Weight: 19T

Glue using: by glue pump, 0.25-0.4KG/m2

Thickness of Steel sheet: 0.3 - 0.6mm

Thickness of EPS: 48 - 298mm

Production: Cut by length automatically, if finished production, it stops automatically

Panel Shape By customer required

2. RAW MATERIALS FOR PRODUCTION REQUIREMENTS

1. Color steel plate :

Color steel plate Thickness: 0.4—0.6mm;

Width: 1200 mm or 1250 mm;

Coil aperture: 600 mm;

Weight ≤5 mt, Epoxy Coating≥3 mt ;

Surface paint does not fall off by bending

2. EPS block: Expanded polystyrene

EPS density: 16-20kg/m3;

Non-Straightness of the edge ≤ 1 mm/m;

Radian ≤ 3 mm/m;

Socket plate: 1150±1mm;

H plate: 1200±1mm;

Single plate length>5m;

Plate flat, Roughness<1.5mm/m;

Should adopt flame retardant EPS, oxygen index higher than 30.

EPS plate should be in accordance with GB10801

Different EPS board thickness of different sandwich panel thickness

Glue adopts PU, Bond strength>10N/cm²

PU glue has A, B two groups:

A group: Appearance: Yellow, viscous, homogeneous liquid

Viscosity: ND 0.4-0.7PA

B group: Appearance: Yellow, Brown, homogeneous liquid

Viscosity: ND 0.3-0.6PA

A, B group proportion normally is: 1:1.5 (different factories will be different)

Glue should be free of impurities, foaming time 20-40 seconds in the inside temperature. Solidification time should be 50-70 seconds.

4. Cover plates:Thickness: 0.4-.8mm, Width: 50mm, thickness: 78/74/65/68mm.

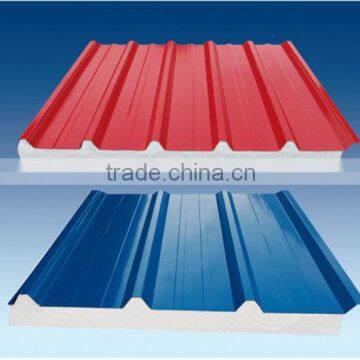

3. PANEL SHAPES BY REQUIREMENTS

Panel Roll Forming System

Locking Cap Roll Forming System

Cutting System
