84" industrial infrared multi touch screen kit with USB connector
- ShenZhen
- T/T Credit Card
You May Like
-
92" industrial infrared multi touch screen kit with USB connector
-
98" industrial infrared multi touch screen kit with USB connector
-
98" IR touch screen frame/infrared touch screen kit/Large touch screen panel
-
32" IR touch screen frame/infrared touch screen kit/Large touch screen panel
-
40" IR touch screen frame/infrared touch screen kit/Large touch screen panel
-
46" IR touch screen frame/infrared touch screen kit/Large touch screen panel
Product Details
Products Status | Stock | Screen Size | Other, 84" | |
Type | Infrared | Interface Type | USB | |
Resolution | Other, 4096x4096 | Brand Name | GreenTouch | |
Model Number | GT-IR-F84 | Place of Origin | Guangdong, China |
Product Description
Product Features:
1. Double-point write with peace,precise multi-point touching.
2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
3. Longevity of service ,maintenance free.
4. Aluminum alloy shell with strong stability.
5. Tempered glass with high light transmittance and true color rendition.
6. Without driver ,supporting plug and play.
7. Adapt to internal and external linked environment.
8. No touching tools,no special touching pen is required ,only your finger.
9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
other undesirable phenomena
Specifications
Touch Technology | Infrared Touch |
Performance | |
Resolution(Interpolation) | 4096*4096 |
Resolution(Interpolation) | 16:9,16:10,4:3 |
Linearity Error | 1.5mm |
Response Speed | <15ms |
Mechanical | |
Input Method | Finger, gloved hand, or opaque object |
Touch Times | Unlimited |
Touch Activation Force | No minimum touch activation force is required with IR touch technology
|
Minimum Touch Object | 5mm |
Environmental suitability | |
Temperature | Operating: -20°C ~ 70°C |
Storage: -40°C ~ 85°C | |
Relative Humidity | Operating: 90%(non-condensing at max 40°C) |
Storage: 90%(non-condensing at max 40°C) | |
Altitude | Up to 3,000m |
Life Time | At least 7-year |
Electrical | |
Scan frequency | 60Hz |
Communication interface | USB 2.0 or RS232 |
type | |
Output Format | Coordinate output |
Touch Accuracy | 2MM(Over 90%Area) |
Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
Power Supply | USB, power ripple max.200mV rms |
Power | <2W, operating current<200mA |
Agency Approvals | CE, FCC Class B |
Operatin current | <180mA |

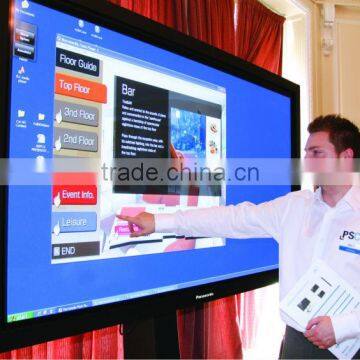

Applicaion
Product images
1.Focus on customer requirement,Provide customization service
2.More than 20 RD engineers fouce on touch screen techology, Fast provide solutions for customer
3.Automatic production Sealed dust-free workshops CE,UL, FCC approved
4.Fast respone and Fast delivery
Who we are
GreenTouch Technology Co., Ltd. is a professional manufacturer of touch screen and a high-tech enterprise.Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch screen. Our company has our own trademark—GreenTouch and provides customers with touch screens including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen and various touch screen monitors.GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001 Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. Our products have been certified to CE, FCC, ETL, ROHS and UL. The objective of GreenTouch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!
