Name:

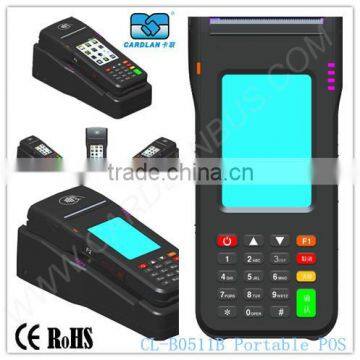

Portable POS( Fifth generation)

Model:

CL-B0511B

Software Platform:

Operating system:

Linux2.6.38

Compiler:

GCC-4.5.1

QT

QT Extended4.4.3

Hardware specifications:

CPU:

ARM1176JZF-S

Frequency:

St:533MHZ,Max:800MHZ

Memory:

DDR2:256Mbyte

HD:

256MByte

TF-card:

Micro TF card,Max 32GB

USB:

Micro AB / support USB OTG

RTC:

Support

Graphic acceleration:

Hardware 2D,3Dgraphic acceleration

LCD:

3.5inch TFT-LCD320*240(RGB)

TP:

4-wire resistance-type

Loudspeaker:

8OHM/1W buzzer

Camera:

3Megapixel

Phone Jack:

international standard 4 pin,support voice and earphone

Key:

USB key, hardware logic keys

Supporting card

Read card

Contact

ISO 7816-3compatible (reserved);one SIM card,4 PSAM card

Contactless

ISO/IEC14443 A/B layer compatible

voice function(reserved)

voice

input

Only through ear phone

output

GSM,only support ear phone

scanning:scanning and camera only choose one

scanning:

1D, 2D barcode scanning

camera:scanning and camera only choose one

camera:

Support 3Megapixel

Positioning

Positioning:

Beidou 2

Optional

GPS

Wireless communication

Bluetooth

BT 2.1

default

Bluetooth 4.0 BLE

optional

WIFI

IEC802.11 B/G/N

default

IEC802.11 A/B/G/N

optional

GPRS

Data,SMS,Voice

default

CDMA

Data,SMS,Voice

optional

3G

Data,SMS,Voice

optional

Power supply

Working voltage:

DC:9V 2A/3A

Battery supply:

Removable ,7.4v@3800mA/polymer lithium battery

;Wide temperature battery

Power consumption:

Power consumption::

48H(Standard environment and configuration / theoretical value)

Power off:8uW

Working environment

Working temperature::

-25℃~65℃

Storage temperature:

-40℃~75℃

Working Humidity:

0-90%(non-condensing)

physical parameter

Dimension:

218.2*87.8*61.6mm

Housing material:

engineering plastics,TPU

LCD display

display:

3.5" TFT LCD 320*240 (RGB)

Pilot lamp:

LED Pilot lamp

Key function

Key:

23-key keyboard

Sound prompt

sound:

buzzer,loudspeaker

RFID

standard:

ISO-14443 Type A/B

Reading distance:

0~50mm

Working frequency:

13.56Mhz

Card capacity:

91880000

Card type:

Mifare 1 card,CPU, Union pay IC card

Interface

Communication interface:

USB

Printing function

printing module:

Built-in thermal printer

Receipt width:

58mm

Working pattern

Working pattern:

Stand alone or network

Alarm

Alarm

Insufficient balance or data is full

Data collection

Wireless data collection

WIFI,Bluetooth,GPRS,CDMA,3G

Cable data collection

USB cable data collection
