WIFI Communication and USB Data Collection for Micro-Payment System, Support Remote Upgrade

Established in 2000, Shenzhen Cardlan Technology Co. Ltd has been in RFID bus payment field for 16year, one of the pioneers in this filed. We specialize in manufacturing high-quality "bus RFID card payment system"," automatic fare collection POS system", “off-line prepaid card payment system”,"urban all-in-one card system", "intelligent internet information system" and other RFID systems.

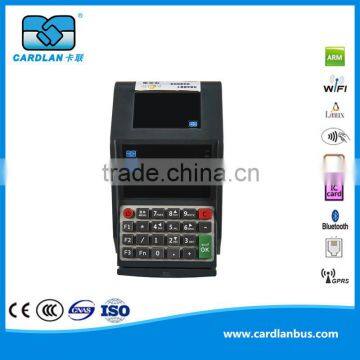

Model:CL-D309 POS terminal

Dimension:200*151*61.5mm

Material:Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference

Display:2.8 inch LCD display,320x240

Operating system:Linux 2.6 system

CPU:N32905 processor,ARM9 core @ 240MHZ

Memory:32MBytes SDRAM,128MB NANDFlash

Data capacity:259840 pcs of detailed data for console storage, unlimited data at GPRS storage

Card capacity:91,880,000 pcs

Black list:91,880,000 pcs (download thru PC with USB)

Working Voltage:DC 12V

Operating temperature:-25℃~65℃

Storage temperature:-40℃~85℃

Humidity:0-90% RH non condensing

Pilot lamp:Red, Green light

Sound prompt:Buzzer, single channel speaker (voice report)

Voice report prompt:16KHz,16bit single channel voice report prompt

Keypad:25 Alphanumeric buttons

RFID:Can read and write ISO1443 TYPE AB Electronic tag (Incl. Combi-Card )

Read card distance:0~50mm

Supporting card:Mifare 1 card, CPU card, UnionPay IC card

Frequency:13.56MHz

Interfaces/Connectors:RS232, USB

Printer modules:With in-built thermal printer

Width of receipt:58 mm

Power consumption:Static: ≤0.2 W  Dynamic:≤15 W

Communication Modules:GPRS(900Mhz/1800Mhz), or CDMA(800Mhz)

WIFI:Supporting 802.11n/b/g standards,150Mbps,2.4Ghz

UnionPay:Compatible for PBOC3.0 UnionPay card

Upgrading:Connect USB to PC, upgrade with GPRS

Data Retrieval:WIFI, GPRS, USB
