EMM-25-1 Portable Color Steel Roof Tile Roll Forming Machine
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
EMM30-252-1010 Portable Color Steel Roof Tile Roll Forming Machine
-
EMM-20-130-C Used Metal Roofing Cold Roll Forming Machine for Sales
-
EMM-20-130-C Metal Currugated Roofing Roll Forming Machine
-
EMM-110/30 Metal Stud Roll Forming Machine
-
DGF-41/40 Aluminum c Channel Roll Forming Machine for Sales
-
EMM29-197-1000 Aluminum C Channel Roll Forming Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | EMM | |
| Model Number | EMM-25-1 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

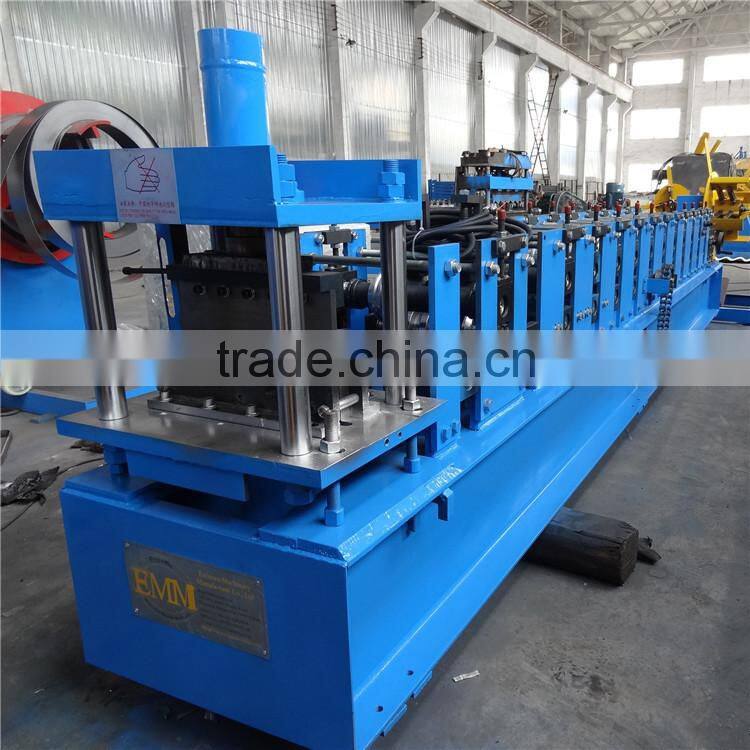

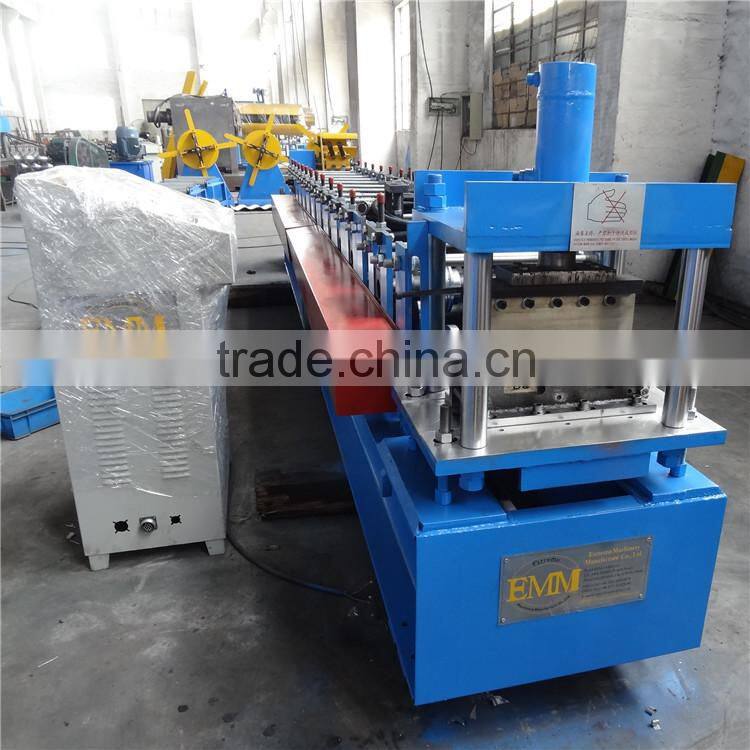

EMM-25-1 portable color steel roof tile roll forming machine
EMM-25-1 portable color steel roof tile roll forming machine
Basic Information:
Material Name:Galvanized sheet
Thickness:1.2mm
Products cutting error:≤±2mm
Floor area:12m×2m×3m (L×W×H)
Voltage:380V,50HZ, 3 phase
| No. | Name | Specification | Quantity |

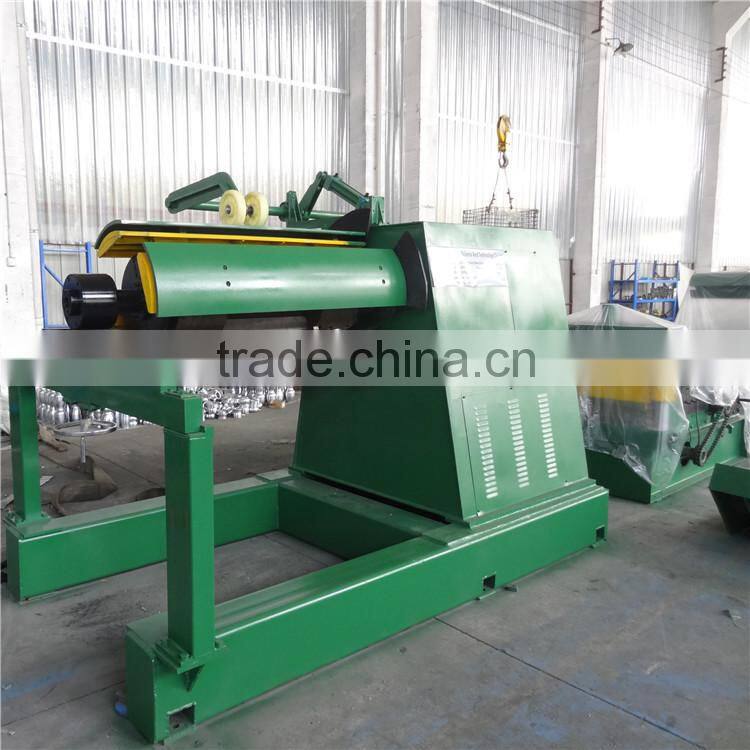

| 1 | One ton of manual decoiler | 1. Material thickness:0.1~2mm | 1set |
| 2. Material width:20~350mm | |||
| 3. Feed speed: follow-up | |||
| 4. Rated load:1T;limit load:1.5T; | |||
| 5. Steel volumes of hole:508mm;OD:1350mm; | |||
| 6. Tensioning type:Manual screw tensioning | |||

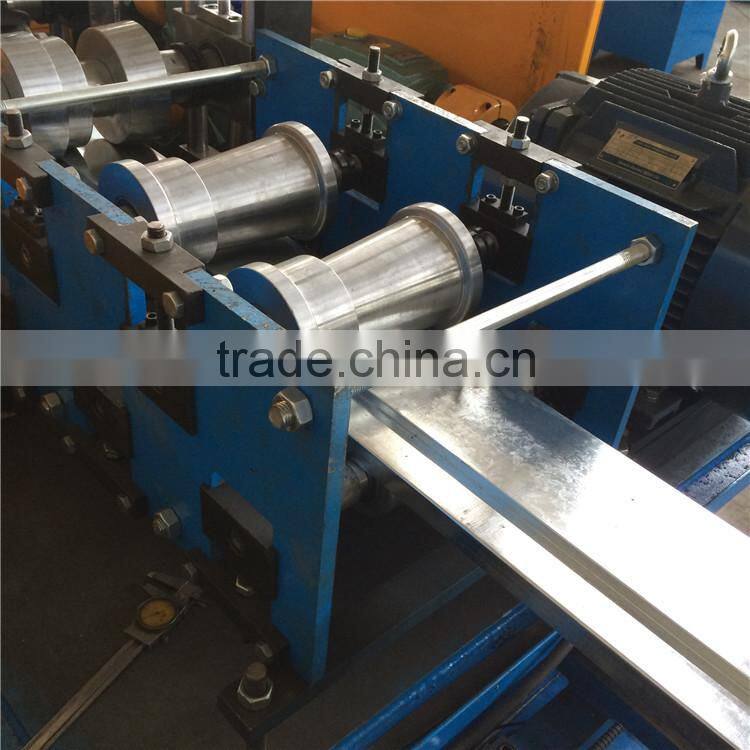

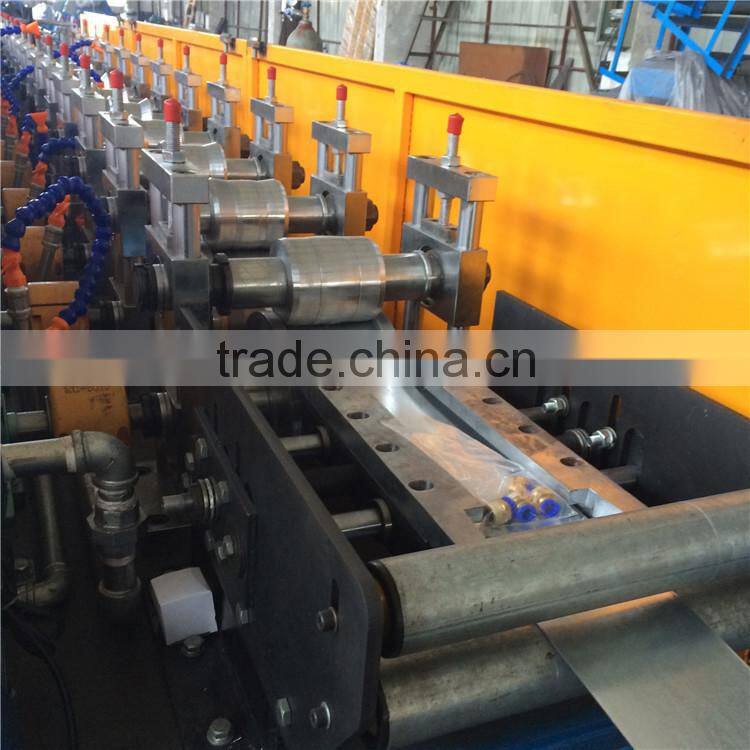

| 2 | Rolling forming parts | 1. spindle:dia50mm, 40Cr,The drive shaft | 1set |
| 2. forming passes:14;fame:Guide pillar arch structure | |||
| 3. roll speed:0~15m/min | |||
| 4. Siemens three-phase motor,11KW four level one set | |||
| 5. drive:Turbine worm reducer | |||
| 6. protection mesh enclosure | |||
| 3 | Tracking cutting machine | 1. Cutting type:Hydraulic cutting | 1set |
| 2. control type:Servo trace ,Digital fixed-length | |||
| 4 | Automatic pallet loading | 1. Photoelectric sensor; | |
| 2. Cylinder control,Cantilever material; | |||
| 3. Automatic pallet; | |||
| 5 | Computer control system | 1. transducer:Siemens or mitsubishi | 1set |
| 2. PLC: Mitsubishi and Siemens | |||
| 3. encoder:Omron(2000P) | |||
| 4. touch screen:Mitsubishi or Siemens | |||
| 5. A key remote control, automatic stop |
Portable metal roofing roll forming machine 's forming production linetechnical process
Manual feeding→Feeding guide→roll forming →straightening→Track to cut off→Automatic material pallet
This production line can automatic continuous rolling forming ,track scale cut off and etc for the plate, ensure the continuity of production and often can up to max. Steel strip coil are on manual feeding shelf, enter into roll forming machine for forming, and then cut the knife moulds to cut the product for length.
| NO. | Device name | Quantity |
| 1 | One ton manual decoiler | 1set |
| 2 | Guide rack | 1set |
| 3 | the host(Including roller, cooling system, protective cover) | 1set |
| 4 | 5 roll Straightening frame | 1set |
| 5 | Trace length to cut off the table(Including the moulds) | 1set |
| 6 | Automatic pallet loading | 1set |
| 8 | Computer control system | 1set |
Portable metal roofing roll forming machine
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
After-Sale Service
After-Sale Service1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
EMM CHINA V5330*35-100 metal cutting band saw machine
Portable metal roofing roll forming machine
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
Portable metal roofing roll forming machine
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
EMM-25-1 portable color steel roof tile roll forming machine
