DGF-41/40 Metal Forming Machine
- Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | EMM | |
| Model Number | DGF-41/40 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

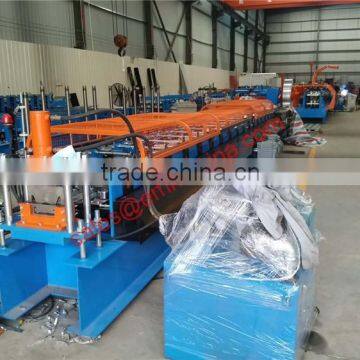

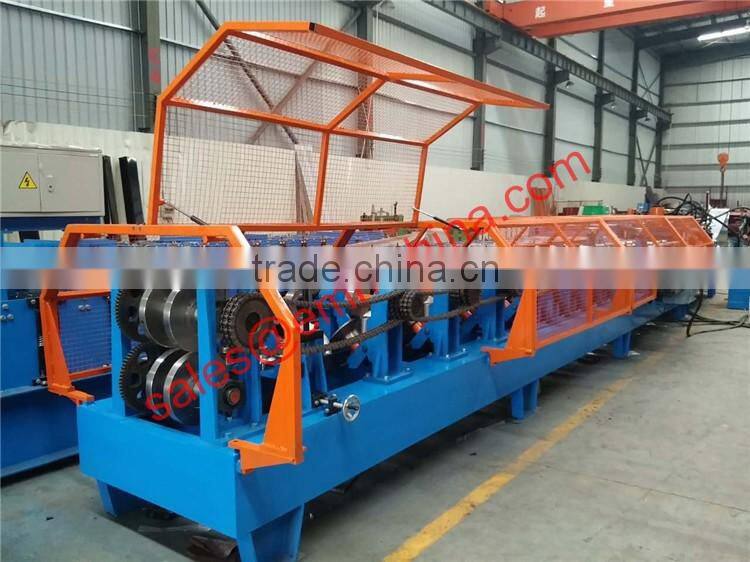

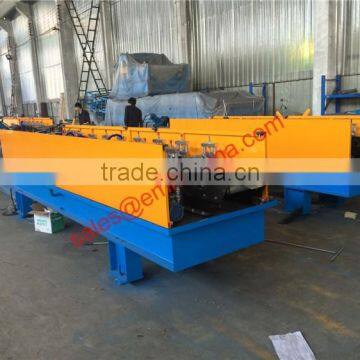

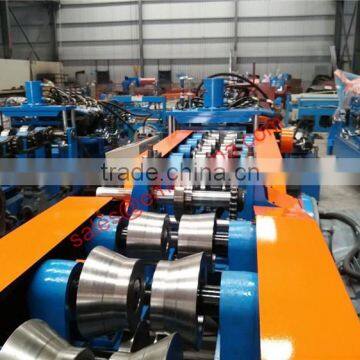

DGF-41/40 metal forming machine
The wall panel roll forming machine uses a metal coil for raw materials, unwinding, continuous forming, cutting to length automatically into a specific shape file. It adopts PLC control, AC frequency control technology, with double forming, not only save space, also achieve continuous automated production, is cold-formed steel and metal processing industries ideal production equipment.
No | Item | Parameter | Remark | |
1
| Material | Type | cold-rolled strip |
|
Thickness(mm) | 1.5-2.0 |
| ||
Yield strength (Mpa) | 235-345 |
| ||
Width (mm) | As the detail drawing |
| ||
2 | Rolling speed(m/min) | About 20-25 | not include the cut off time | |
3 | Forming machine main power (KW) | 11kw | For reference | |
4 | hydraulic pressure station (KW) | 5.5 | For reference | |
5 | Uncoil motor power(kw) | 3kw | For reference | |
7 | Main power | 39.5 | For reference | |
8 | Power | AC220V,60Hz,3phase |
| |
9 | Machine size | About 8.×1.6×1.3 | For reference | |
Technological process
Electrical uncoil – guid feed- roll forming – cut to length – finish product
1. uncoil system
Loading : 3 T
Coil inside diameter : φ508mm
Coil width : 400mm
Coil outside diameter: φ1350mm
Feeding motor : 3Kw
DGF-41/40 metal forming machine
