Detector Switch
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | HW | |
| Model Number | TPS-12NTL |
Product Description

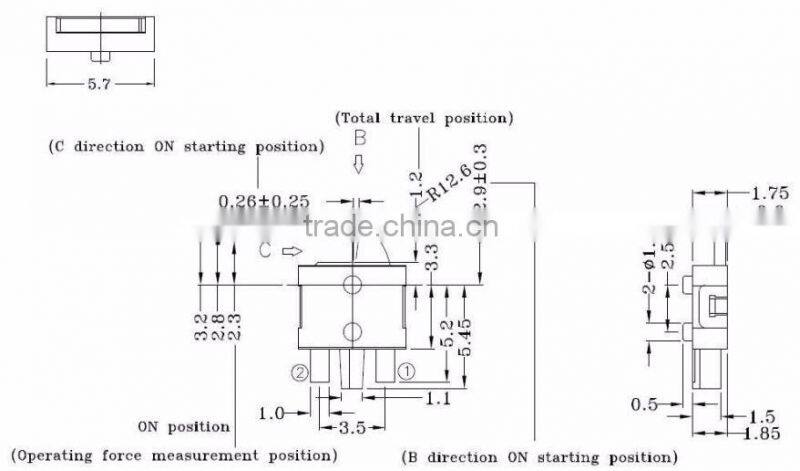

Detector Switch
Part number: TPS-12NTL
- Electrical Rating: DC 3V 50 uA ~ DC 5V 10mA (resistance load)
- Operating temperature range: -20°C ~ +70°C
Electrical performance:
| Operating Force | Less than 1 with knob pushed 2.3mm inside. |
| Insulation resistance | More than 100 M at 100 VDC. |
| Withstanding voltage | 100VAC, 1 minute. |
Durability:
| Endurance with load | 100,000 cycles operations at a rate of 15~20 cycle 1 minute with 5 VDC 10mA (knob pushed 1.5mm inside) |
| Vibration proof | Measured after the switch is fixed in a chamber nuder below condition. |
Specification after durability and environment:
| Operating force | Less than 0.35N (36 gf). |
| Contact resistance | Less than 10Ω |
| Insulation resistance | More than 10MΩ |
| Withstanding voltage | 100 VAC, 1minute |
Contact Us
- Honest-well Co., Ltd.
- Contact nameHarold Yeh Chat Now
- Phone886-02-22190080
- Address4/F, No. 4, Ln. 560
