P13 Series Pushbutton Switch
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | HW | |

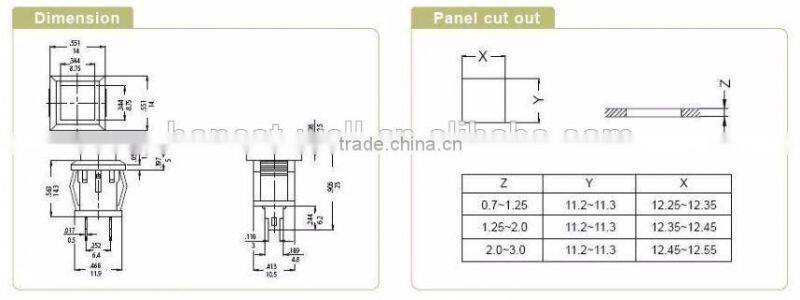

| Model Number | P13 | Size | 11.2 X 12.3 mm | |
| Mechanical Life | 30,000 |
Product Description
P13 Series Pushbutton Switch
Specification:
- Electrical Rating:
- 1A 250VAC (UL)
- 1A 250VAC/3A 125VAC (VDE)
- Mechanical Life: Over 30,000 cycles
- Electrical Life: 10,000 cycles
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 1,000MΩ
- High Voltage Resistance: > 1,500V 1 min
- Ambient Temperature:
- Terminal Side: -20°C ~ 85°C
- Actuating Side: -20°C ~ 55°C
- Storage Temperature: -30°C ~ 80°C max.
- Atmospheric Humidity: max 85%
- Actuating Force: 3~6N
- Flammability: 94V-2
- Temperature Rise at Terminal: max 30°C (UL1054)
- Solder Ability of Terminal: max 350°C, 3s
Materials:
- Housing: PA66
- Rocker: PA66
- Contact: Silver Alloy
- Terminal: Copper or Brass Silver Plated
- Spring: SWP, SWB, SUS301
- Movable Arm: Copper Silver Plated
