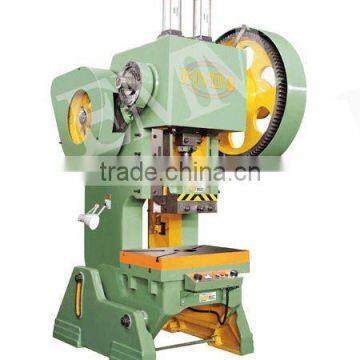

EMH23-35 C-Frame High Performance Inclinable Presses
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Jiangsu, China | |
| Brand Name | EMM | Model Number | EMH23-25 |
Product Description
Specifications
rigid transfer clutch, simple structure, easy maintenance, the use of helical gears, smooth, the impact of small, low noise.Features:
1. The lathe features good rigidness, stable precision, slider with mechanical overload protection device, and it is safe, reliable and has a long service life.
2. The machine adopts combined pneumatic friction clutch-brake, and it features compact structure, smooth transmission, flexible action, convenient operation and low noise.
3. By means of electrical devices and pneumatic control, the machine can make jog, single, and continuous punching, as well as emergent brake.
4. There is a socket for the installation of photoelectric protection device in the electrical control system, which meets the safety requirements of users.
5. The lathe features high efficiency of automatic production.
6. With high performance and reasonable price, EMH23 is an upgrade product for EMM23.
Technical Data:
Specifications | Unit | EMH23-35 | |
Nominal Capacity (Pe) | KN | 350 | |
Nominal Stoke(Sp) | mm | 3.5 | |
Nominal Stoke(S) | mm | 80 | |
Slide Strokes Pre Minute(n) | times/min | 60 | |
Maximum Die Set Height(H2) | mm | 290 | |
Die Height Adjustment(t) | mm | 60 | |
Throat Depth(C1) | mm | 220 | |
Distance Between Uprights(d1) | mm | 280 | |
Slide Bottom Size | L×R(a) | mm | 250 |
F×B(b) | mm | 220 | |
Stem hole Size | Dia(d) | mm | 40 |
Depth(l) | mm | 60 | |
| L×R(C) | mm | 610 |
F×B(D) | mm | 400 | |
Blanking hole diameter(Φ) | mm | 120 | |
Bolster Thickness(H3) | mm | 60 | |
Max. Angle Of Inclination(2) |
| 30 | |
Bolster Surface Height(H1) | mm | 805 | |
Overall Dimensions | F×B(A) | mm | 1462 |
L×R(B) | mm | 1195 | |
H | mm | 2215 | |
Distance Between Foundation Bolts | F×B(a’) | mm | 1020 |
L×R(b’) | mm | 650 | |
Motor Power | KW | 4 | |
Weight(Approximate) | KG | 2530 | |
