Home > Products > Angle Notching Machine & Rolling Machine > W11S-25X3000 tube rolling machine
W11S-25X3000 tube rolling machine
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | EMM | Model Number | W11S-25X3000 | |
| Machine Type | Other, plate rolling machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Carbon Steel | Power | Other, mechanical | |
| Automation | Other, NC | Extra Services | End Forming | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
W11S-25X3000 tube rolling machine1.NC control
2.Hydraulic system
3.Pre-bending function

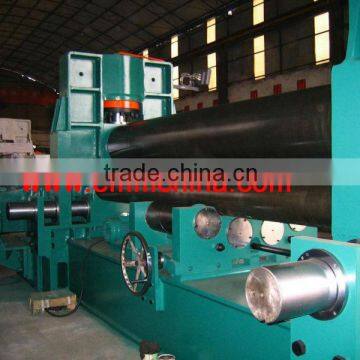

W11S-25X3000 tube rolling machine
1 .Introduction
The machine is a kind of three-roller machine with liquid pressure for all-purposes. It can shape steel board into cylinder, U model etc.
The upper roller may move vertically or horizontally.
Pre-bend of steel board performs with movement of upper roller based on no symmetry of location. Round mode of steel performs by two down rollers with slowdown of running from electric machine
The down roller fix the height, so material can easily enter the machine and workers operate machine expediently.
Use the industrial touch screen, man-machine series of touch screen with PLC can achieve the best effect.
2 .Main technical parameter of the equipment
Part number | W11S-25*3000 |
Add pressure | 230 Tons |
Rolling capacity | 245Mpa |
Max bending length | 3000 mm |
Roller working length | 3100 mm |
Axletree | wafangdian Axletree |
Roller material | 42 CrMo |
Diameter of upper roller | 410 mm |
Diameter of down roller | 235 mm |
Center distance | 380 mm |
Speed of roll | About 4 m/min |
Full load condition End line length | ≤(3-2.5)times plate thickness |
Oil cylinder driving speed | 120mm/rmin |
Quantity of supporting rollers | 4 |
Group quantity of supporting rollers | 1 |
Power of key electric machine | YZR30-8KW |
Power of electric machine with liquid pressure | 11 KW |
Power of removable electronic machine | 4 KW |
