100-600M Water Boring Machine and Water Well Drilling Rig Price

    600M Water Boring Machine and Water Well Drilling Rig Price

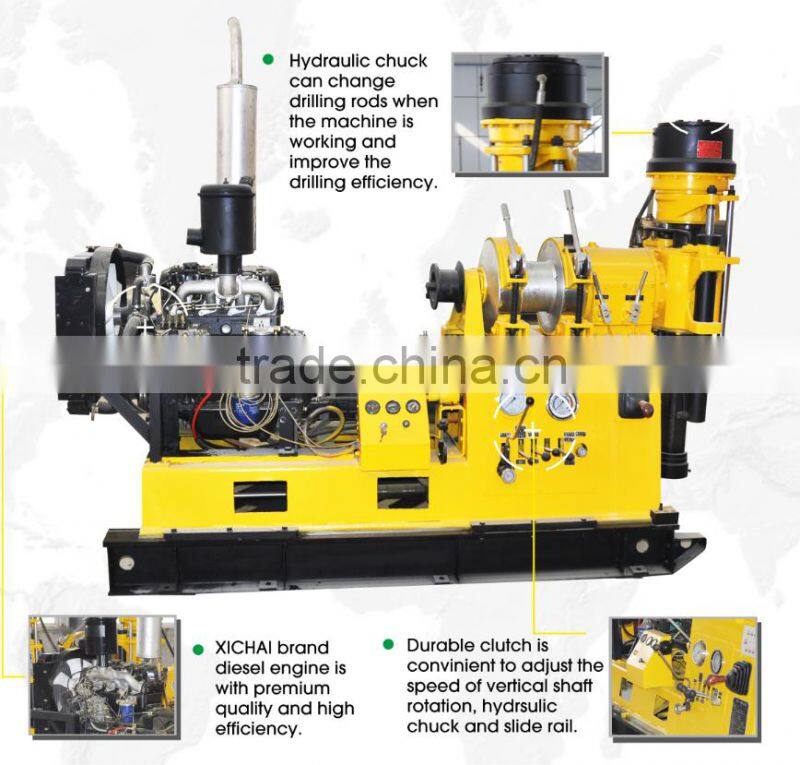

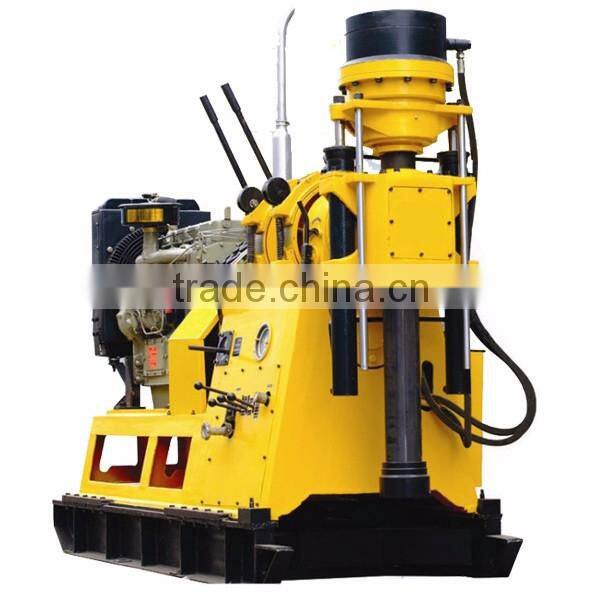

       This series Drilling Rig is a shallow/medium depth hole spindle type core drilling rig.The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests. It adopts electric motor or diesel engine as power unit. The rig owns simple structure and is easy to operate.

 The Main Features:

1. The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.
2. The rig’s spindle inner diameter is 96mm, driven by mechanical system, can output big torque. The winch can lift max. 3000kg with single line.
3.  Hydraulic system controls the feeding pressure and speed of the spindle. The machine is equipped with pressure meter so that the workers can grasp hole situation.

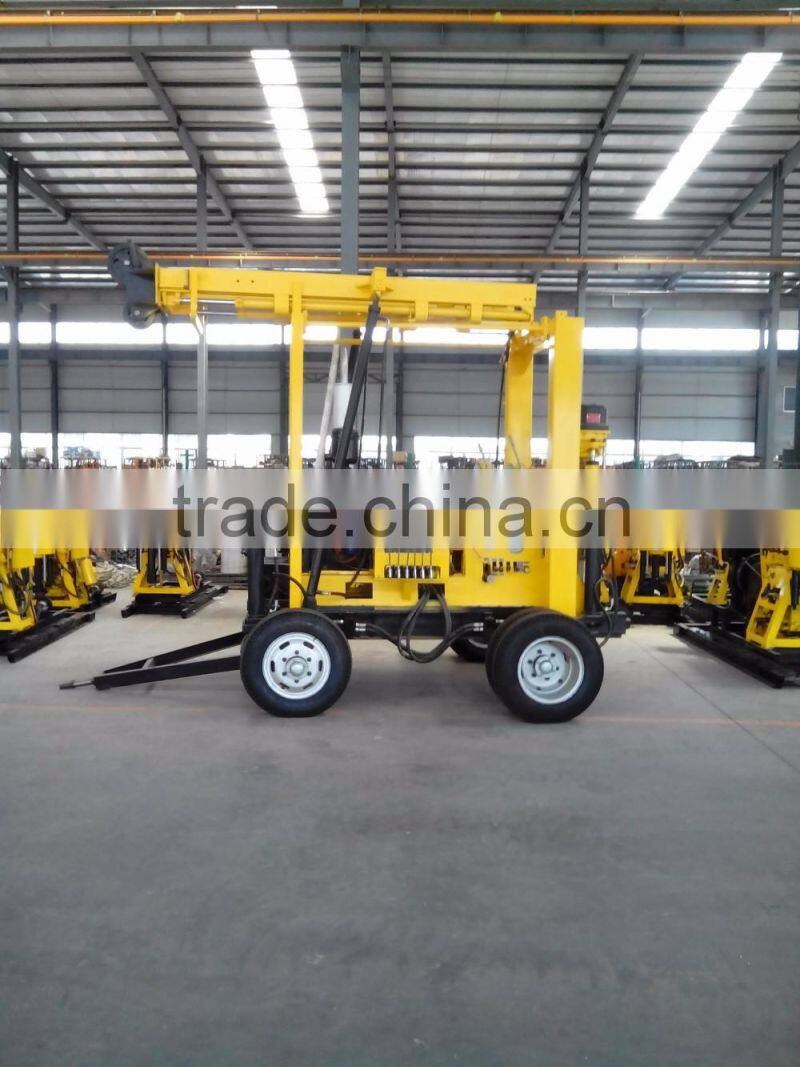

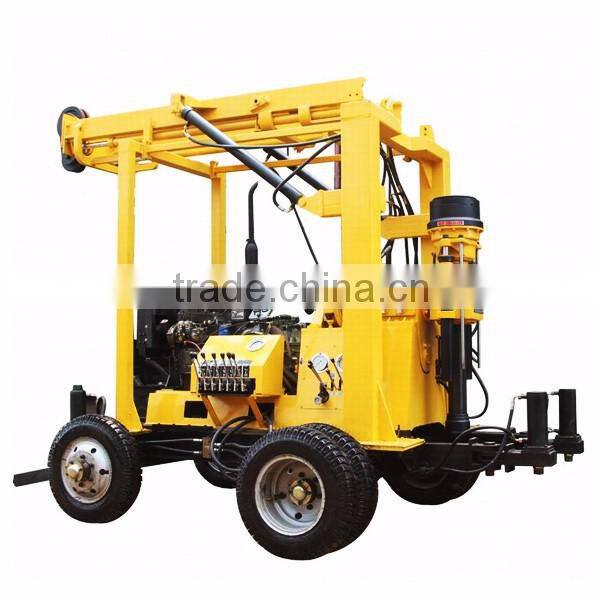

       To satisfy customers special requirements, we design below new models based on XY-3 original drilling rig XYX-3 trailer-mounted drilling rig, XYD-3 crawler-mounted self-propelled drilling rig(options; steel crawler and rubber crawler) and XYC-3 truck-mounted drilling rig. The machine can also adapt 1.5m high hydraulic cylinder jacks that can load &unload machine from truck. Hydraulic drill mast saves the workers’ labor and improves the working efficiency.

Pre-Sales Service

-Quotation and Technical Consulting Support.

-Brochure, Picture and Video for Reference.

-Factory Visit and Inspection.

After-Sales Service

-Free Training for installation and operation of drilling rig in China.

-Engineers available for technical guidance at work site overseas.

1. What’s the application for your Core Drilling Machine?

-Commonly for water well/project, core sampling, soil testing, prospection of mineral and oil, and so on.

2. The capacity of caliber/diameter, depth of your rigs?

-Generally 30-200m for water well drilling, 30-1000m for core sample drilling, contact for more details.

3. What soil/land condition does your rig working for?

A. Water drilling for soil, sand, weathered land, rocky area.

B. Core drilling for soil, sand, soft and hard rock bed, or mixed one.

C. DTH drilling for half tough land, hard rocky land.

Please contact us for more details and model selection suggestion.
