Home > Products > Solid Carbide End Mills > yg10x solid tungsten carbide end mill
yg10x solid tungsten carbide end mill
- ningbo for tungsten carbide end mill
- T/T L/C
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZY brand for tungsten carbide end mill | |
| Model Number | IMA 3*9*D6*L50*2F for tungsten carbide end mill | Material | Carbide | |
| Diameter | carbide end mill (3-20) | Type | End Mill | |
| Coating | TiAIN | Overall Length | carbide end mill (50-100) |
Product Description
yg10x solid tungsten carbide end mill,
We are the professional for this yg10x solid tungsten carbide end mill , sintered yg15 K034 tungsten carbide tipped drill bits for more than 10years. We are call "RCT Co. " before, which was built in 20years ago.
After more than ten years develop, from the year 2012, we rebuild a new company for tungsten carbide products only.
Now we have :
tungsten carbide drill bit insert
sintered yg15 K034 tungsten carbide tipped drill bits,
tungsten carbide rods (extruded process),
tungsten carbide flats ( extruded process, and the length could be 1000mm),
tungsten carbide buttons,
tungsten carbide brazed tips,
tungsten carbide indexable inserts,
tungsten carbide tips for router bits,
tungsten carbide reversible knives,
tungsten carbide scraper blade
and etc.

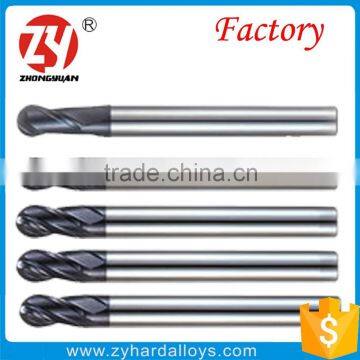

solid carbide ball end mills, tungsten carbide end mill
solid carbide ball-nose end mill, tungsten carbide end mill
solid carbide end mill for aluminum, tungsten carbide end mill
standard solid carbide end mill, tungsten carbide end mill
Tungsten Carbide Solid end mills:
1. Micrograin carbide rod:
WC=90%, Co=10%, TRS>4000N/mm2; Hardness>92HRA, Grain size: 0.6um; High qulaity of wearability and impact
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3 Each end mill is inspected by Zoller measuring and inspected machine.
4. We accept the specification as your requirement.
5. Work Piece: design for Aluminum specially
(Order No) | cutting | shank | Flute | A.O.L |
d | D | l | L | |
IMA 3×9×D6×L50×2F | 3 | 6 | 9 | 50 |
IMA 4×12×D6×L50×2F | 4 | 6 | 12 | 50 |
IMA 5×15×D6×L50×2F | 5 | 6 | 15 | 50 |
IMA 6×18×D6×L60×2F | 6 | 6 | 18 | 50 |
IMA 8×20×D8×L60×2F | 8 | 8 | 20 | 60 |
IMA 10×30×D10×L75×2F | 10 | 10 | 30 | 75 |
IMA 12×32×D12×L75×2F | 12 | 12 | 32 | 75 |
IMA 16×45×D16×L100×2F | 16 | 16 | 45 | 100 |
IMA 20×45×D20×L100×2F | 20 | 20 | 45 | 100 |
| Order No | d | l | D | L | Price |
| 1.0×3×4D×50L×4F | 1 | 3 | 4 | 50 | 40 |
| 1.5×4×4D×50L×4F | 1.5 | 4 | 4 | 50 | 40 |
| 2.0×6×4D×50L×4F | 2 | 6 | 4 | 50 | 40 |
| 2.5×8×4D×50L×4F | 2.5 | 8 | 4 | 50 | 40 |
| 3.0×8×4D×50L×4F | 3 | 8 | 4 | 50 | 40 |
| 3.5×10×4D×50L×4F | 3.5 | 10 | 4 | 50 | 40 |
| 4.0×11×4D×50L×4F | 4 | 11 | 4 | 50 | 40 |
| 3.0×8×6D×50L×4F | 3 | 8 | 6 | 50 | 66 |
| 3.5×10×6D×50L×4F | 3.5 | 10 | 6 | 50 | 66 |
| 4.0×11×6D×50L×4F | 4 | 11 | 6 | 50 | 66 |
| 4.5×13×6D×50L×4F | 4.5 | 13 | 6 | 50 | 66 |
| 5.0×13×6D×50L×4F | 5 | 13 | 6 | 50 | 66 |
| 5.5×13×6D×50L×4F | 5.5 | 13 | 6 | 50 | 66 |
| 6.0×15×6D×50L×4F | 6 | 15 | 6 | 50 | 66 |
| 7.0×16×8D×60L×4F | 7 | 16 | 8 | 60 | 110 |
| 8.0×20×8D×60L×4F | 8 | 20 | 8 | 60 | 110 |
| 9×20×10D×75L×4F | 9 | 20 | 10 | 75 | 164 |
| 10×25×10D×75L×4F | 10 | 25 | 10 | 75 | 164 |
| 11×25×12D×75L×4F | 11 | 25 | 12 | 75 | 230 |
| 12×30×12D×75L×4F | 12 | 30 | 12 | 75 | 230 |
| 14×35×14D×100L×4F | 14 | 35 | 14 | 100 | 350 |
| 16×40×16D×100L×4F | 16 | 40 | 16 | 100 | 460 |
| 18×45×18D×100L×4F | 18 | 40 | 18 | 100 | 600 |
| 20×45×20D×100L×4F | 20 | 45 | 20 | 100 | 700 |
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 - 30 days for production.
But for new molds, the delivery date may 10days more, as we need about 10days to develop and check new molds.
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case / metal drum for protection.
Q 4. Made by cutermized drawing or not?
A. We have mold design department. So we could produce goods with our own molds and with your drawing.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. monthly, we could supply 10–40 tons per month.
Q 8.Where is your market?
A. Our products are popular in Germany, America, Brazil, India, Russia, Indonesia, Philippines, Italy, Pakistan South Africa, Egypt and etc.
Q 9. For more informations for tungsten carbide tools, do contact with me. No matter by Email, by trademanager, by enquiry, by Skype and etc is ok.

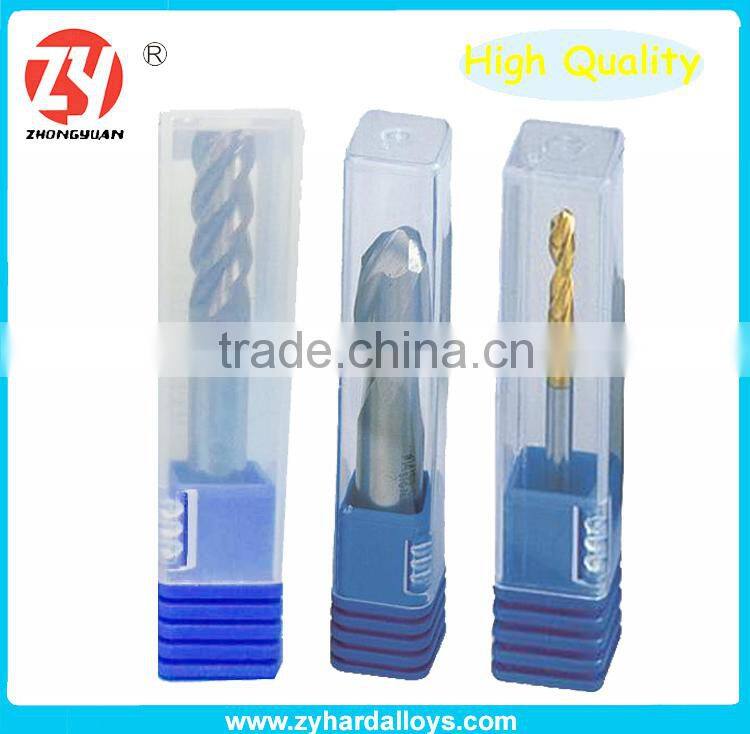

Plastic box packing for Solid tungsten carbide end mills:
Factory and Equipments ( professional manufacturer for tungsten carbide tools, many years experience)
Office ( good office for good business. Believe me, we could cooperate very well).
Main products ( carbide rods, carbide flat, saw tips, brazed tips and etc):
Main products ( Carbide Indexable inserts, rings, drawing dies, percussie drill tips, K034 , carbide buttons and etc)
