Hot Selling High Quality Competitive Price Multifunctional Rotary 200-1000m Deep Hydraulic Portable Drilling Rig

Hot Selling High Quality Competitive Price Multifunctional

Rotary 200-1000m Deep Hydraulic Portable Drilling Rig

 The main characteristics of portable drilling rig:

Portable drilling rigs are suitable for core drill and general geological engineering exploration drill. The drill is modular design and made of high-strength aluminum materials, which ensure high standards of toughness while greatly reduce the weight of rig. The max component weights 160kg, which is convenient for human transportation in the road-limited area.

LIGHT

Modularized design, less than 160kg weight of the weightiest module, suitable for human handling. Drilling angle variable between 45 to 90. Light weight design, more than 80% of the structural parts are high strength aviation aluminum.

FAST

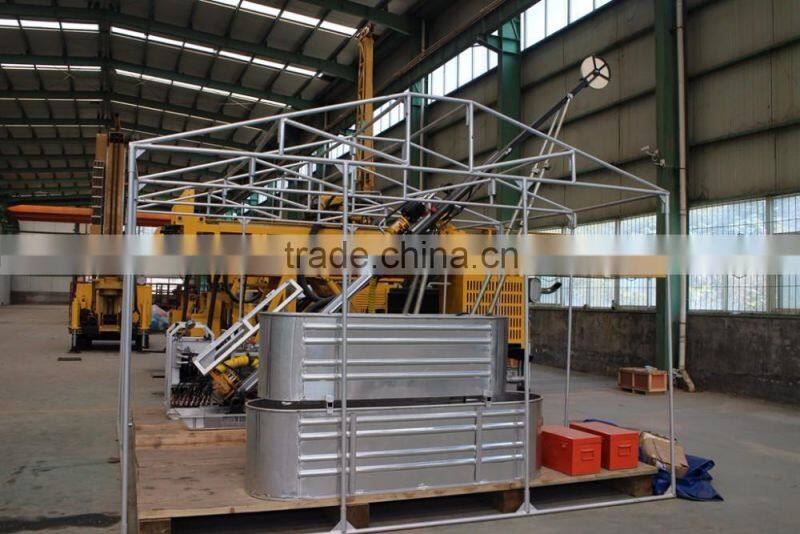

4m*4m working platform, 2 hours assembling and disassembling, fast shifting between holes.

Original KUBOTA diesel engine is strong and powerful.

Thin-wall drill rod and drill bit perform fast drilling.

Pro-environment

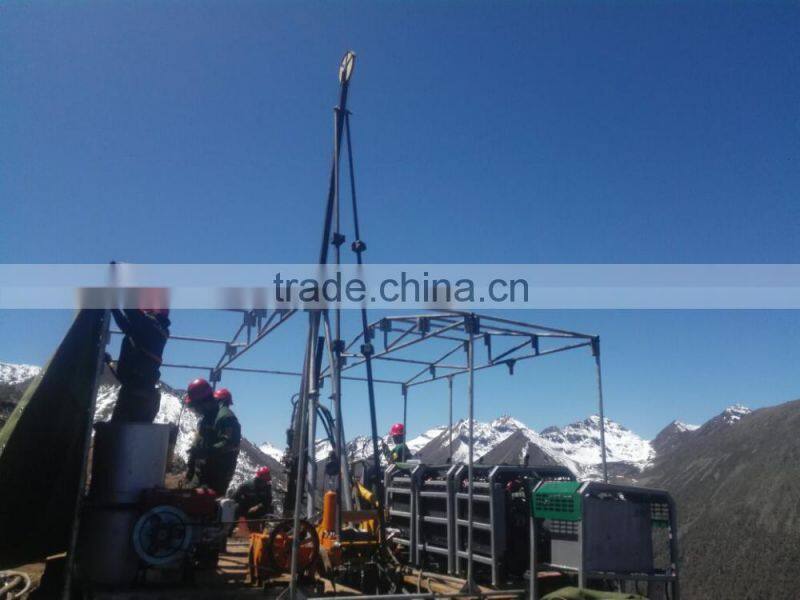

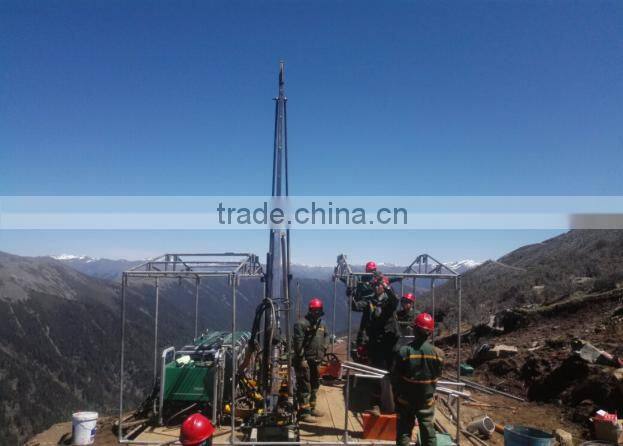

The portable drilling rig can be easily handled by manpower and no roads will be needed.

As footprints traces are limited and restoration of the environment is relatively simple, the influence on the natural environment is very small.

RELIABLE

Hydraulic system integration, optimize the pipeline, enhance the reliability;

Hydraulic automatic protection system to prevent accidents.

 Product Parts

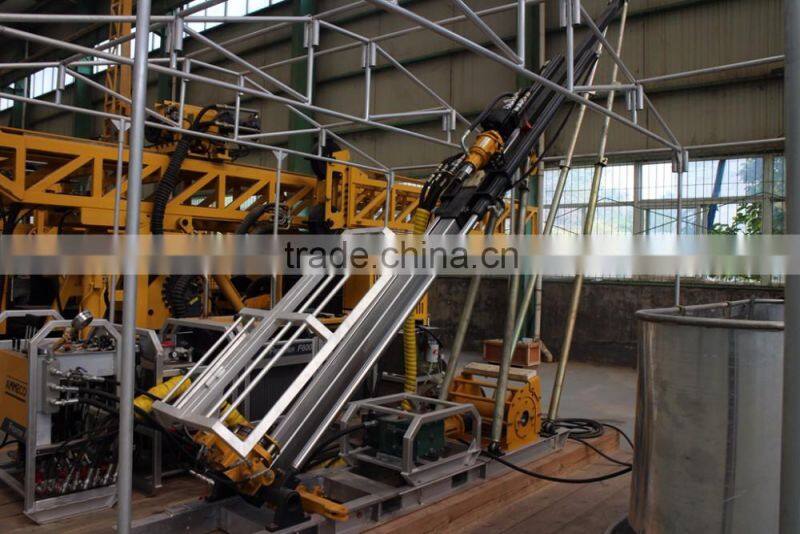

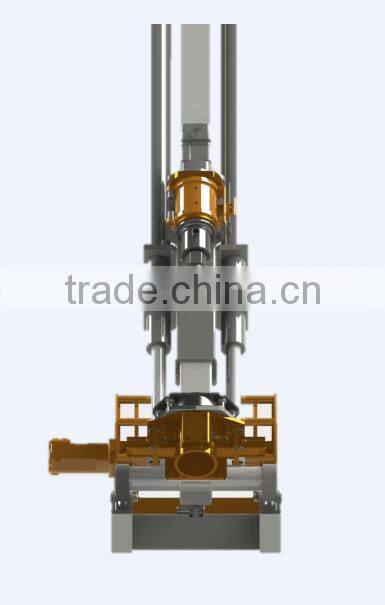

 Drill Frame

This drill is made of high-strength aluminum materials, durable and reliable.

Engine

The diesel engine is KUBOT, powerful, low noise, and adapt multifarious environment.

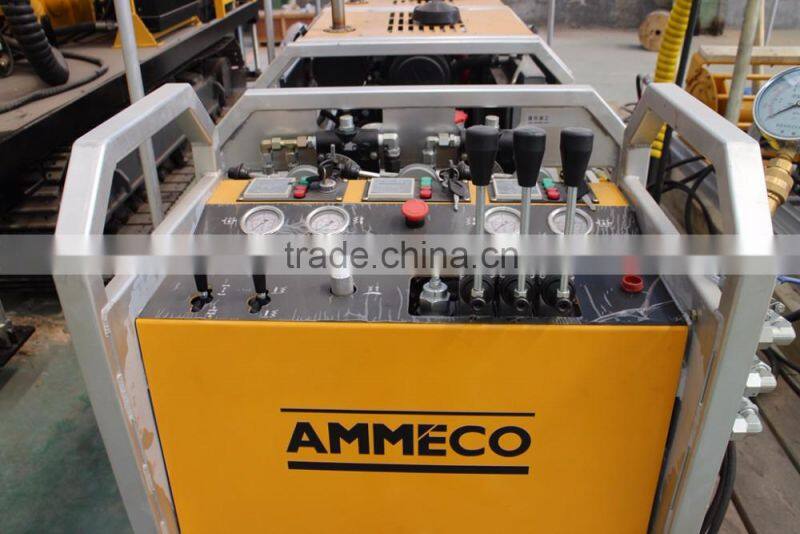

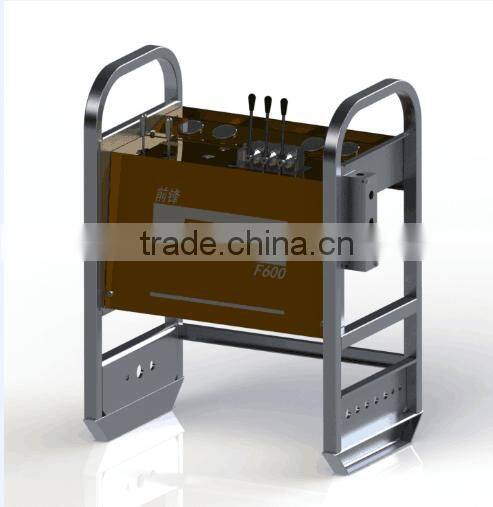

Hydraulic Operation Platform

Easy to operate, the system pressure, the blessing force and bit load

parameters are displayed on the meter.

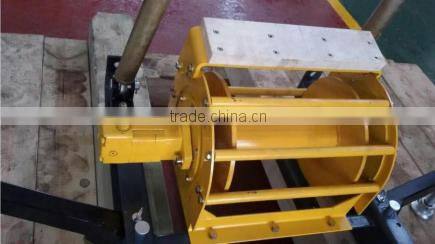

Wireline winch

Hoist with automatic rope system, very fast.

Weight: 60kg

L*W*H: 660*400*365mm

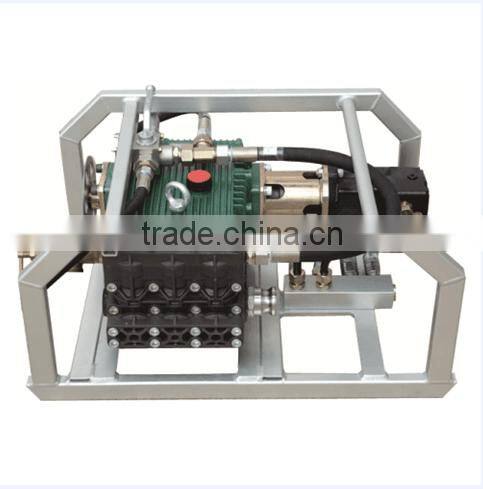

Mud Pump

Plunger pump with max 80L/min flow rate and max 75bar pressure output.

Weight: 59kg

L*W*H: 810*480*340mm

Pre-Sales Service

-Quotation and Technical Consulting Support.

-Brochure, Picture and Video for Reference.

-Factory Visit and Inspection.

After-Sales Service

-Free Training for installation and operation of drilling rig in China.

-Engineers available for technical guidance at work site overseas.

 1. What’s the application for your portable drilling rig?

Commonly for water well/project, core sampling, soil testing, prospection of mineral and oil, and so on.

2. The capacity of caliber/diameter, depth of your portable drilling rig?

Generally 30-200m for water well drilling, 30-1000m for core sample drilling, contact for more details.

3. What soil/land condition does your portable drilling rig working for?

A. Water drilling for soil, sand, weathered land, rocky area.

B. Core drilling for soil, sand, soft and hard rock bed, or mixed one.

C. DTH drilling for half tough land, hard rocky land.

Please contact us for more details and model selection suggestion.
