plastic support jacks for outdoor decking floor
- 1200 Set / Sets per Month
- Guangzhou
- Credit Card
You May Like
Product Details
Brand Name | MexyBase | Model Number | MB-PFD | |
Type | Flooring Jack | Min Height | 40mm | |
Max Height | 1200mm | Capacity (Load) | 11-20T |
Product Description
Brand: MexyBase
Name: Height adjustable pedestal
Material: 90% PP and 10% additive (UV resistance , waterproof , antioxidant etc )
Loading abitilty: about 2-2.5t per pedestal
Compensate slope: 0%-5% slope

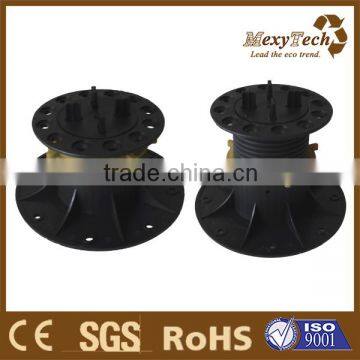

1.Pedestal Details
2.Project Photos
3.The loading ability?
Code | Height(mm) | Working loading(KG) | Max loading(KG) | ||||
Entire | Half | Quarter | Entire | Half | Quarter | ||
MT-DPA0 | 92-149 | 2235 | 1840 | 935 | 4537 | 3463 | 1988 |
MT-DPA1 | 188-299 | 1850 | 1500 | 825 | 3728 | 3105 | 1800 |
MT-DPA2 | 274-453 | 1740 | 1475 | 790 | 3660 | 2963 | 1687 |
MT-DPA3 | 360-607 | 1675 | 1405 | 785 | 3609 | 2816 | 1583 |
MT-DPA4 | 446-763 | 1600 | 1380 | 760 | 3532 | 2777 | 1580 |
MT-DPA5 | 532-919 | 1520 | 1225 | 750 | 3463 | 2705 | 1566 |
MT-DPA6 | 618-1075 | 1465 | 1110 | 725 | 3308 | 2643 | 1534 |
MT-DPA7 | 704-1231 | 1390 | 1055 | 700 | 3300 | 2598 | 1533 |
MT-DPA8 | 790-1387 | 1310 | 985 | 680 | 3107 | 2537 | 1503 |
MexyTech Co., Ltd have been in wpc business for more than 8 years.
Through 8-years development and research, We have been one company combine R&D, design, production, recycle, marketing in one.
Nowadays, MexyTech have 60 production lines and R&D testing lab and our products are popular to many countries.
We created Mexybase to meet customer's requirments and it's no doubt that MexyBase is one of the branch of MexyTech.
Since we have 9 years experence in wpc business experience, we did some improvements on the traditional pedestal which make the pedestal more suitable to construction work.
If you are interest in our brand , you can have a look in our homepage .
Following is the drawing of our factory in Guangzhou and our recent projects.
1. How many pcs of pedestal do I need for each SQM?
For tiles:
Tile Size | PCS/SQM |
600 x 600 mm | 3 PCS |
500 x 500 mm | 4 .2 PCS |
400 x 400 mm | 6.5 PCS |
For decking boards:
Each SQM needs 4-5 pcs of pedestal for standard installation.
2.Are we factory?
We have 5000 sqm factory located in Nansha distract, Guangzhou city, Guangdong province.
In addition,We expanded our factory to 7000 sqm to accommodate the new pedestal producing line last years.
If you can come , that will be welcome.
3.How long is the lead-time for one 20' container
Generally, it will take us 2 weeks to produce.
4.Is sample free?
Free sample can be sent and buyer afford the express charge first. Of couser, it is no doubt the charge will be returned in the first order
