Product Details
| Place of Origin | Zhejiang, China | Brand Name | Saip | |
| Model Number | MFR 012 | Usage | Industrial | |
| Theory | Hygrometer |
Standard export package
Product Description
Specifications
mechanical humidistat1.Adjustable relative humidity
2.Simple to accessible
3.High switching performance
4.OEM, CE&RoHS

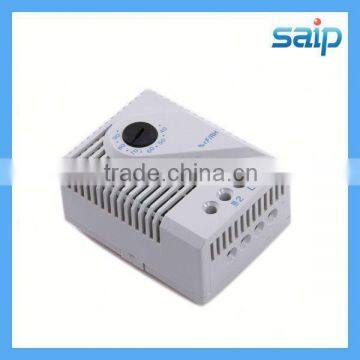

2013 New Type Mechanical Humidistat
Introduction for Mechanical Humidistat :
Hygrostat switches on the heater or fan when a pre-set relative humidity in the enclosure is exceeded.
The relative humidity is raised above the dew point, and condensation on electrical equipment is avoided option for vertical or horizontal mounting.
The electromechanical hygrostat MRF 012 is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.
Mechanical Humidistat Advantage:
1.Adjustable relative humidity
2.Change-over contact
3.High switching capacity
4.Easily accessible terminals
5.Clip fixing
Mechanical Humidistat Technical Date:he
Switch difference | 4% RH (±3% tolerance) |
Permissible air velocity | 15m/sec |
Contact type | change-over contact |
Contact resistance | < 10mOhm |
Service life | > 100 000 cycles |
Min. switching capacity | 20V AC/DC 100 mA |
Max. switching capacity | 250 VAC, 5 (1) A |
DC 20W | |
EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection | 3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting | clip for 35mm DIN rail, EN50022 |
Casing | plastic according to UL94 V-0, light grey |
Dimensions/ weight | 67 x 50 x 38mm approx. 60g |
Fitting position | variable |
Operarting/Storage temperature | 0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F) |
Protection type | IP20 |
Mechanical Humidistat
Mechanical Humidistat Product Details:
t
Example of Mechanical Humidistat Connection:
Mechanical Humidistat
