Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Other, Double-screw, Double-screw | |
| Automatic Grade | full automatic | Place of Origin | Guangdong, China | |
| Brand Name | Ztech | Model Number | ZT160-7T | |
| Voltage | 380V, 380V, 50HZ, 3 PHASES | Power(W) | 163KW | |
| Dimension(L*W*H) | 8000*6500*2800mm | Weight | 8000KG | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ztech Plastic Machinery Manufacturing Co.,Ltd.

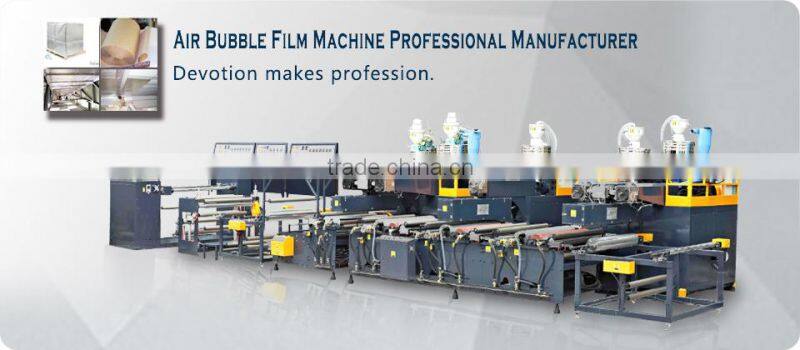

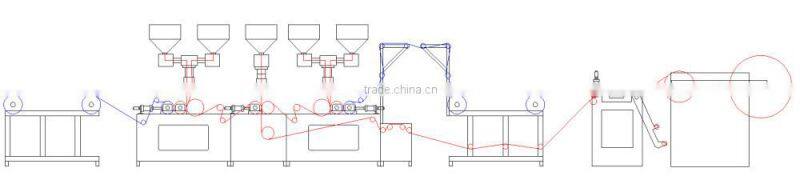

Co-extrusion 7 layers Full-auto PE Air Bubble Film Making Laminated Machine

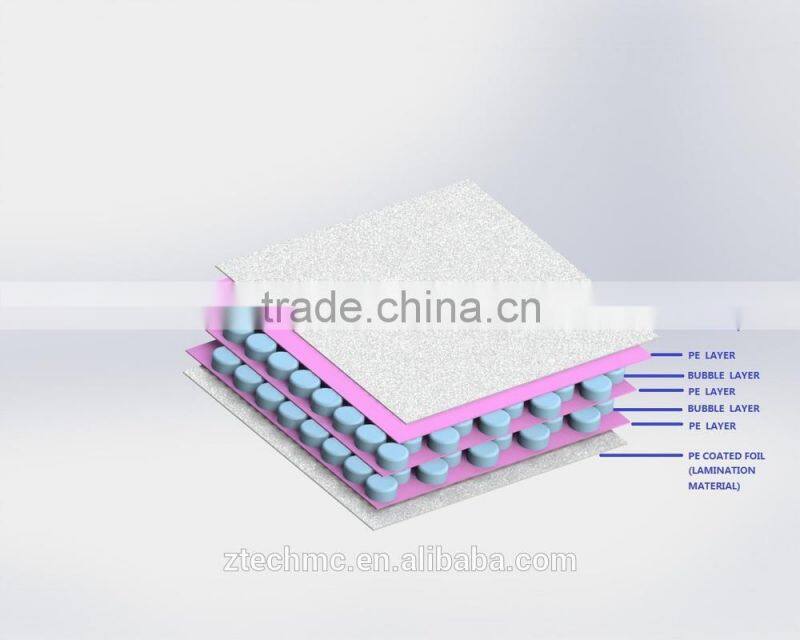

Bubble Sample
Name: 7 Layers PE Air Bubble Film Lamination Machinery
Model: Twin-Screw Design
Feature: Produces two layers or three layers air bubble film or five layer air bubble film. Each layer can be separately controlled and with different material and different formula and color. In-line Lamination bubble film with PE coated material (PE coated Aluminum Foil, PE coated Kraft Paper, EPE Foam, PE Film etc.)
Co-extrusion 7 layers Full-auto PE Air Bubble Film Making Laminated Machine
Specifications |
|
Model | ZT160-7T |
Layer | 7 |
Material | LDPE/LLDPE/ Recycle Material |
Finish Film Width(mm) | 1600 |
Line Speed(m/hr) | 800-1800 |
Capacity(kg/hr) | 185-280 |
Thickness (gram/square meter) | 2 layers: 25g/sm-300g/sm |
Extruder 1 Screw Diameter(mm) | Φ65mm/ |
Extruder 2 Screw Diameter(mm) | Φ55mm |
Extruder 3 Screw Diameter(mm) | Φ65mm/ |
Extruder 1 Motor Power(kW) | 18.5kw/ 18.5kw |
Extruder 2 Motor Power(kW) | 11 |
Extruder 3 Motor Power(kW) | 18.5kw/ 18.5kw |
Total Power(kW) | 303 |
Consumption Power(kW) | 92 |
Weight(kg) | 16200 |
Package
About us
Ztech Plastic Machinery Manufacturing Co., Ltd. focusing on design, R&D, production, sales and service of high quality air bubble film machines. Ztech locates in Lunjiao Town, Shunde district, Foshan City, Guangdong Province, an industrial town for the manufacture of plastic machinery and also known for its leading-edge research and development town.
The main products of Ztech are that 2 Layers PE Air Bubble Film Machinery, 3 Layers PE Air Bubble Film Machinery, 5 Layers PE Air Bubble Film Lamination Machinery, 7 Layers PE Air Bubble Film Lamination Machinery, kraft bubble envelope machine, air bubble film (PE foam sheet bag making machine) etc.
