2014 Electric Thermal Actuator Cold Thermostat Switch (SP7000)

Standard Export Packing

Specifications

2014 Electric Thermal Actuator Cold Thermostat Switch (SP7000)

Cold Thermostat Switch

Electric Thermal Actuator Feature

Use instructions Room thermostat:

Bimetallic room thermostat for heating and air-conditioning installations Thermal, electrical and mechanical features Breaking capacity on opening contact,10A-250V A.C.(ohmic load) Differential: 0.5K.

  Adjustable Mechanical room thermostat SP7000

Temperatures scale adjustment: Adjustable Mechanical room thermostat SP7000

After almost two days from the installation,to obtain a precise scale adjustment, measure the room temperature with a reference thermometer,placed aside the thermostat,holding the shagreened part of the knob,turn the index with a coin, to reach the same value of the thermometer,We suggest to install the equipment at about1.5mt from the floor and far from any heat source.

 Pattern:

 1. Base                              Adjustable Mechanical room thermostat SP7000

2. Cover                              Adjustable Mechanical room thermostat SP7000

3. Cover screw

4. Knob Lockpins,The lock pins for scale limitation

5. are to be derached from the base of the thermostat.They are Located on the fixing holes.

6. Index:The fixing of the room thermostat can be done directly on the wall by screws and nags.

B1-With ntact.

B2-With ntact and ON-OFFswitch

B3-With SPDT contact(change-over)

B4-With change-over contact(SPDT)and ON-OFF switch B7-With normally closed contact on“Winter”and normally open contact on“Summer”plus“Summer-Winter”selector-switch

Important:

 1. Accelerating resistance with voitage to 220-250V a.c.

2. This thermostat is provided with an accelerating resistance which mustbe absolutely connected in order to obtain the regulation's performances.

3. The terminal 4has thus to be connected to the neutral according to the diagram shown on the cover.

4. This connection allows also the working of the pilot lamp which indicates the operation of the heating.

Electric Thermal Actuator Paramaters

Cold Thermostat Switch

Cold Thermostat Switch

 Small Electrical Thermostats

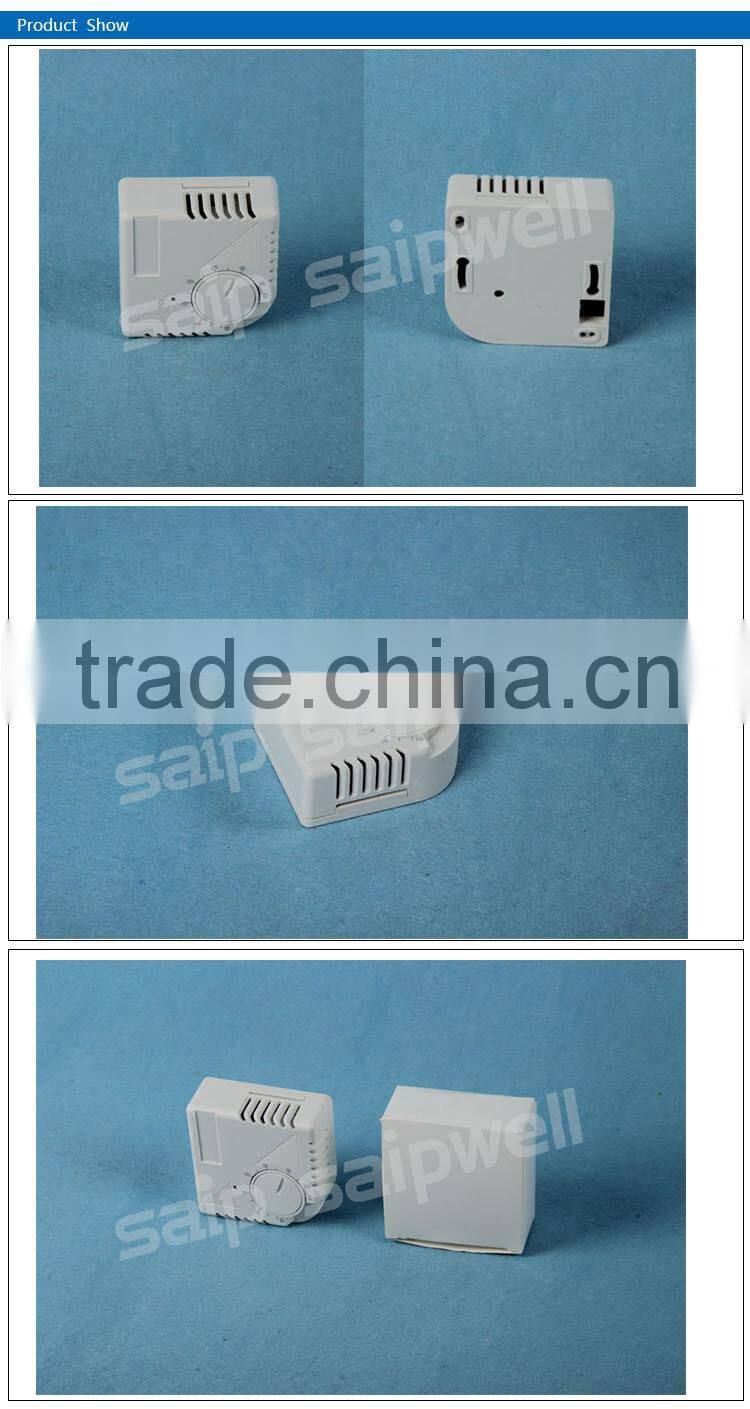

 Constant Temperature Thermostat Show

Cold Thermostat Switch

Cold Thermostat Switch

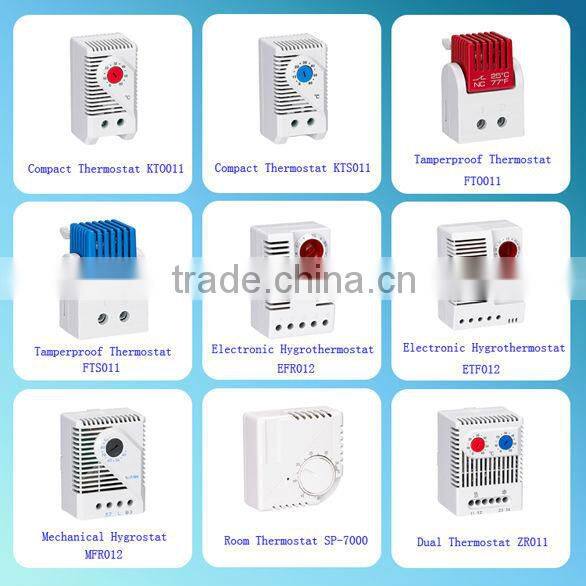

Electric Thermal Actuator Recommend

Cold Thermostat Switch

Cold Thermostat Switch

Certicificate

Cold Thermostat Switch

Cold Thermostat Switch

Saip Company

Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.

Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".

We have 5 specialized branches,over 300 specialized cooperative partners.

Saip,an ISO9001 certificated enterprise.

With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
