new designed 3 to 7 layer air bubble film machine
- 10 Set / Sets per Month
- LELIU PORT RONGQI PORT BEIJIAO PORT
- T/T D/P D/A
You May Like
-
China famous air bubble wrap film making machinery production line
-
China new designed 2 to 7 layer air bubble film machine
-
new design air bubble wrap film making machinery production line
-
China famous new ztech design air bubble film making machine
-
single Screws Automatic Air Bubble Film Machine 2015 foshan ztech
-
Rapid fill air bubble packaging making machine
Product Details
Condition | New | Application | Film | |
Plastic Processed | PE | Screw Design | Single-screw | |
Automatic Grade | Full automatic | Place of Origin | Guangdong, China | |
Brand Name | Ztech | Model Number | ZT200-3S | |
Voltage | 380V, 50HZ, 3 PHASES | Power(W) | 180KW | |
Dimension(L*W*H) | 750cm x 650cm x 280cm | Weight | 9200kg | |
Certification | CE certificate | After-sales Service Provided | Overseas service center available |
Product Description
new designed 3 to 7 layer air bubble film machine
This machine uses LDPE,LLDPE granule material to produce air bubbe film, which widely used as post parcel packing,precise instruments packing funiture packing etc.
Produces two layers(Bubble Layer + PE Layer ) or three layers air bubble film (PE Layer + Bubble Layer + PE Layer ).
This machine is composed of extruder, air bubble forming device, widing device,cabinet control system.
Model | ZT-1800mm | ZT-2000mm | ZT-2500mm | ZT-3000mm |
Screw Diameter | Φ85mm | Φ90mm | Φ110mm | Φ130mm |
Finished film width | 1800mm | 2000mm | 2500mm | 3000mm |
Capacity/output | 128-160kg/hor | 140-178kg/hor | 168-228kg/hor | 190-265kg/hor |
Main Motor Power | 30kw | 30kw | 45kw | 55kw |
Total Power | 170kw | 180kw | 226kw | 260kw |
Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Termo Control Zone | 24 | 24 | 28 | 32 |
Weight | 8900kg | 9200kg | 10800kg | 11500kg |
Power | 380V,3Ph,50Hz | 380V,3Ph,50Hz | 380V,3Ph,50Hz | 380V,3Ph,50Hz |
1. After-sales Service Provided: Engineers available to service machinery overseas
2. Any inquiry will be replied in 24 hours. But if it's weekends or lawful holidays, the reply time will be put off, excepting in an emergency.
new designed 3 to 7 layer air bubble film machine
Export Standard Stretch Film Package.
new designed 3 to 7 layer air bubble film machine
1. The basic information about company.

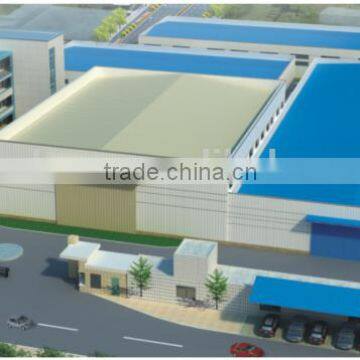

Ztech Plastic Machinery Manufacturing Co., Ltd. is a hi-tech enterprise focusing on the design, research and development, production, sales and service of high quality air bubble film machines and ancillary products. Ztech is located in Lunjiao Town, Shunde district, Foshan City, Guangdong Province, an industrial town well known for the manufacture of plastic machinery and leading edge research and development.
2. What are the main products of the company?
The main products including but not limited to bubble film making machine, air bubble film lamination machine, bag making machine, paper bag making machine, slitting machine, cross cutting machine, plastic recycling machine, bubble envelope machine.
3. Where has the company already sold the products to?
The company has already sold her products to world wide, such as America, Asia, Middle East, Europe, Africa, Australia and so on.
4. Certification.
new designed 3 to 7 layer air bubble film machine
1. Does your company has own factory?
Yes, we have.
2. How many certifications do you get, and what are they?
CE
3. How to pay?
T/T 30% with the order, 70% before the shipment
4. How many days is the term of delivery?
40 days.
5. package.
Export Standard Stretch Film Package.
