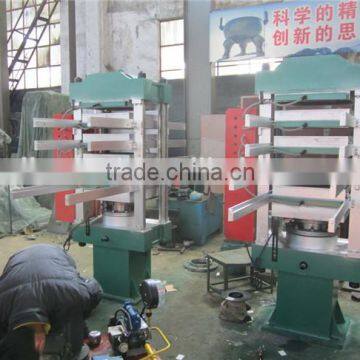

Xlb-500 Rubber Brick Molding Machine
- Qingdao port
- T/T
You May Like
-
2016 New Rubber Floor Tile Making Machine
-
Low Energy Consumption Rubber Tile Making Machine
-
New Price Rubber Tile Press Machine / Rubber Floor Making Machine / Rubber Mat Manufacturing Machine
-
Color Rubber Floor Tile Making Vulcanizing Press Machine
-
Outdoor Rubber Tiles Making Line Rubber Floor Vulcanizing Plant Rubber Tiles Making Machine
-
Hydraulic Rubber Ground Tile Press / Rubber Mat Vulcanizer/rubber Bricks Making Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | JRQ | Model Number | 550*550 or customized | |
| Voltage | 220~600V or customized | Power(W) | 2.2KW or customized | |
| Dimension(L*W*H) | 550*550 | Weight | 1000~5000KG | |
| Certification | ISO9001 and CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
rubber tile making machine
TUV ISO CERTIFICATE
Rubber tile vulcanizing press is used to press the rubber tiles and rubber mats, it is good for using the recycling rubber.
1. Following is the main processes:
nching: Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4- 6 minutes ( because the adhesive is easy to cure, so stir it when use ).
2. Weighing raw materials: weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
3. Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
4. Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
2. Main data:
| Total pressure | 50 Ton |
| Hot plate size size | 550*550 |
| Number of working layer | 4 |
| Piston diameter (mm) | 200 |
| Stroke of piston (mm) | 600 |
| Distance between hot plate (mm) | 125 |
| Unit area pressure of hot plate (Mpa) | 2 |
| Power (KW) | 2.2+18 |
| Voltage | 380v 50hz |
| Heating mode | Electrical mode |
| Working temperature | 200 |
| Overall size (L*W*H) (mm) | 1800*550*2100 |
| Weight (kg) | 1700 |
| Control mode | automatic |
| Close mould speed (mm/s) | ≥12 |
| Open mould speed (mm/s) | ≥12 |
| Working oil pressure | 160 Mpa |
