ZT-2000mm Automatic PE Air Bubble Wrap Film making Machine(Single-screw design)
- 10 Set / Sets per Month
- LELIU PORT RONGQI PORT BEIJIAO PORT
- T/T D/P D/A
You May Like
-
Well done - Automatic PE Air Bubble Wrap Film making Machine
-
3 layers air bubble film machine production line 2016
-
CE certificate machinery for making 3 layers air bubble wrap film
-
Well done - Automatic ZT-2500mm machinery for making air bubble wrap film
-
manufacturer 3 layers protective packing air bubble film making machine
-
Automatic machinery for making bubble fim with 1900mm-2500mm width
Product Details
Condition | New | Application | Film | |
Plastic Processed | PE | Screw Design | Single-screw | |
Automatic Grade | Full automatic | Place of Origin | Guangdong, China | |
Brand Name | Ztech | Model Number | ZT200-3S | |
Voltage | 380V, 50HZ, 3 PHASES | Power(W) | 180KW | |
Dimension(L*W*H) | 750cm x 650cm x 280cm | Weight | 9200kg | |
Certification | CE certificate | After-sales Service Provided | Overseas service center available |
Product Description

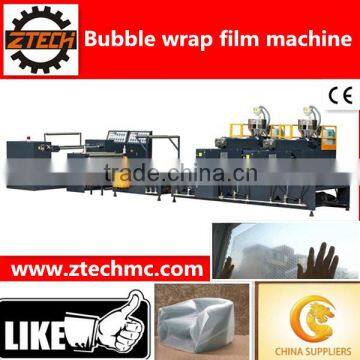

ZT-2000mm Automatic PE Air Bubble Wrap Film making Machine(Single-screw design)
This machine uses LDPE,LLDPE granule material to produce air bubbe film, which widely used as post parcel packing,precise instruments packing funiture packing etc.
Produces two layers(Bubble Layer + PE Layer ) or three layers air bubble film (PE Layer + Bubble Layer + PE Layer ).
This machine is composed of extruder, air bubble forming device, widing device,cabinet control system.
Model | ZT-1800mm | ZT-2000mm | ZT-2500mm | ZT-3000mm |
Screw Diameter | Φ85mm | Φ90mm | Φ110mm | Φ130mm |
Finished film width | 1800mm | 2000mm | 2500mm | 3000mm |
Capacity/output | 128-160kg/hor | 140-178kg/hor | 168-228kg/hor | 190-265kg/hor |
Main Motor Power | 30kw | 30kw | 45kw | 55kw |
Total Power | 170kw | 180kw | 226kw | 260kw |
Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Termo Control Zone | 24 | 24 | 28 | 32 |
Weight | 8900kg | 9200kg | 10800kg | 11500kg |
Power | 380V,3Ph,50Hz | 380V,3Ph,50Hz | 380V,3Ph,50Hz | 380V,3Ph,50Hz |
1. After-sales Service Provided: Engineers available to service machinery overseas
2. Any inquiry will be replied in 24 hours. But if it's weekends or lawful holidays, the reply time will be put off, excepting in an emergency.
ZT-2000mm Automatic PE Air Bubble Wrap Film making Machine(Single-screw design)
Export Standard Stretch Film Package.
ZT-2000mm Automatic PE Air Bubble Wrap Film making Machine(Single-screw design)
1. The basic information about company.
Ztech Plastic Machinery Manufacturing Co., Ltd. is a hi-tech enterprise focusing on the design, research and development, production, sales and service of high quality air bubble film machines and ancillary products. Ztech is located in Lunjiao Town, Shunde district, Foshan City, Guangdong Province, an industrial town well known for the manufacture of plastic machinery and leading edge research and development.
2. What are the main products of the company?
The main products including but not limited to bubble film making machine, air bubble film lamination machine, bag making machine, paper bag making machine, slitting machine, cross cutting machine, plastic recycling machine, bubble envelope machine.
3. Where has the company already sold the products to?
The company has already sold her products to world wide, such as America, Asia, Middle East, Europe, Africa, Australia and so on.
4. Certification.
ZT-2000mm Automatic PE Air Bubble Wrap Film making Machine(Single-screw design)
1. Does your company has own factory?
Yes, we have.
2. How many certifications do you get, and what are they?
CE
3. How to pay?
T/T 30% with the order, 70% before the shipment
4. How many days is the term of delivery?
40 days.
5. package.
Export Standard Stretch Film Package.
