IP66 Waterproof Membrane Pressure Compensation Outdoor Device (DA 284)

standard export package

Specifications

SAIP MEANING:  outdoor device

A global quality electric organization

In order to obtain the highest quality all of

Products according to international IEC normative.

SAIP VISION:    outdoor device

To be an enterprise lasting 103 years and beyond

To be an enterprise with a network of 20000 sales personnel and 2000 design engineers

To be the choice brand manager of major worldwide electrical brands

SAIP MISSION: To create products that deliver happiness to everyone

SAIP BUSINESS PRINCIPLE: To conduct business in a simple straightforward manner.

SAIP WORKING PRINCIPLE: To work and live happily

IP66 Waterproof Membrane Pressure Compensation Outdoor Device (DA 284)

  outdoor device

Product Features:

1. High degree of protection

2. Easy to install

3. Waterproof membrance

4. Pressure differentials in enclosures with a high degree of protection are a result of internal and external temperature changes. In the case of negative pressure or partical vacuum, dust and humidity can enter the enclosure through the door seal. When the air inside the enclosure cools down, condensation may occur because the humidity cannot escape the enclosure. The easy-to-install pressure compensation device DA 284 provides compensation of pressure at a protection degree of IP66. Even with a slight overpressure, a waterproof membrane inside the plug allows the humidity to escape whilst blocking water and dirt from entering the enclosure.

Technical Data:        outdoor device

Installation: Make cut-out +0.5mm in enclosure wall and mount pressure compensation device with nut. Please

make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure

compensation we recommend to use two devices on opposite sides towards the top of the enclosure.

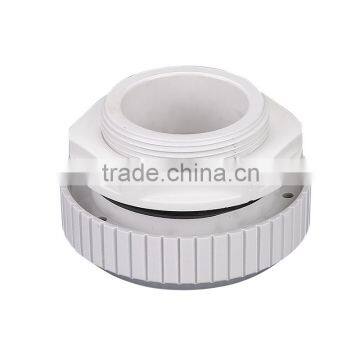

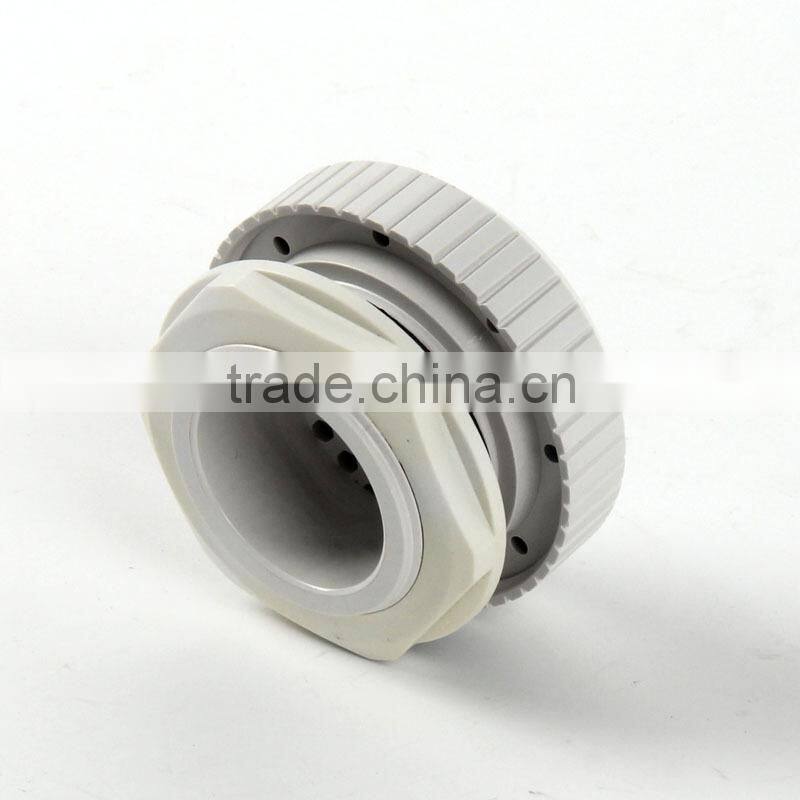

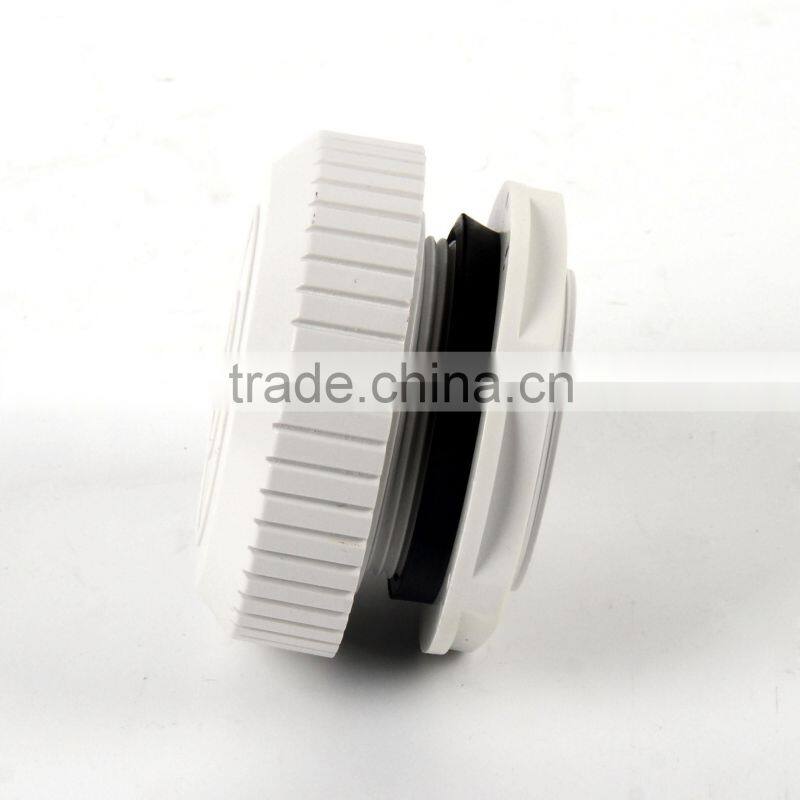

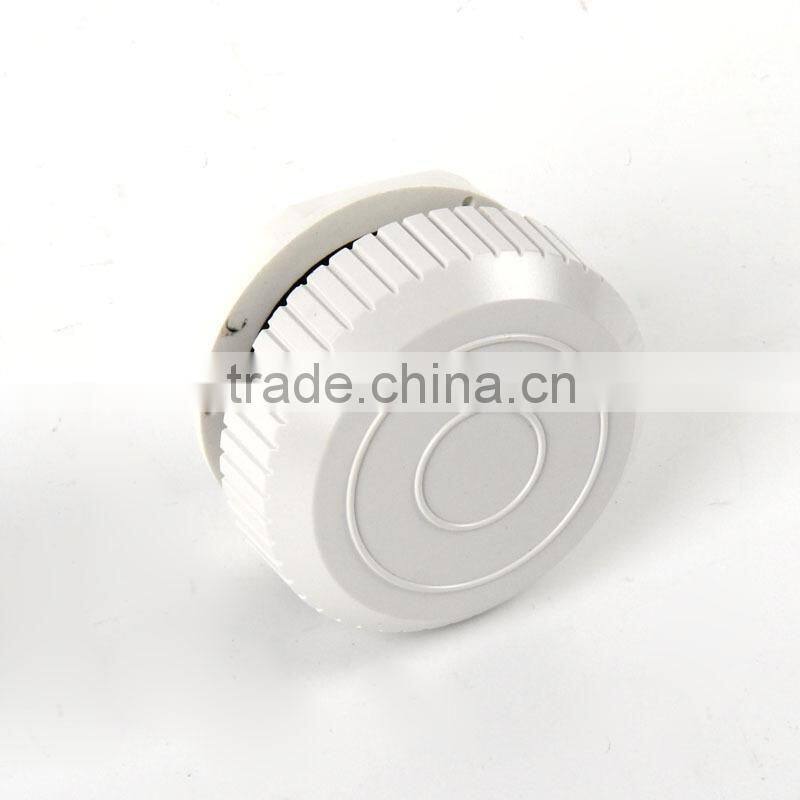

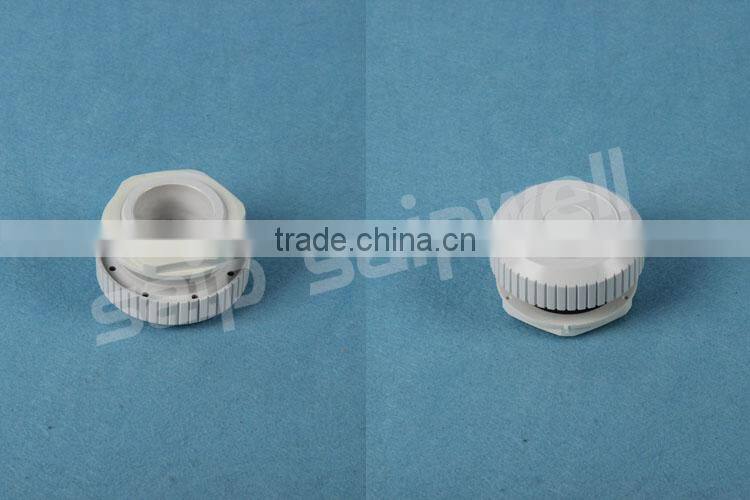

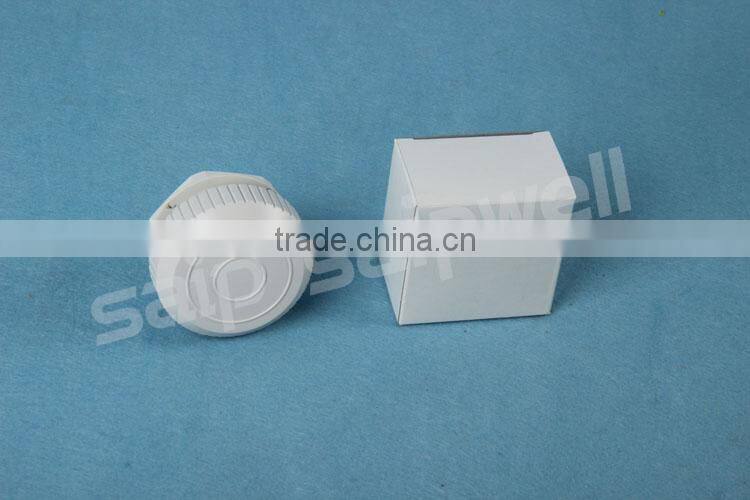

Product Pictures:

About Our Saip:

Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.

Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".

We have 5 specialized branches,over 300 specialized cooperative partners.

Saip,an ISO9001 certificated enterprise.

With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.

Our Service:

1.Reply inquiry in 24 hours.

2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3.Answer your question detailed

4.Solved the problem with you during using our products

5.Samples will be offered to you for our future cooperation.

we can provide you good quality product and best service .

we can design the product as your demmand and we also have other type of pressure compensation device for you to choose.
