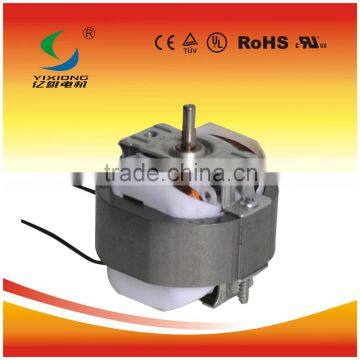

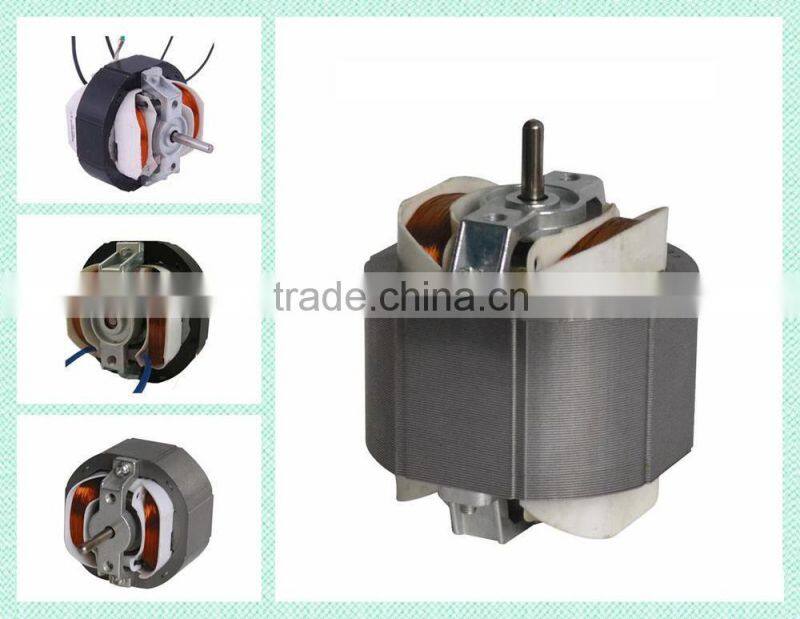

High Speed Exhaust Fan Motor

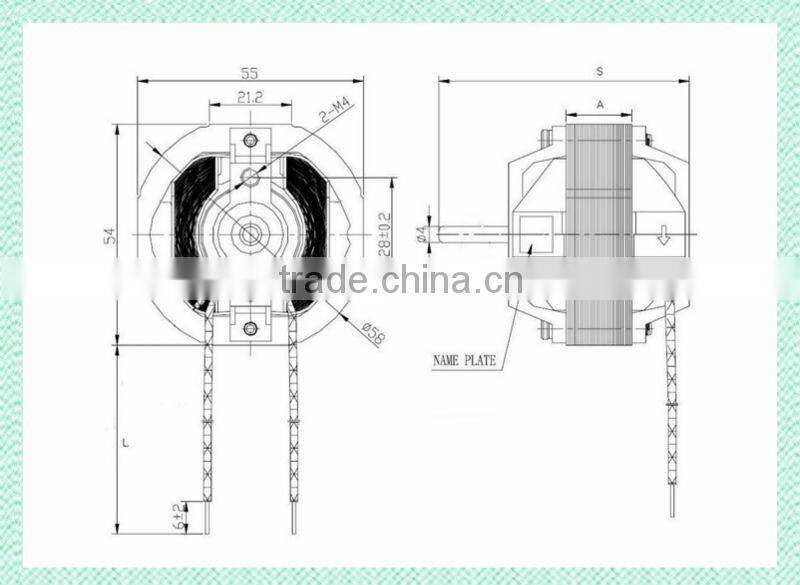

Drawing

Technology Data

1. Voltage: 110-240V AC, 50/60Hz, or  110/220V 50Hz

2. Pole Number: 2 Pole

3. Rotation: CW or CCW

4. Class Insulation: A, E, B, F

5. peed No.1, 2 and 3 speed

6.Bearing:Sliding bearing and Ball bearing are both available

7. Motor size:  55x58x10mm,55x58x12mm,55x58x16mm,55x58x20mm,55x58x25mm,55x58x30mm,  55x58x35mm

8. Shaft Dia: 4mm,  shaft length :as you request

9. Performance, it is adjust as your request

10. Exotherm :≤50k

11.Insulation resistance:cold≥50mΩ,hot≥20mΩ

12.Voltage resistance:1500V/0.5mA/min

Appliance

 1. Most used in small household, like microwave oven, freezer, small oven, heater fan, ventilation fan, desk fan, exhaust fan, etc.

 2. Some time, it was used in some machinary, like medical equipment,  agricultural machinery,  etc

Certificate

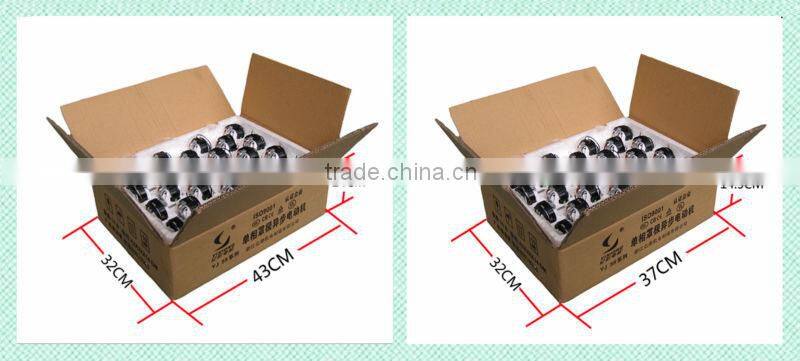

1.50pcs per carton

 2.Carton was made by double wall corrugated board

 3.Inner is Plastic foam bow and film

1. Microwave oven motor can be designed and produced as your requst,mean ODM can be done in our factory

2. Microwave oven motor can show your Brand, mean, we accept OEM order

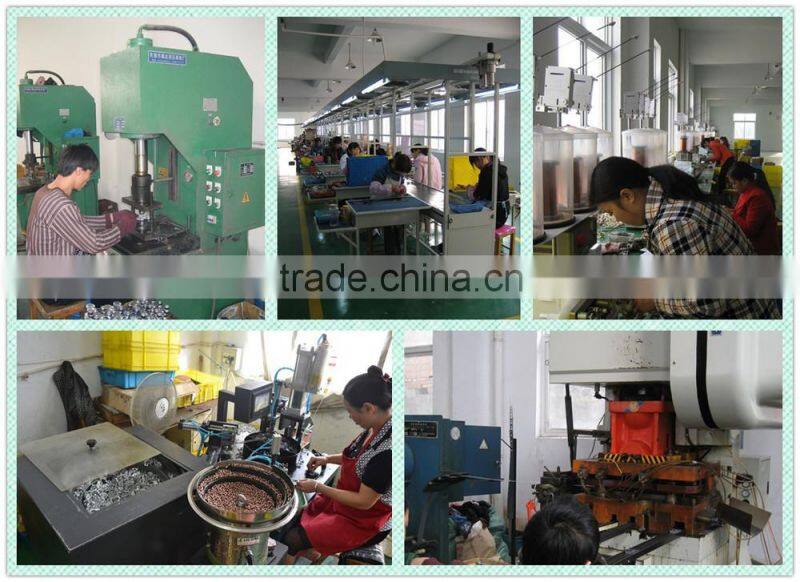

 Production

Quality control
