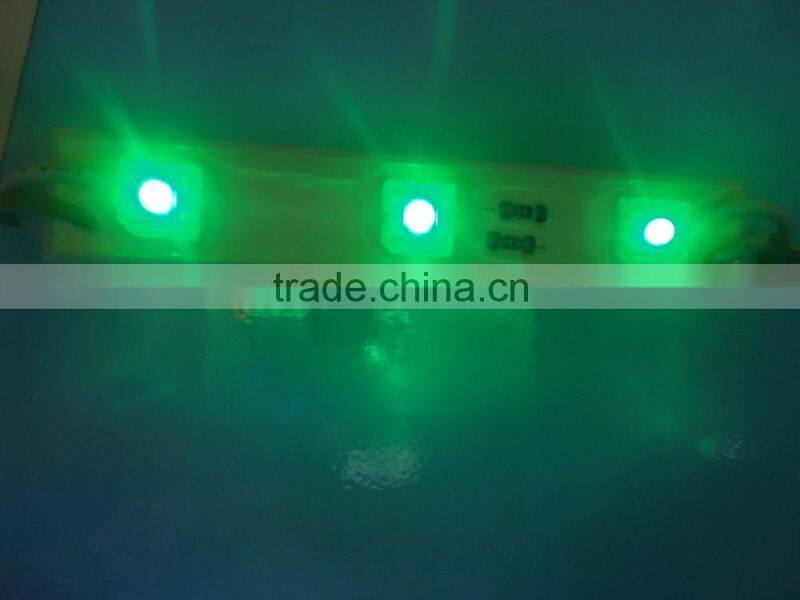

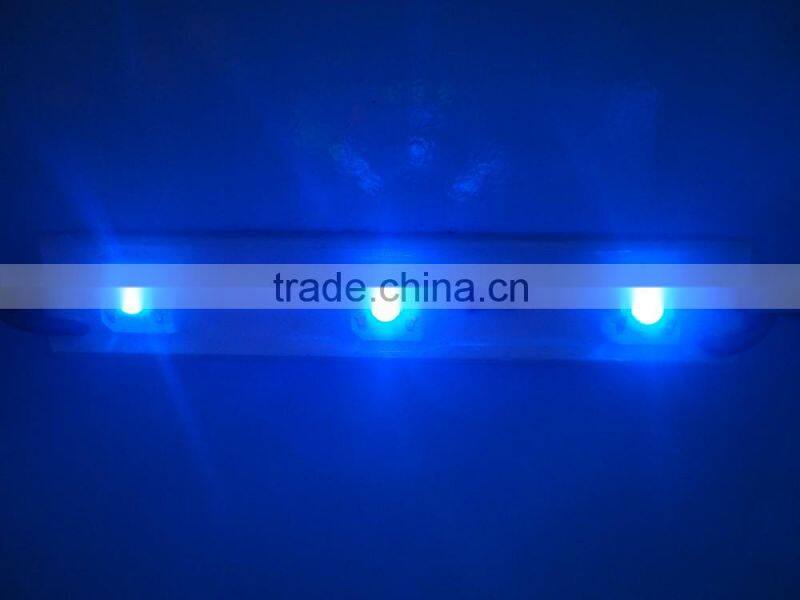

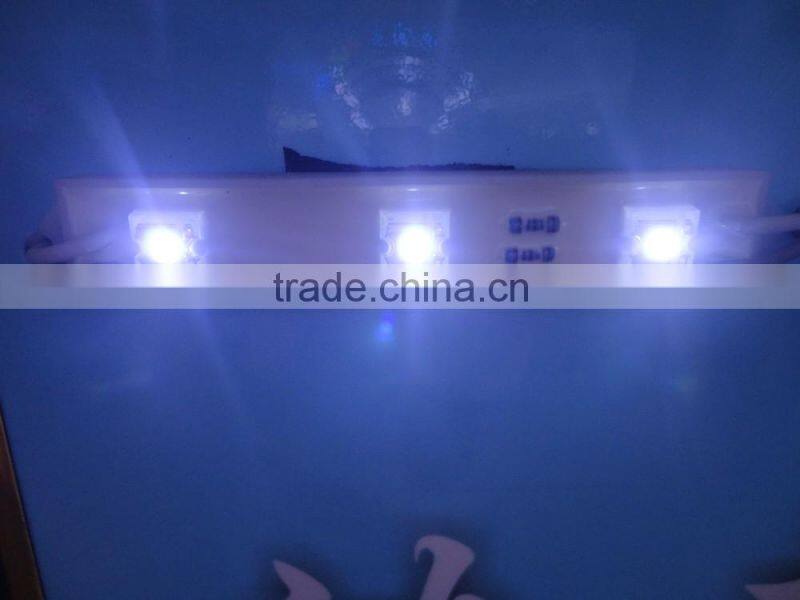

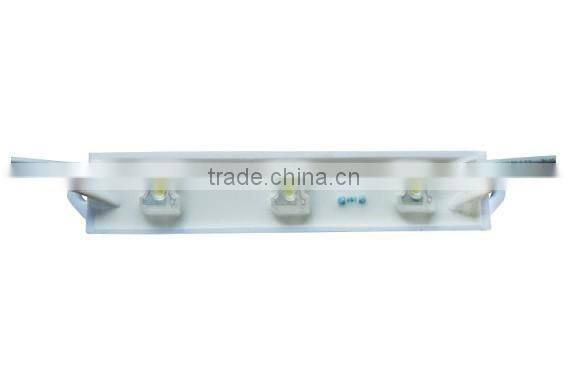

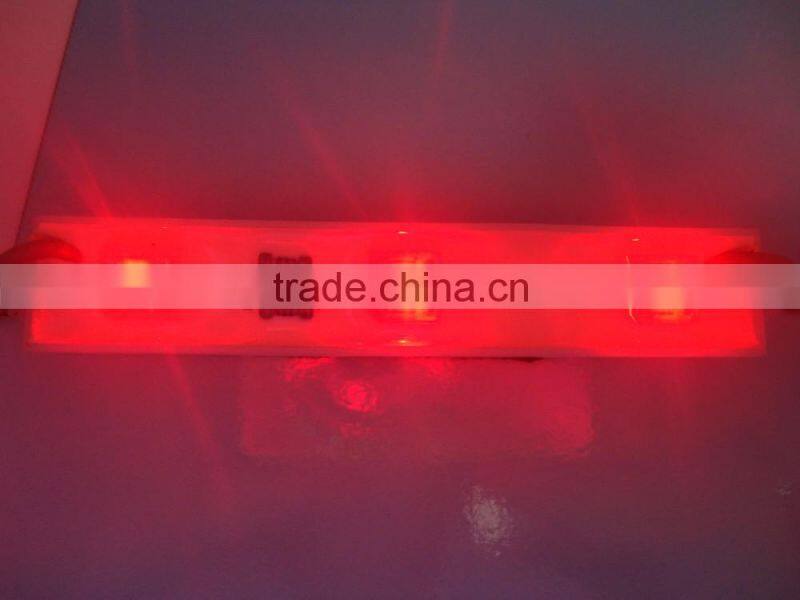

Waterproof Superflux Led Module

HTD-753F3 piranha led module  3 light LED Module:

Waterproof 3 piranha led module with Welding and Faucet Connections, Available in Various Colors.
1. Material: polyester
2. Led type: super flux
3. Led quantity: 3 pieces
4. Input voltage: 12V DC
5. Power consumption: 0.48W
6. Optional emitting color: red, green, yellow, blue, and white
7. Large viewing angle: 90°-120°
8. Protection grade: IP65
9. Dimensions: 98 x 15mm
10. Length and LED quantity can be changed
11. Shapes: round, rectangle and square
12. Long lifespan
13. Low heat and high brightness
14. Works well under harsh conditions
15. Two kinds of connection: welding and faucet
16. Customized specifications are welcome

Caution:

1. Applicable Voltage: DC12V.

2. Operating temperature: -30°C ~ +50°C.

3. The power voltage is permitted in +10%~-10% fluctuating. If it’s beyond the said scope, it would influence lifespan, even unlighted or burnt out.

4. Make sure connecting wire is connected and sealed well to avoid defending Electricity Leakage.

5. Make sure waterproof protection, and no defending Water leakage before connecting to extra power supply.

6. Before maintenance, make sure the power cut off. After assembling right, it can be connected power to use.

7. No breaking to any stipulation of fireproofing. Please ask Professional to install.

Applications:

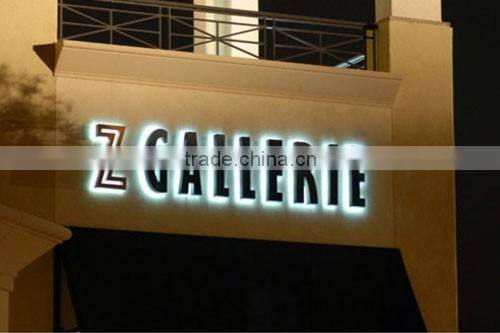

1. Channel letters backlighting
2. Landscape outlines
3. Signal lighting
4. Advertisement signs backlighting
5. Advertisement light boxes and billboards backlighting
