ce rohs smd 3 led module flexible led module

High power LED module IP 66 160 beam

What is the details of our led module?

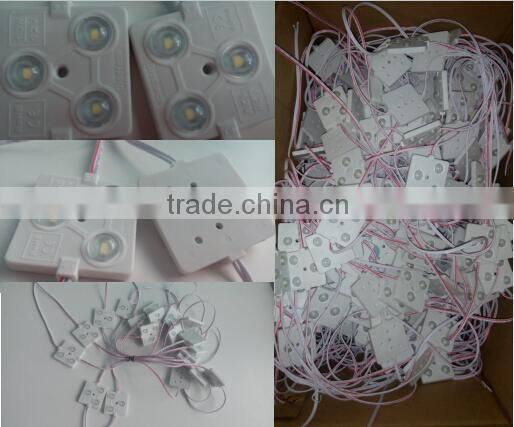

HTD-48 is by injection made from ABS shell,MCPCB and 2 spell line (high temperature resistant,cold resistant,resistant to UV),including 3PCS SAMSUNG LED5630.SMD LED light via optical Lens reach big angle 160° and even no shadow,high brightness more than 120lm/module,low thermal resistance,low light failure,can work well under the harsh environment.HTD-48 mainly used in architectural decoration,lighting,light box and signal for marking backlight.
Warranty is 5 years.











Where is the Application?

a. Widely Used in Household Lighting.

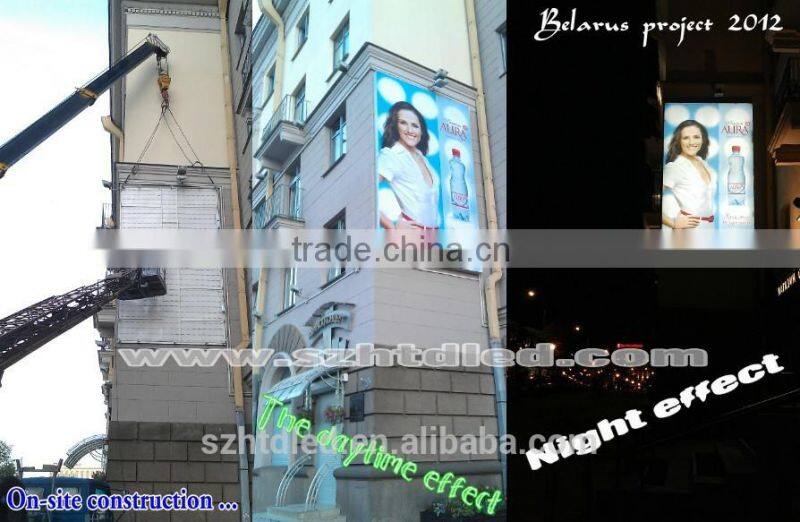

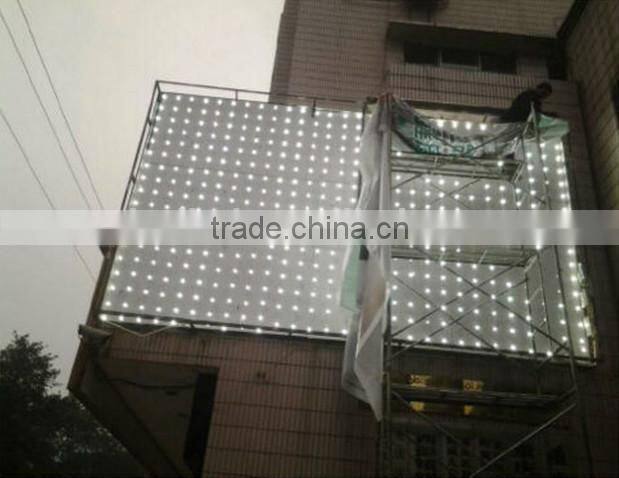

b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. Signal Lamp for Letter Channel.
e. Emergency / rescue signs
f. Edge lighting of transparent diffused materials

Why purchase from HTDLighting??

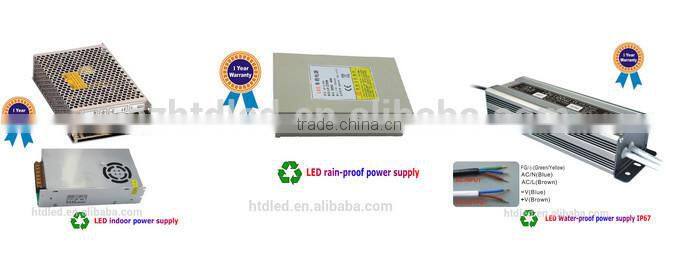

Original technology with Control system,Our Module are 1 years warranty(SMD5050  2 years warranty) . With low current,  LED modules:adopt superior Epistar led chips and Taiwan led chips encapsulation technology; the silica gel covered is Dow Corning Brand from USA;the water proof material is silicone rubber modified epoxy resin which has good heat stability, and bears the weathering and impact toughness better;choose better solder, and automatic placement machine, reflow soldering equipment.The body material is superior PVC;the wire material is silica gel.Modules connect between with tin copper wire, effectively preventing oxidation.The PCB is FR4 glass fiber board. LED Transformer:adpot Nichicon brand electrolytic capacitor from Japan. Life span is up to 50000 hours. ensure high brightness and long lifespan. A full set of document <Quality Wanrranty>, access customers and was unanimously praised!

How much you know about US?

Other hot products

 After Service

Warranty:1 year (SMD5050  2 years warranty)
MOQ:LED Module 20 Pieces

Shipping freight are quoted under your requests

Shipping port: Shenzhen, Mainland China
Payment Term : L/C,D/A,T/T,Western Union,MoneyGram,...

Delivery: 5~10 days after order confirmed(according to actual order quantity)
Shipment Terms:EX-work,UPS,DHL,TNT others express door to door service

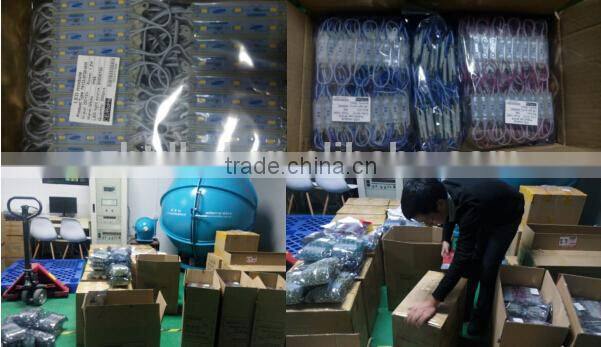

Package information

Pament terms

 Shipping Ways:

We focus  on customer satisfaction and we will providing the best service.

A: Your inquiry will be replied within 2hours.

B:Well-tained and experienced staffs to answer all your doubt by fluent English.

C:We share the latest information of led lighting in Chinese market.

D:We can support varied led lighting source and other led product.

Contact us

Tel:0755-23002430-8009  0755-23002431-8009

Skype : htd1908

Factory address: Tangkeng industrial zone (behind Jisheng hotel) No.57 building B Third Floor Shiyan town,Baoan Shenzhen

Fax:0755-23001713
